Gigabyte GA-A55M-DS2 User Manual

- 6 -

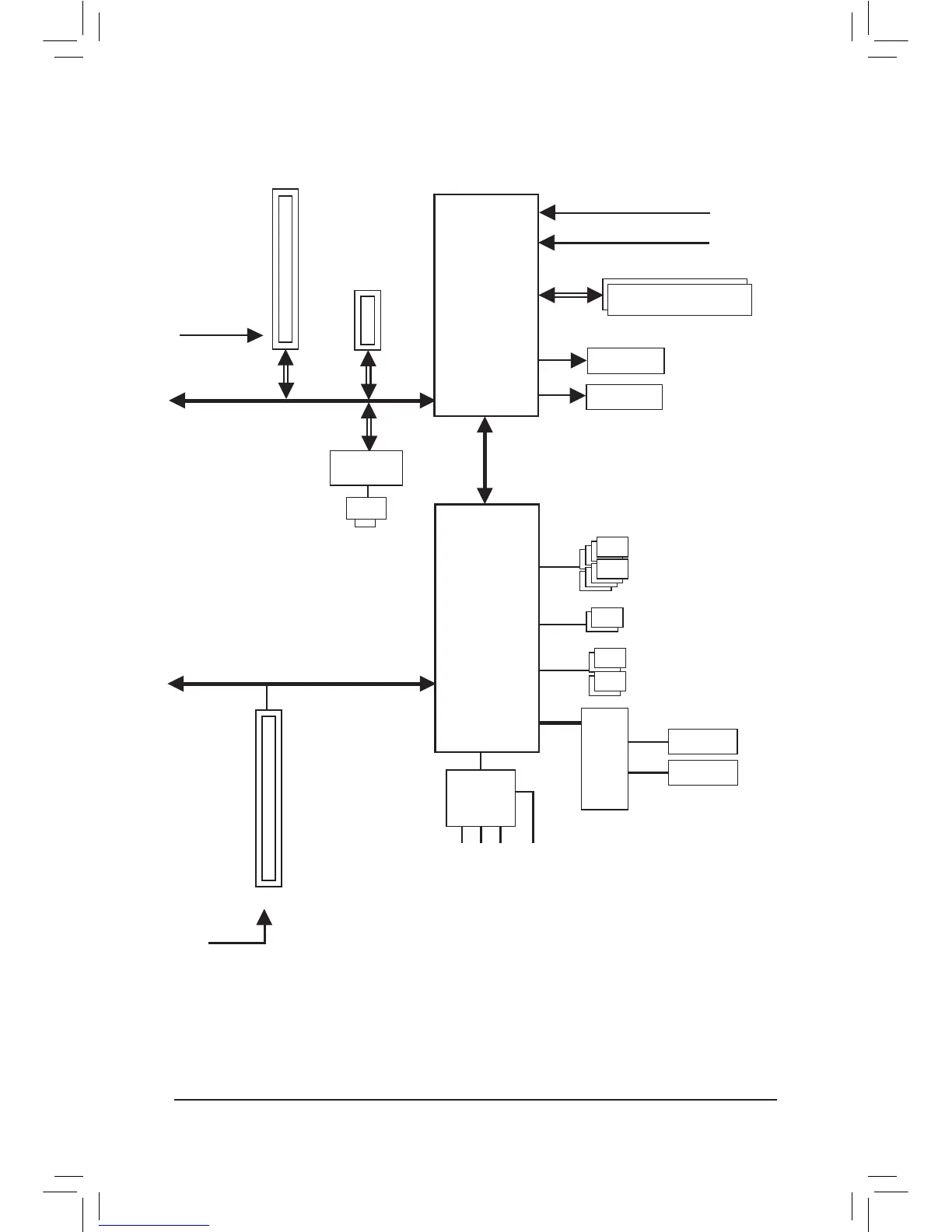

GA-A55M-DS2 Motherboard Block Diagram
UMI
APU CLK+/- (100 MHz)
DDR3 1866/1600/1333/1066 MHz
Dual Channel Memory
PCI Express Bus
PCIe CLK
(100 MHz)
1 PCI Express x16
iTE
IT8728
COM Port
LPC
Bus
1 PCI
PCI Bus
PCI CLK
(33 MHz)
Dual BIOS
PS/2 KB/Mouse
D-Sub
LAN
RJ45
x1
Realtek/Atheros
GbE LAN
x16
8 USB 2.0/1.1
DVI-D
4 SATA 3Gb/s
AMD APU
DISP CLK+/- (100 MHz)
Line Out (Front Speaker Out)
MIC (Center/Subwoofer Speaker Out)
Line In (Rear Speaker Out)
CODEC
S/PDIF Out
AMD A55
x1
1 PCI Express x1

Gigabyte GA-A55M-DS2 Specifications

General

Memory voltage	1.5 V
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	2
Supported memory types	DDR3-SDRAM
Maximum internal memory	32 GB
Supported memory clock speeds	1066, 1333, 1600, 1866 MHz
Supported memory module capacities	16GB, 1GB, 2GB, 4GB, 8GB
Processor socket	Socket FM1
Processor manufacturer	AMD
Compatible processor series	AMD A, AMD E2
Maximum number of SMP processors	1
S/PDIF out connector	Yes
Number of SATA II connectors	4
Number of SATA III connectors	-
Number of Parallel ATA connectors	0
BIOS type	AWARD
ACPI version	1.0b
BIOS memory size	64 Mbit
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Component for	PC
Power source type	ATX
Motherboard chipset	AMD A55
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Compatible operating systems	Microsoft Windows 7/Vista/XP
RAID levels	0, 1, 10, JBOD
Supported storage drive interfaces	SATA II
Parallel processing technology support	Not supported
PCI Express slots version	2.0
Trial software	Norton Internet Security
Ethernet interface type	Gigabit Ethernet

Weight and Dimensions

Depth	174 mm
Width	225 mm
