Gigabyte GA-C1007UN User Manual

- 13 -
Pin No. Denition
1 GND
2 TXP
3 TXN
4 GND
5 RXN
6 RXP
7 GND
Pin No. Denition
1 GND
2 TXP
3 TXN
4 GND
5 RXN
6 RXP
7 GND

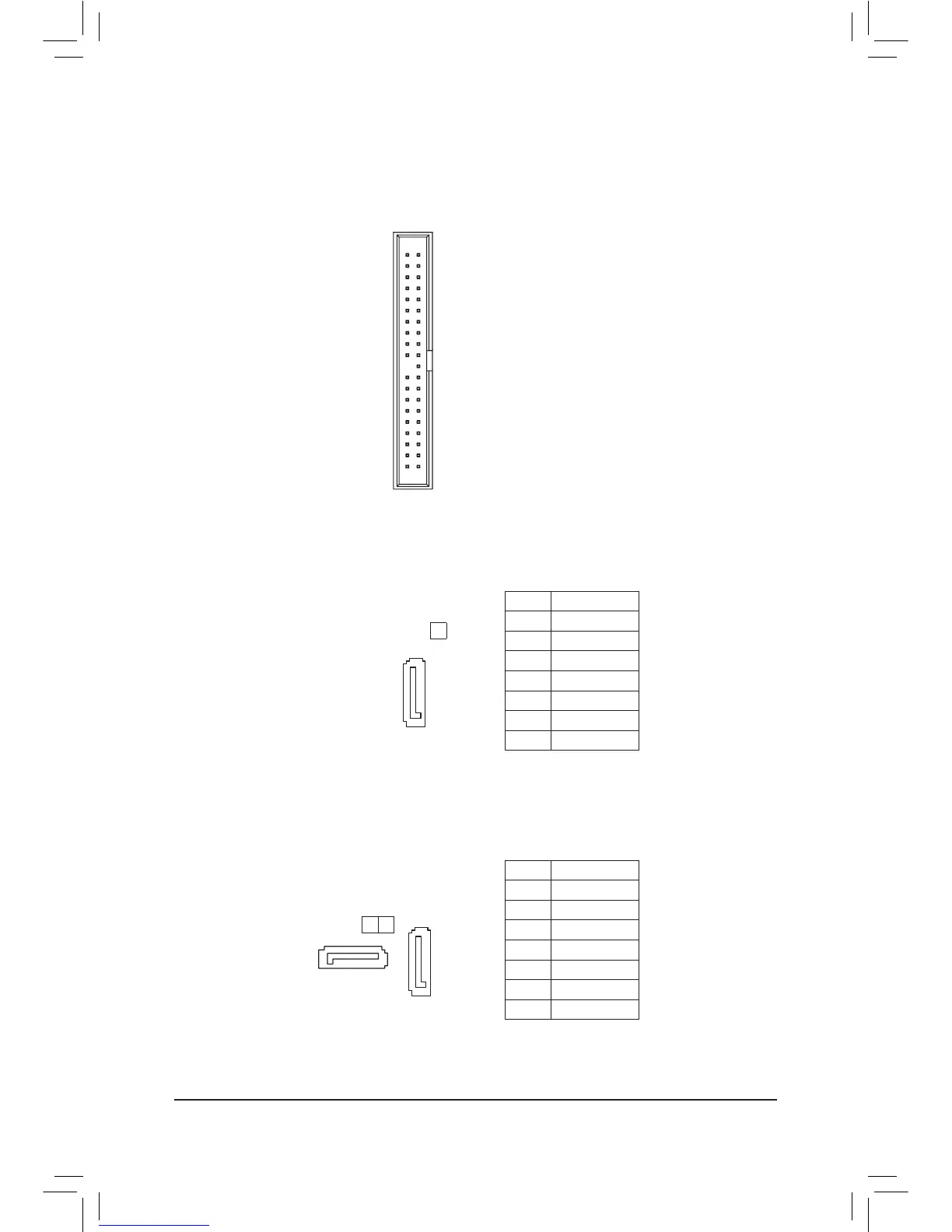

7) SATA2 1/2 (SATA 3Gb/s Connectors, Controlled by Intel NM70 Chipset)
The SATA connectors conform to SATA 3Gb/s standard and are compatible with SATA 1.5Gb/s standard.
Each SATA connector supports a single SATA device.
6) SATA3 0 (SATA 6Gb/s Connector, Controlled by Intel NM70 Chipset)
The SATA connector conforms to SATA 6Gb/s standard and is compatible with SATA 3Gb/s and SATA
1.5Gb/s standard. Each SATA connector supports a single SATA device.
SATA2
1
7
0
SATA3
2 1
DEBUG
PORT
G.QBOFM
1
7
DEBUG
PORT
G.QBOFM
DEBUG
PORT
G.QBOFM
7 1
5) IDE (IDE Connector)j
The IDE connector supports up to two IDE devices such as hard drives and optical drives. Before attaching
the IDE cable, locate the foolproof groove on the connector. If you wish to connect two IDE devices, remember
to set the jumpers and the cabling according to the role of the IDE devices (for example, master or slave).
(Forinformationaboutconguringmaster/slavesettingsfortheIDEdevices,readtheinstructionsfromthe
device manufacturers.)
2
40
1
39
j Only for the GA-C1007UN.
