Gigabyte GA-C1007UN User Manual

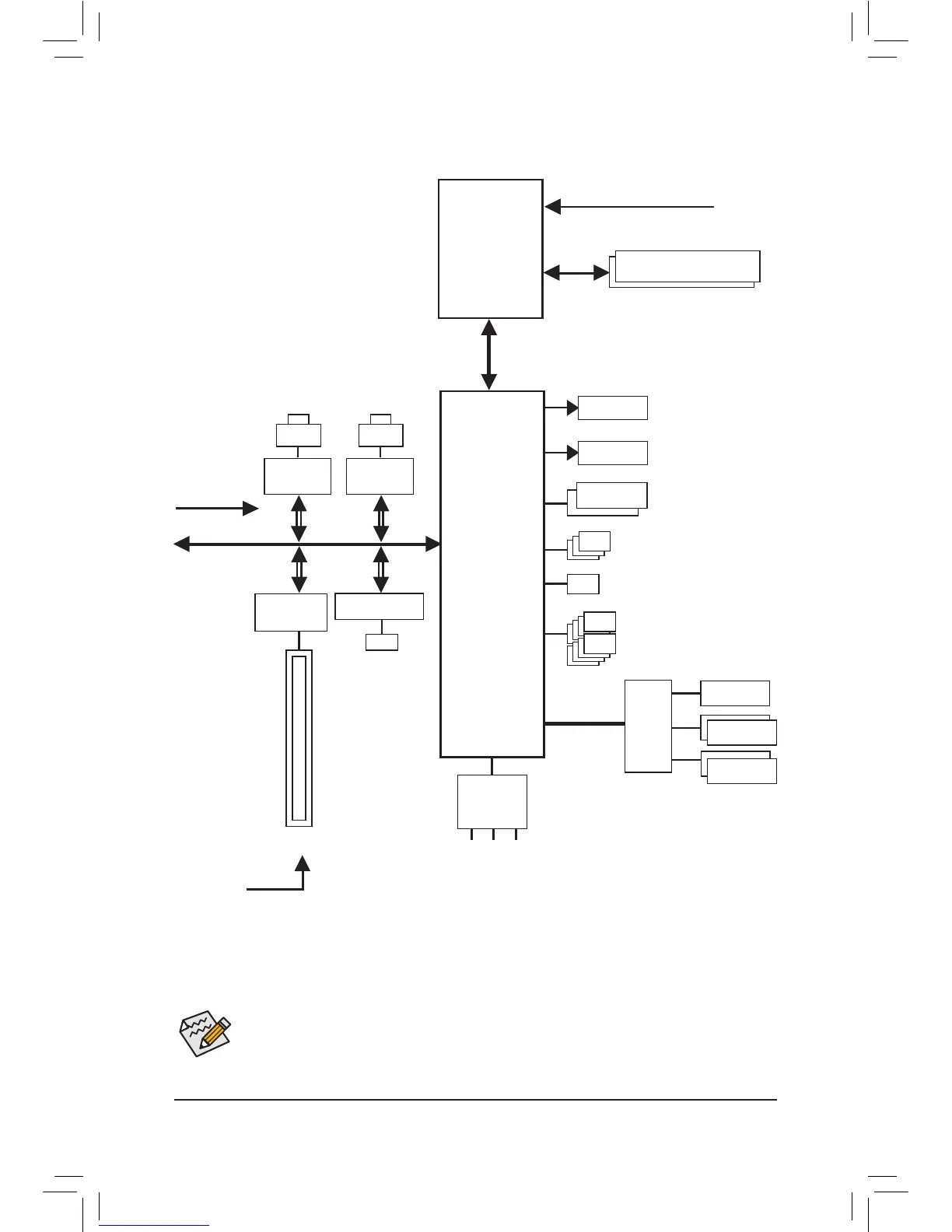

GA-C1007UN/GA-C1007UN-D Motherboard Block Diagram
Fordetailedproductinformation/limitation(s),referto"1-2ProductSpecications."
Line-Out (Front Speaker Out)
MIC (Center/Subwoofer
Speaker Out)
Line-In (Rear Speaker Out)
CODEC
PS/2 KB/Mouse
Intel
®
Celeron
®
1007U CPU
DMI
CPU CLK+/- (100 MHz)
Dual BIOS
DDR3 1333/1066 MHz
Dual Channel Memory
LPC Bus
LPT
Intel
®
NM70
8 USB 2.0/1.1
PCI Express Bus
x1
LAN
RJ45
Realtek
GbE LAN
PCIe CLK
(100 MHz)
COM
iTE
Super
I/O
ATA-133/100/66/33
IDE Channelj
JMicron JMB368j
1 SATA 6Gb/s
x1
x1
LAN
RJ45
Realtek
GbE LAN
D-Sub
HDMI
x1
1 PCI
PCI CLK
(33 MHz)
PCIe to PCI
Bridge
3 SATA 3Gb/s
j Only for the GA-C1007UN.
