Hardware Installation
1-3-2 Installing the APU Cooler
Follow the steps below to correctly install the APU cooler on the motherboard.
Use extreme care when removing the APU cooler because the thermal grease/tape between the APU
cooler and APU may adhere to the APU. Inadequately removing the APU cooler may damage the APU.

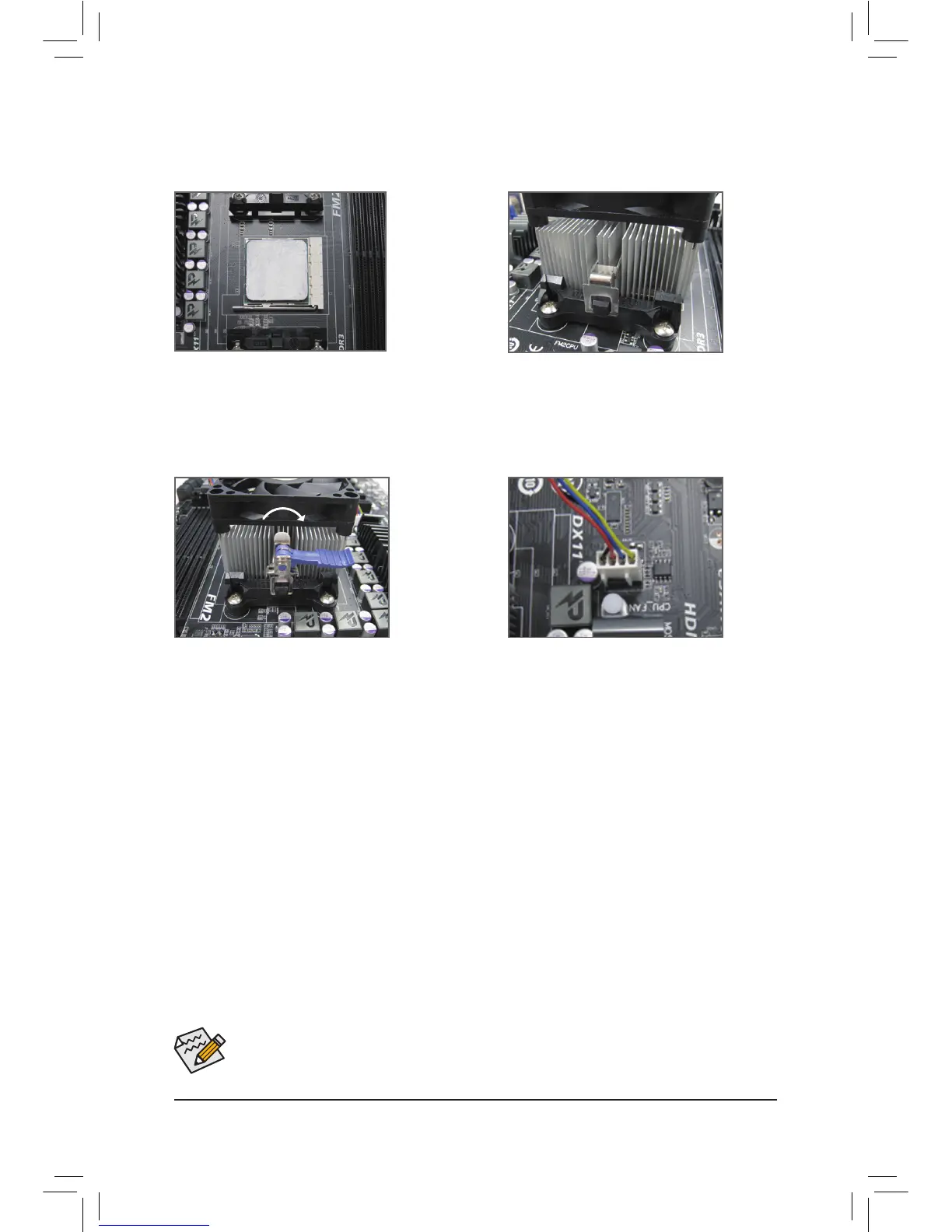

Step 1:
Apply an even and thin layer of thermal grease on
the surface of the installed APU.
Step 2:
Hook the APU cooler clip to the mounting lug on
one side of the retention frame. On the other side,
push straight down on the APU cooler clip to hook
it to the mounting lug on the retention frame.
Step 4:
Finally, attach the power connector of the APU
coolertotheAPUfanheader(CPU_FAN)onthe
motherboard.
Step 3:
Turn the cam handle from the left side to the
rightside(as the picture aboveshows)to lock
intoplace.(RefertoyourAPUcoolerinstallation
manualforinstructionsoninstallingthecooler.)

Gigabyte GA-F2A88XN-WIFI Specifications

General

Memory voltage	1.5 V
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	2
Supported memory types	DDR3-SDRAM
Maximum internal memory	64 GB
Supported memory clock speeds	1333, 1600, 1866, 2133 MHz
Processor socket	Socket FM2+
Processor manufacturer	AMD
Compatible processor series	AMD A
USB 2.0 connectors	1
S/PDIF out connector	Yes
Number of SATA connectors	-
Number of SATA III connectors	4
Number of Parallel ATA connectors	0
HDMI version	1.4a
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Audio chip	Realtek ALC892
Cooling type	Passive
Component for	PC
Power source type	ATX
Motherboard chipset	AMD A88X
PC health monitoring	CPU, FAN, Power supply, Temperature
Audio output channels	7.1 channels
Motherboard form factor	mini ITX
Windows operating systems supported	Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows XP Home, Windows XP Professional
RAID levels	0, 1, 5, 10, JBOD
Supported storage drive interfaces	SATA III
Maximum resolution	4096 x 2160 pixels
Maximum graphics card memory	2048 MB
Bundled software	Norton Internet Security
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Bluetooth version	4.0
Ethernet interface type	Gigabit Ethernet
BIOS type	EFI AMI
ACPI version	2.0a
BIOS memory size	64 Mbit

Weight and Dimensions

Width	170 mm
