Unique Features
5-2 EasyTune 6
GIGABYTE'sEasyTune6isasimpleandeasy-to-useinterface thatallowsuserstone-tune theirsystem
settings or do overclock/overvoltage in Windows environment. The user-friendly EasyTune 6 interface also
includes tabbed pages for CPU and memory information, letting users read their system-related information
without the need to install additional software.

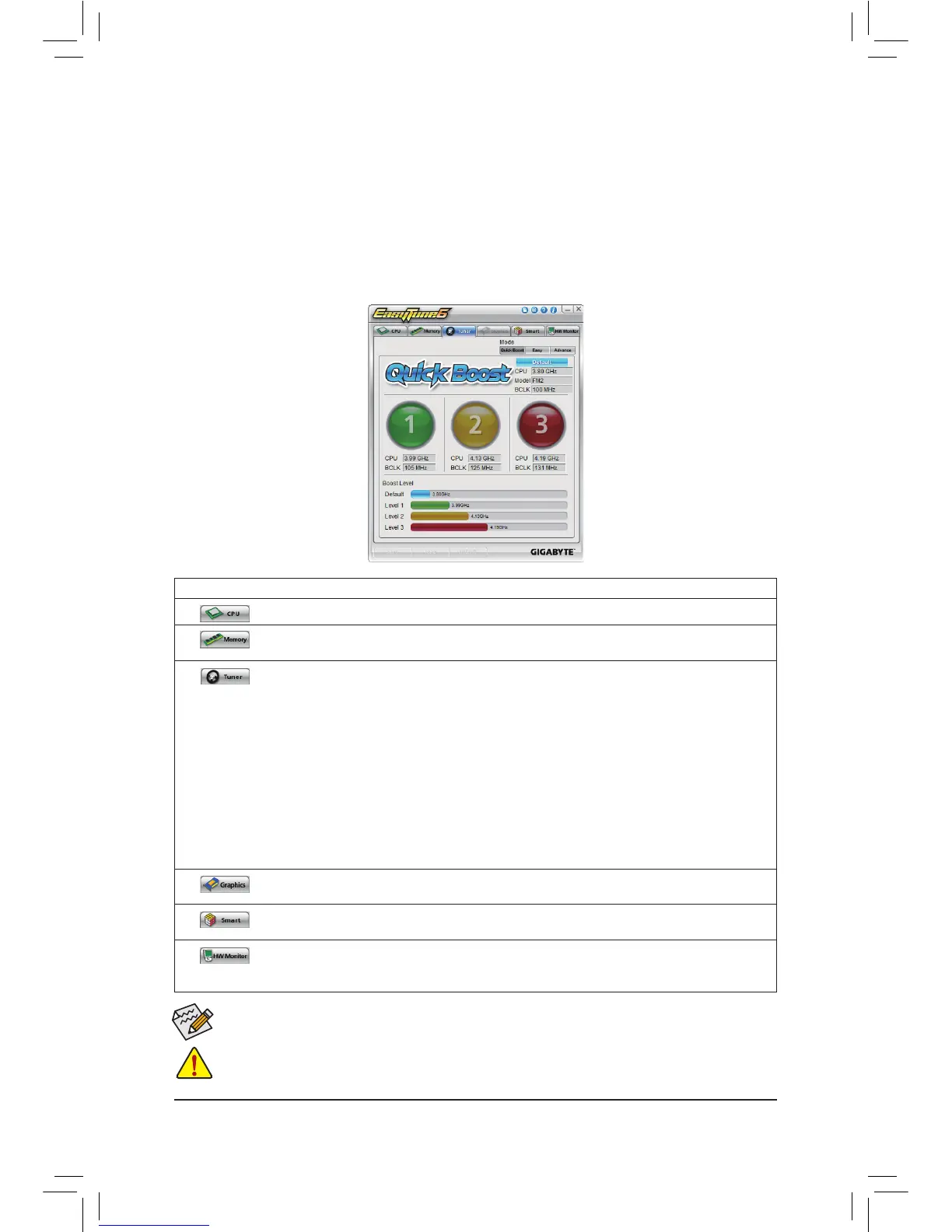

The EasyTune 6 Interface
AvailablefunctionsinEasyTune6maydifferbymotherboardmodel.Grayed-outarea(s)indicatesthattheitemisnot
congurableorthefunctionisnotsupported.
Incorrectly doing overclock/overvoltage may result in damage to the hardware components such as CPU, chipset, and
memory and reduce the useful life of these components. Before you do the overclock/overvoltage, make sure that you
fully know each function of EasyTune 6, or system instability or other unexpected results may occur.
Tabs Information
Tab Description
The CPU tab provides information on the installed CPU and motherboard.
The Memory tabprovidesinformationon the installedmemorymodule(s).Youcanselectmemory
moduleonaspecicslottoseeitsinformation.
The Tuner tab allows you to change memory settings and voltages.
• Quick Boost mode provides you with 3 levels of CPU frequency/base clock to choose to achieve
desired system performance. After making changes in Quick Boost mode or clicking Default to
restore to default values, be sure to restart your system for these changes to take effect.
• Easy mode provides information on CPU/memory.
• Advanced mode allows you to individually change system clock settings and voltages settings
using the sliders.
• Save allowsyoutosavethecurrentsettingstoanewprole(.txtle).
• Load allowsyoutoloadprevioussettingsfromaprole.
After making changes in Easy mode/Advanced mode, be sure to click Set for these changes to
take effect or click Default to restore to default values.
The Graphics tab allows you to change the core clock and memory clock for your AMD or NVIDIA
graphics card.
The Smart tab allows you to specify a Smart Fan mode. Smart Fan Advanced mode allows the fan
speed to be changed linearly based on the temperature thresholds you set.
The HW Monitor tab allows you to monitor hardware temperature, voltage and fan speed and set
temperature/fanspeedalarm.Youcanchoosethealertsoundfromthebuzzeroruseyourownsound
le(.wavle).

Gigabyte GA-F2A88XN-WIFI Specifications

General

Memory voltage	1.5 V
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	2
Supported memory types	DDR3-SDRAM
Maximum internal memory	64 GB
Supported memory clock speeds	1333, 1600, 1866, 2133 MHz
Processor socket	Socket FM2+
Processor manufacturer	AMD
Compatible processor series	AMD A
USB 2.0 connectors	1
S/PDIF out connector	Yes
Number of SATA connectors	-
Number of SATA III connectors	4
Number of Parallel ATA connectors	0
HDMI version	1.4a
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Audio chip	Realtek ALC892
Cooling type	Passive
Component for	PC
Power source type	ATX
Motherboard chipset	AMD A88X
PC health monitoring	CPU, FAN, Power supply, Temperature
Audio output channels	7.1 channels
Motherboard form factor	mini ITX
Windows operating systems supported	Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows XP Home, Windows XP Professional
RAID levels	0, 1, 5, 10, JBOD
Supported storage drive interfaces	SATA III
Maximum resolution	4096 x 2160 pixels
Maximum graphics card memory	2048 MB
Bundled software	Norton Internet Security
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Bluetooth version	4.0
Ethernet interface type	Gigabit Ethernet
BIOS type	EFI AMI
ACPI version	2.0a
BIOS memory size	64 Mbit
