- 18 -GA-K8N Pro Motherboard
English
Before installing the memory modules, adhere to the following warning:
1.When DIMM LED is ON, do not install / remove DIMM from socket.
2.Please note that the DIMM module can only fit in one direction due to
the one notch. Wrong orientation will cause improper installation.
Please change the insert orientation.

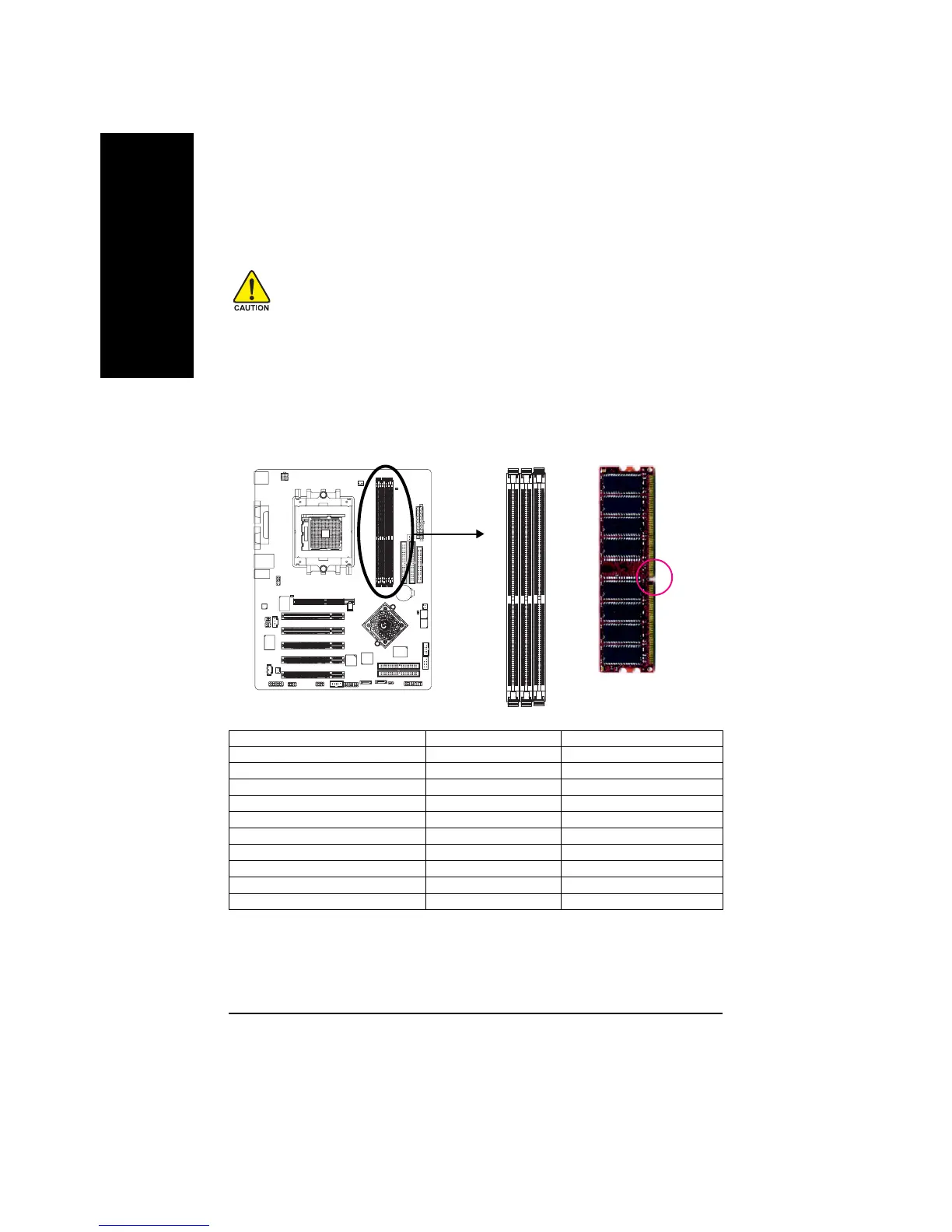

Step 2: Installing Memory Modules
The motherboard has 3 dual inline memory module (DIMM) sockets. The BIOS will automatically
detects memory type and size. To install the memory module, just push it vertically into the DIMM
socket. The DIMM module can only fit in one direction due to the notch. Memory size can vary
between sockets.
DDR
Notch
Total Memory Size Per Chip Select
Device Used on DIMMs Size Per CS Comments
64 Mbit (2Mx8-bitsx4 banks) 64 Mbyte
64 Mbit (1Mx16-bitsx4 banks) 32 Mbyte
128 Mbit(4Mx8-bitsx4 banks) 128 Mbyte
128 Mbit(2Mx16-bitsx4 banks) 64 Mbyte
256 Mbit(8Mx8-bitsx4 banks) 256 Mbyte
256 Mbit(4Mx16x4 banks) 128 Mbyte
512 Mbit(16Mx8-bitsx4 banks) 512 Mbyte
512 Mbit(8Mx16-bitsx4 banks) 256 Mbyte
1 Gbit(32Mx8-bitsx4 banks) 1 Gbyte
1 Gbit(16Mx16-bitsx4 banks) 512 Mbyte
K8n pro_1001_q.p65 2003/8/18, ¤U¤È 06:0518

Gigabyte GA-K8N Pro Specifications

General

Number of memory slots	3
Maximum internal memory	3 GB
Supported memory clock speeds	266, 333, 400 MHz
Processor socket	Socket 754
Processor manufacturer	AMD
Maximum number of SMP processors	1
S/PDIF out connector	Yes
Number of SATA connectors	2
Number of Parallel ATA connectors	4
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Firewire (IEEE 1394) ports	0
Audio chip	Realtek ALC658
Audio output channels	6.1 channels
Motherboard form factor	ATX
Compatible operating systems	Windows 98/ Me/ 2000/ XP
On-board graphics card	No
Parallel processing technology support	Not supported
PCI slots	5
LAN controller	Realtek RTL8110S
Networking features	Gigabit Ethernet
BIOS memory size	64 Mbit

Weight and Dimensions

Depth	244 mm
Width	305 mm
