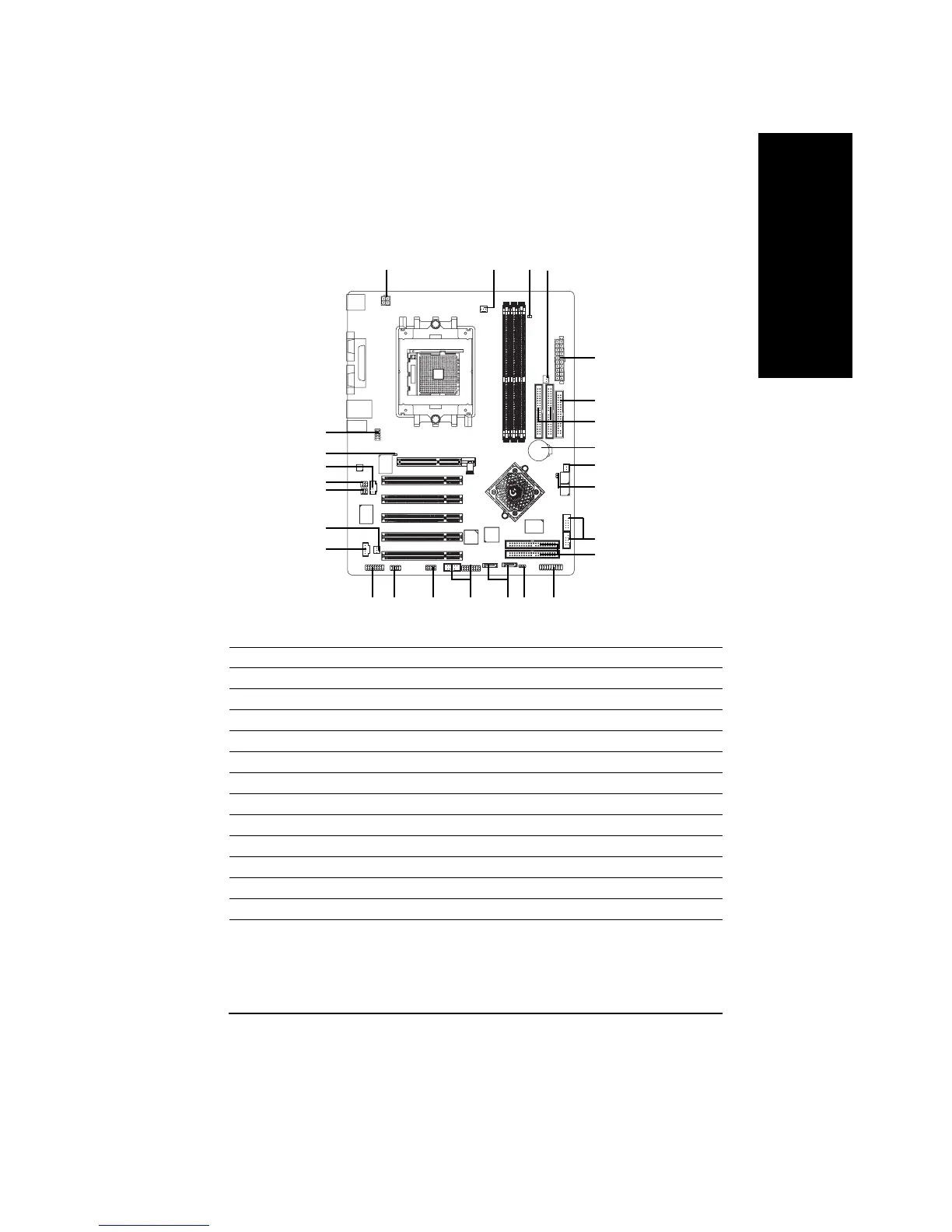

Step 4-2: Connectors Introduction
1) ATX_12V
2) ATX (Power Connector)
3) CPU_FAN
4) SYS_FAN
5) PWR_FAN
6) NB_FAN
7) FDD
8) IDE1 / IDE2
9) IDE3 / IDE4
10) SATA0 / SATA1
11) F_PANEL
12) BAT
13) PWR_LED
14) RAM_LED
15) 2X_DET
16) F_AUDIO
17) SUR_CEN
18) SPDIF_IO
19) CD_IN
20) AUX_IN
21) F_USB1 / F_USB2
22) F1_1394 / F2_1394
23) IR_CIR
24) GAME
25) INFO_LINK
26) CLR_PWD
16
20
25
3
8
9
7
2
5
13
1
6
18
17
19
24 22
21
12
1110
15
23
14
4
26
K8n pro_1001_q.p65 2003/8/18, ¤U¤È 06:0523

Gigabyte GA-K8N Pro Specifications

General

Number of memory slots	3
Maximum internal memory	3 GB
Supported memory clock speeds	266, 333, 400 MHz
Processor socket	Socket 754
Processor manufacturer	AMD
Maximum number of SMP processors	1
S/PDIF out connector	Yes
Number of SATA connectors	2
Number of Parallel ATA connectors	4
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Firewire (IEEE 1394) ports	0
Audio chip	Realtek ALC658
Audio output channels	6.1 channels
Motherboard form factor	ATX
Compatible operating systems	Windows 98/ Me/ 2000/ XP
On-board graphics card	No
Parallel processing technology support	Not supported
PCI slots	5
LAN controller	Realtek RTL8110S
Networking features	Gigabit Ethernet
BIOS memory size	64 Mbit

Weight and Dimensions

Depth	244 mm
Width	305 mm
