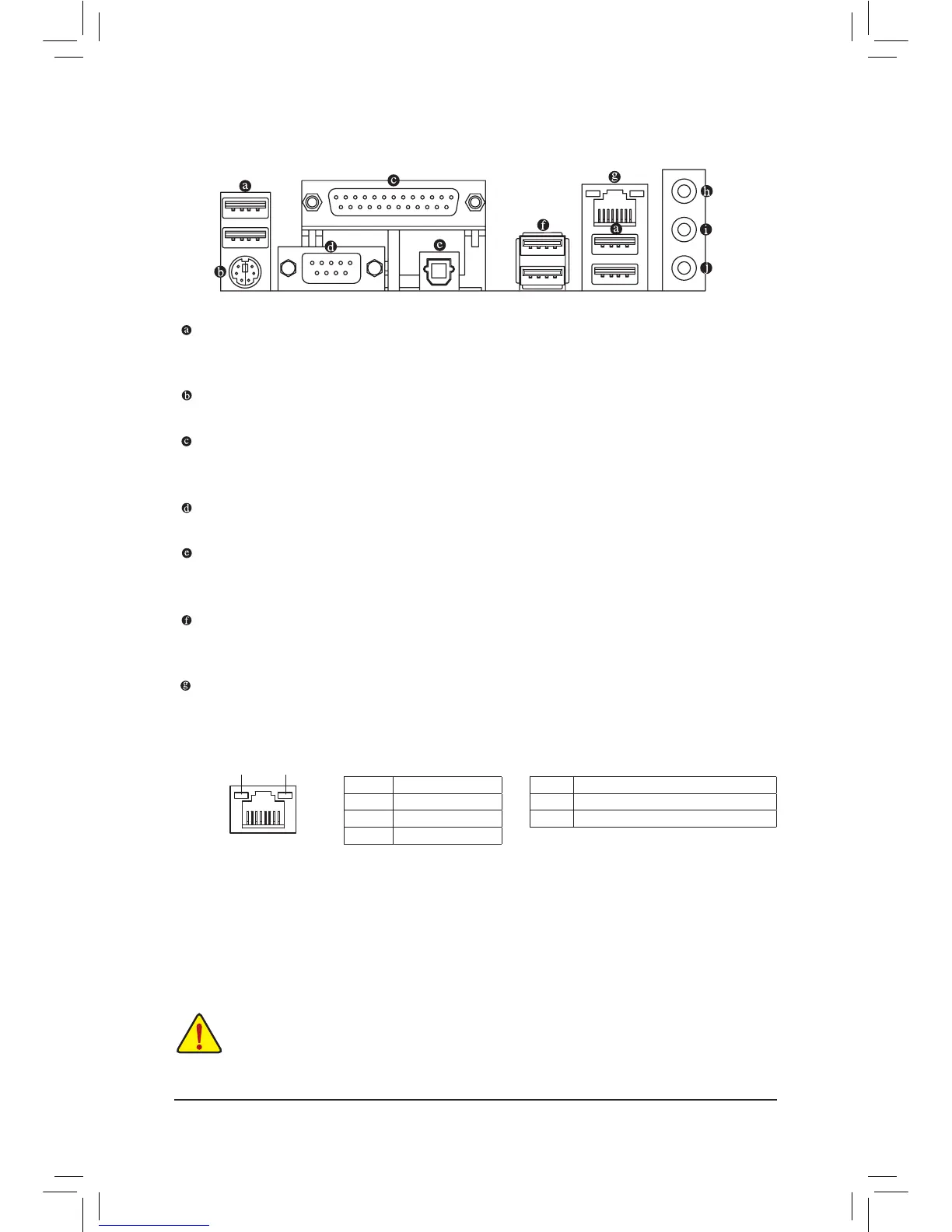

- 19 - Hardware Installation
1-6 Back Panel Connectors
USB 2.0/1.1 Port
TheUSBportsupportstheUSB2.0/1.1specication.UsethisportforUSBdevicessuchasaUSBkey-
board/mouse,USBprinter,USBashdriveandetc.
PS/2 Keyboard/Mouse Port
Use this port to connect a PS/2 mouse or keyboard.
Parallel Port
Use the parallel port to connect devices such as a printer, scanner and etc. The parallel port is also
called a printer port.
Serial Port
Use the serial port to connect devices such as a mouse, modem or other peripherals.
Optical S/PDIF Out Connector
This connector provides digital audio out to an external audio system that supports digital optical audio.
Before using this feature, ensure that your audio system provides an optical digital audio in connector.
USB 3.0/2.0 Port
TheUSB3.0portsupportstheUSB3.0specicationandiscompatibletotheUSB2.0/1.1specication.
UsethisportforUSBdevicessuchasaUSBkeyboard/mouse,USBprinter,USBashdriveandetc.
RJ-45 LAN Port
The Gigabit Ethernet LAN port provides Internet connection at up to 1 Gbps data rate. The following
describes the states of the LAN port LEDs.
Whenremovingthecableconnectedtoabackpanelconnector,rstremovethecablefromyour
device and then remove it from the motherboard.
When removing the cable, pull it straight out from the connector. Do not rock it side to side to
prevent an electrical short inside the cable connector.
Activity LED
Connection/
Speed LED
LAN Port
Activity LED:Connection/Speed LED:
State Description
Orange 1 Gbps data rate
Green 100 Mbps data rate
Off 10 Mbps data rate
State Description
Blinking Data transmission or receiving is occurring
Off No data transmission or receiving is occurring

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Gigabyte GA-Z68P-DS3 and is the answer not in the manual?

Gigabyte GA-Z68P-DS3 Specifications

General IconGeneral
Non-ECCYes
Memory voltage1.5 V
Memory channelsDual-channel
Memory slots typeDIMM
Number of memory slots4
Supported memory typesDDR3-SDRAM
Maximum internal memory32 GB
Supported memory clock speeds1300, 1333, 1600, 1866, 2133 MHz
Processor socketLGA 1155 (Socket H2)
Processor manufacturerIntel
Compatible processor seriesIntel Celeron, Intel Pentium
USB 2.0 connectors3
Number of SATA III connectors2
Number of Parallel ATA connectors-
USB 3.2 Gen 1 (3.1 Gen 1) connectors0
USB 2.0 ports quantity6
Parallel ports quantity1
Motherboard chipsetIntel Z68
Audio output channels7.1 channels
Motherboard form factorATX
Compatible operating systemsMicrosoft Windows 7, Vista, XP
Parallel processing technology supportQuad-GPU CrossFireX
RAID levels0, 1, 5, 10
Supported storage drive interfacesSATA, SATA II, SATA III
LAN controllerRealtek RTL8111E
Networking features10/100/1000 Mbps
Ethernet interface typeGigabit Ethernet
BIOS typeAWARD
ACPI version1.0b
Weight and Dimensions IconWeight and Dimensions
Depth215 mm
Width305 mm
