- 93 - Appendix

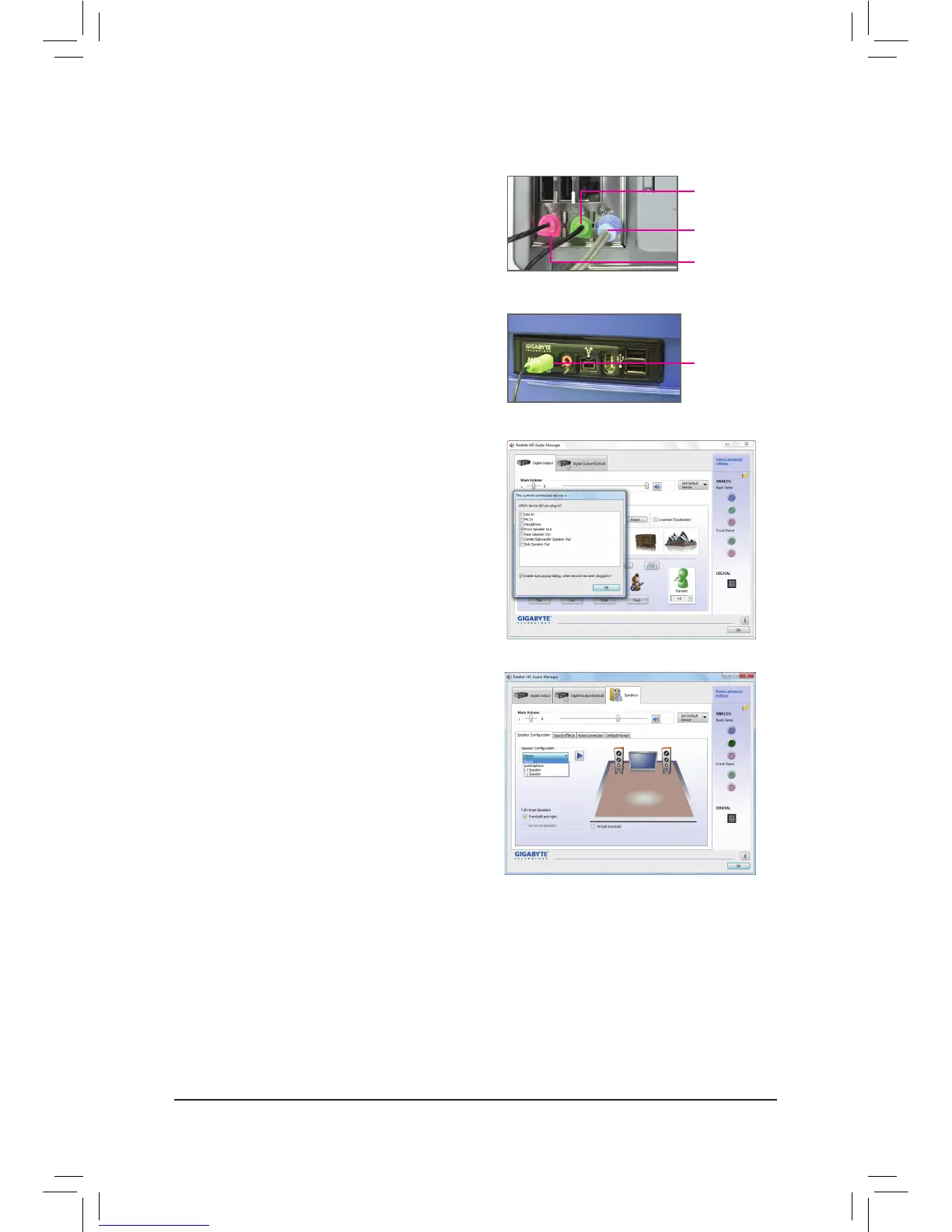

The pictures to the right show the 7.1-channel speak-
ercongurations.
7.1-Channel Speakers:
Center/Subwoofer
Speaker Out
Front Speaker Out
Rear Speaker Out
Side Speaker Out
Step 2:
Connect an audio device to an audio jack. The The cur-
rent connected device is dialog box appears. Select the
device according to the type of device you connect. Then
click OK.
Step 3:
On the Speakers screen, click the Speaker Congura-
tion tab. In the Speaker Conguration list, select Stereo,
Quadraphonic, 5.1 Speaker, or 7.1 Speaker according to
thetypeofspeakercongurationyouwishtosetup.Then
the speaker setup is completed.
B. Conguring Sound Effect
YoumaycongureanaudioenvironmentontheSound Effects tab.

Gigabyte GA-Z68P-DS3 Specifications

General

Non-ECC	Yes
Memory voltage	1.5 V
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR3-SDRAM
Maximum internal memory	32 GB
Supported memory clock speeds	1300, 1333, 1600, 1866, 2133 MHz
Processor socket	LGA 1155 (Socket H2)
Processor manufacturer	Intel
Compatible processor series	Intel Celeron, Intel Pentium
USB 2.0 connectors	3
Number of SATA III connectors	2
Number of Parallel ATA connectors	-
USB 3.2 Gen 1 (3.1 Gen 1) connectors	0
USB 2.0 ports quantity	6
Parallel ports quantity	1
Motherboard chipset	Intel Z68
Audio output channels	7.1 channels
Motherboard form factor	ATX
Compatible operating systems	Microsoft Windows 7, Vista, XP
Parallel processing technology support	Quad-GPU CrossFireX
RAID levels	0, 1, 5, 10
Supported storage drive interfaces	SATA, SATA II, SATA III
LAN controller	Realtek RTL8111E
Networking features	10/100/1000 Mbps
Ethernet interface type	Gigabit Ethernet
BIOS type	AWARD
ACPI version	1.0b

Weight and Dimensions

Depth	215 mm
Width	305 mm
