Gigabyte GA-Z68P-DS3 User Manual

Appendix - 94 -

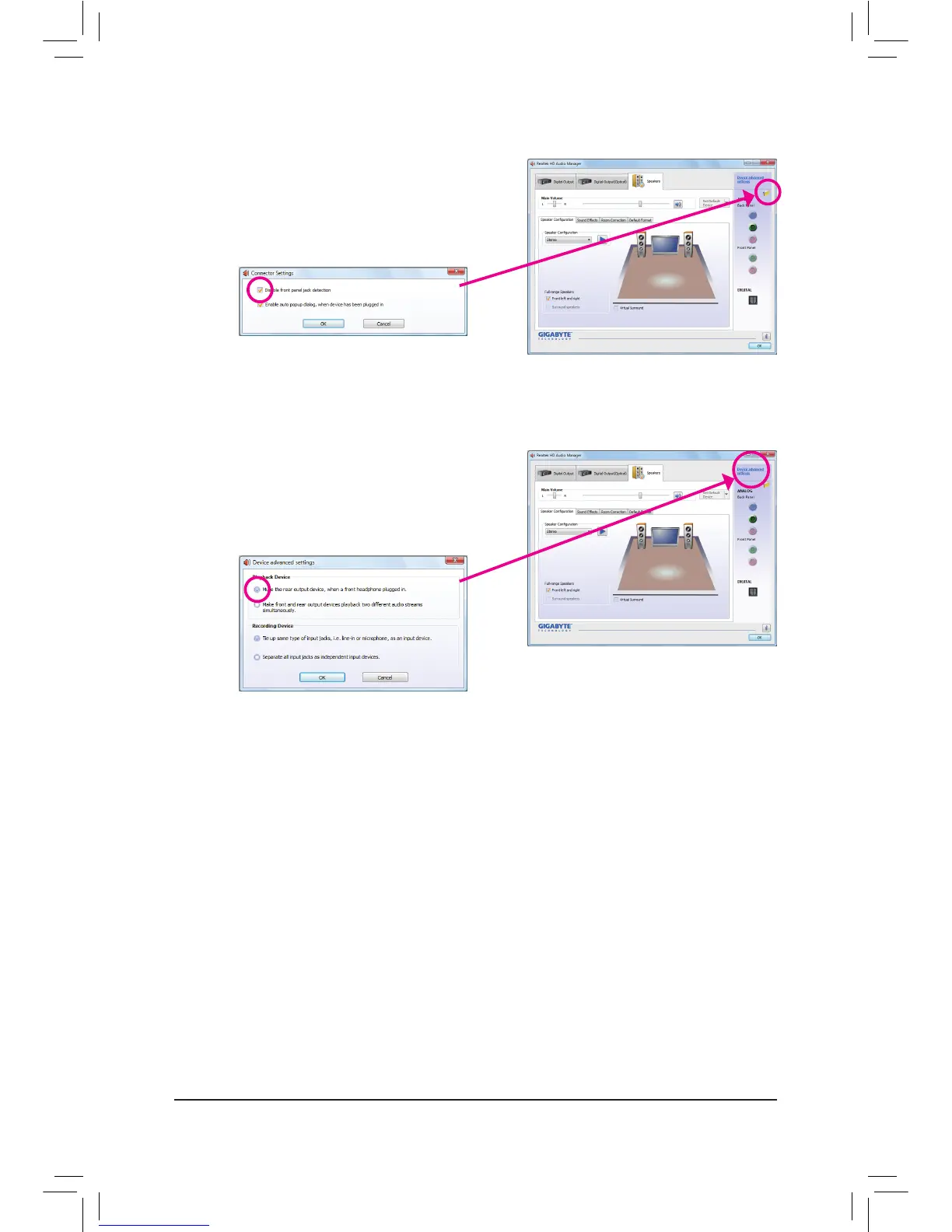

If your chassis provides an AC'97 front panel audio mod-
ule, to activate the AC'97 functionality, click the tool icon
on the Speaker Configuration tab. On the Connector
Settings dialog box, select the Disable front panel jack
detection check box. Click OK to complete.
Click Device advanced settings on the top right corner
on the Speaker Configuration tab to open the Device
advanced settings dialog box. Select the Mute the rear
output device, when a front headphone plugged in
check box. Click OK to complete.
C. Activating an AC'97 Front Panel Audio Module
D. Muting the Back Panel Audio (For HD Audio Only)

Gigabyte GA-Z68P-DS3 Specifications

General

Non-ECC	Yes
Memory voltage	1.5 V
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR3-SDRAM
Maximum internal memory	32 GB
Supported memory clock speeds	1300, 1333, 1600, 1866, 2133 MHz
Processor socket	LGA 1155 (Socket H2)
Processor manufacturer	Intel
Compatible processor series	Intel Celeron, Intel Pentium
USB 2.0 connectors	3
Number of SATA III connectors	2
Number of Parallel ATA connectors	-
USB 3.2 Gen 1 (3.1 Gen 1) connectors	0
USB 2.0 ports quantity	6
Parallel ports quantity	1
Motherboard chipset	Intel Z68
Audio output channels	7.1 channels
Motherboard form factor	ATX
Compatible operating systems	Microsoft Windows 7, Vista, XP
Parallel processing technology support	Quad-GPU CrossFireX
RAID levels	0, 1, 5, 10
Supported storage drive interfaces	SATA, SATA II, SATA III
LAN controller	Realtek RTL8111E
Networking features	10/100/1000 Mbps
Ethernet interface type	Gigabit Ethernet
BIOS type	AWARD
ACPI version	1.0b

Weight and Dimensions

Depth	215 mm
Width	305 mm
