Gigabyte GA-Z68P-DS3 User Manual

- 8 -

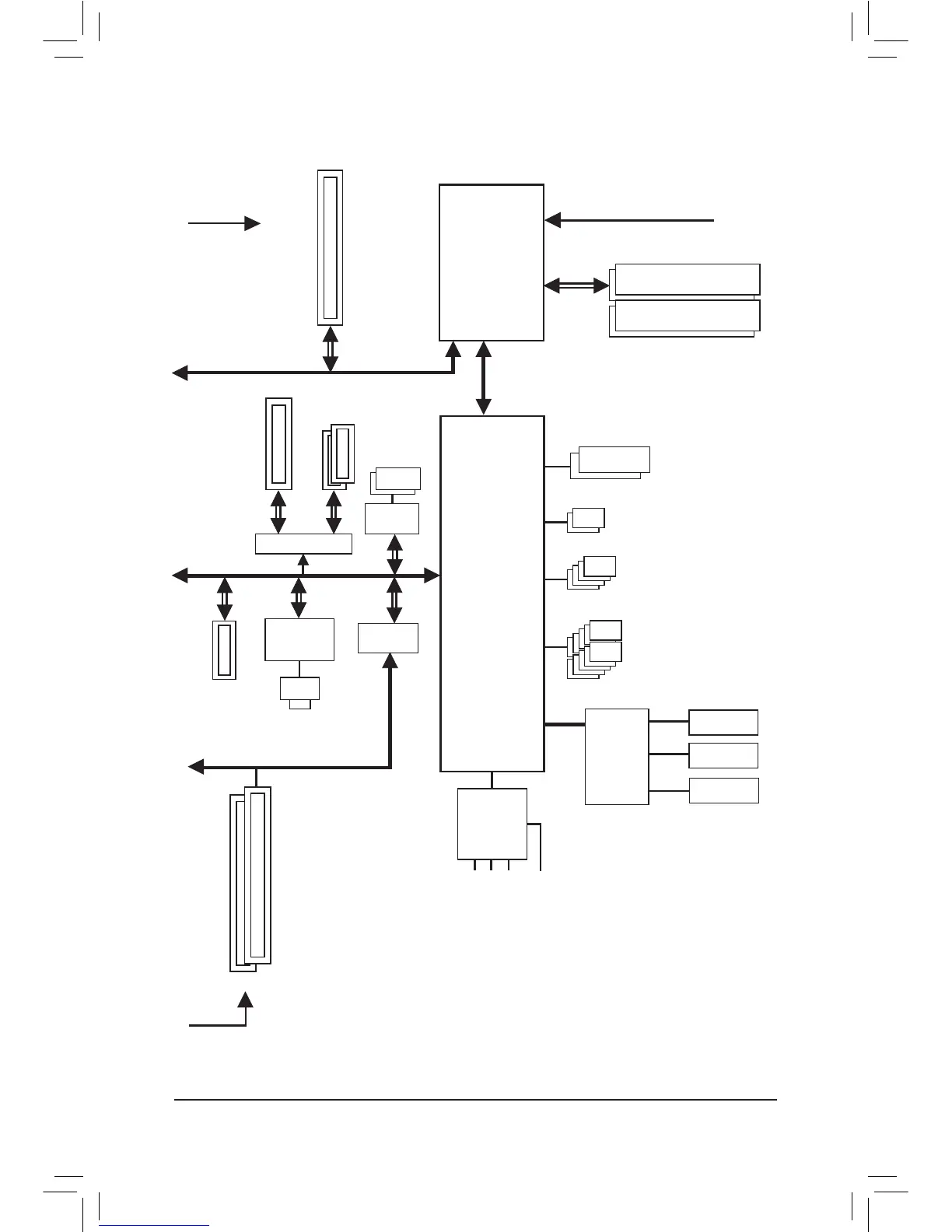

GA-P67A-D3-B3 Motherboard Block Diagram
LGA1155
CPU
Intel
®
P67
PCI Express Bus
CPU CLK+/- (100 MHz)
PCIe CLK
(100 MHz)
Dual Channel Memory
1 PCI Express x16
x16
DMI Interface
PCI Express Bus
2 USB 3.0/2.0
Etron
EJ168
x1
LAN
RJ45
Realtek
GbE LAN
10 USB 2.0/1.1
4 SATA 3Gb/s
Dual BIOS
PS/2 KB/Mouse
COM
iTE
IT8728
LPC
Bus
2 PCI
PCI Bus
PCI CLK
(33 MHz)
PCIe to PCI
Bridge
x1
2 SATA 6Gb/s
x1
x4 x1
2 PCI Express x1
Switch
or
1 PCI Express x4
x1
1 PCI Express x1
CODEC
Line In (Rear Speaker Out )
Line Out (Front Speaker Out )
MIC (Center/Subwoofer Speaker Out )
LPT
DDR3 2133/1866/1600/1333/1066 MHz
S/PDIF Out

Gigabyte GA-Z68P-DS3 Specifications

General

Non-ECC	Yes
Memory voltage	1.5 V
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR3-SDRAM
Maximum internal memory	32 GB
Supported memory clock speeds	1300, 1333, 1600, 1866, 2133 MHz
Processor socket	LGA 1155 (Socket H2)
Processor manufacturer	Intel
Compatible processor series	Intel Celeron, Intel Pentium
USB 2.0 connectors	3
Number of SATA III connectors	2
Number of Parallel ATA connectors	-
USB 3.2 Gen 1 (3.1 Gen 1) connectors	0
USB 2.0 ports quantity	6
Parallel ports quantity	1
Motherboard chipset	Intel Z68
Audio output channels	7.1 channels
Motherboard form factor	ATX
Compatible operating systems	Microsoft Windows 7, Vista, XP
Parallel processing technology support	Quad-GPU CrossFireX
RAID levels	0, 1, 5, 10
Supported storage drive interfaces	SATA, SATA II, SATA III
LAN controller	Realtek RTL8111E
Networking features	10/100/1000 Mbps
Ethernet interface type	Gigabit Ethernet
BIOS type	AWARD
ACPI version	1.0b

Weight and Dimensions

Depth	215 mm
Width	305 mm
