Gigabyte GA-Z68P-DS3 User Manual

Hardware Installation - 24 -
A RAID 0 or RAID 1 conguration requiresat least two harddrives. If more than twohard
•
drives are to be used, the total number of hard drives must be an even number.
ARAID5congurationrequiresatleastthreeharddrives.(Thetotalnumberofharddrives
•
does not have to be an even number.)
ARAID10congurationrequiresfourharddrives.
•

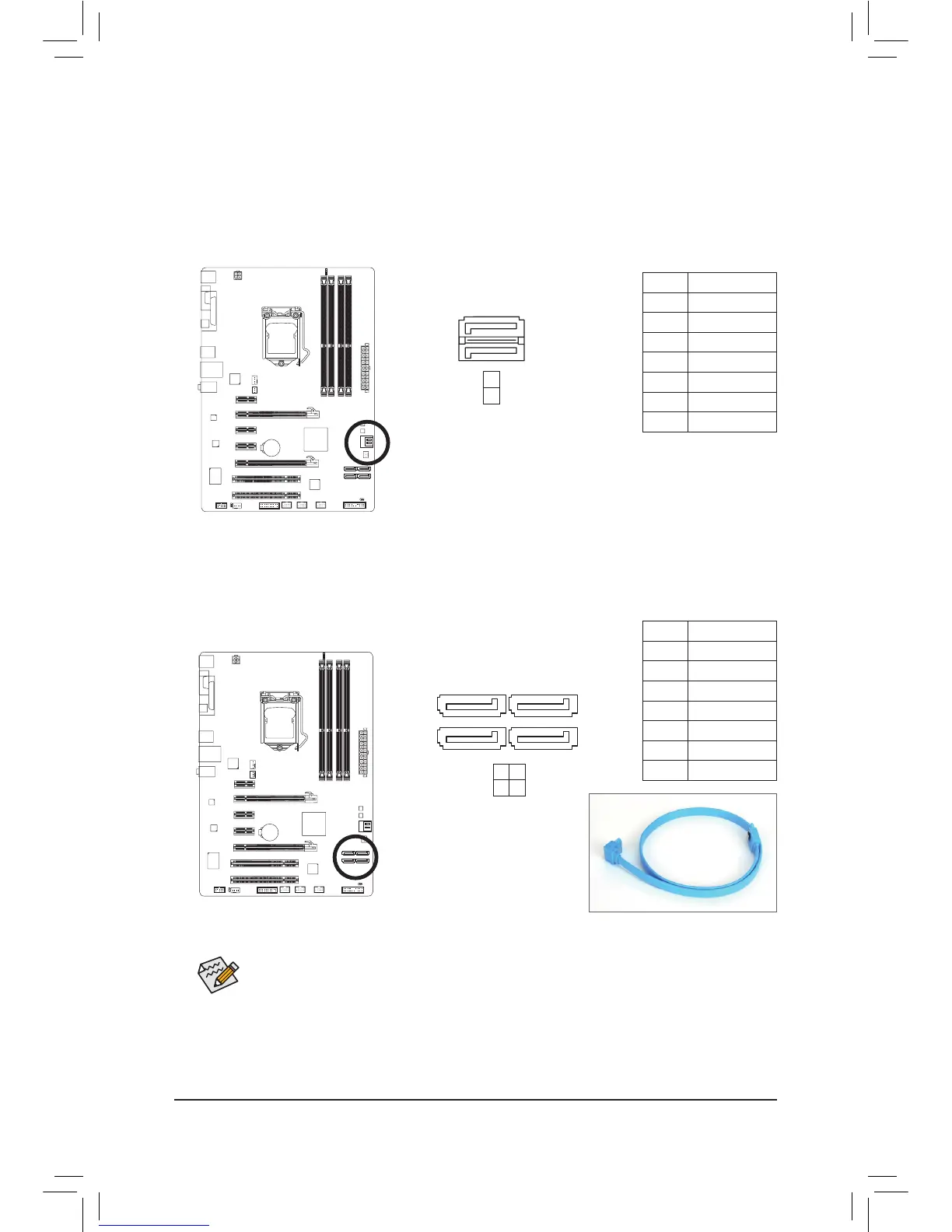

7) SATA3 0/1 (SATA 6Gb/s Connectors, Controlled by Intel P67 Chipset)
The SATA connectors conform to SATA 6Gb/s standard and are compatible with SATA 3Gb/s and SATA
1.5Gb/s standard. Each SATA connector supports a single SATA device. The "SATA3 0" and "SATA3
1" connectors support RAID 0 and RAID 1. RAID 5 and RAID 10 can be implemented on the two con-
nectors with the "SATA2 2/3/4/5" connectors
(Note)
.RefertoChapter5,"ConguringSATAHardDrive(s),"
forinstructionsonconguringaRAIDarray.
Please connect the L-shaped end of the
SATA cable to your SATA hard drive.
8) SATA2 2/3/4/5 (SATA 3Gb/s Connectors, Controlled by Intel P67 Chipset)
The SATA connectors conform to SATA 3Gb/s standard and are compatible with SATA 1.5Gb/s standard.
Each SATA connector supports a single SATA device. The Intel P67 Chipset supports RAID 0, RAID
1, RAID 5, and RAID 10. Refer to Chapter 5, "Configuring SATA Hard Drive(s)," for instructions on
conguringaRAIDarray.
(Note) When a RAID set is built across the SATA 6Gb/s and SATA 3Gb/s channels, the system perfor-
mance of the RAID set may vary depending on the devices being connected.
Pin No. Denition
1 GND
2 TXP
3 TXN
4 GND
5 RXN
6 RXP
7 GND
Pin No. Denition
1 GND
2 TXP
3 TXN
4 GND
5 RXN
6 RXP
7 GND
1
1
DEBUG
PORT
G.QBOFM
7
7
71
71
DEBUG PORT
G.QBOFM
DEBUG PORT
G.QBOFM
DEBUG PORT
G.QBOFM
DEBUG PORT
G.QBOFM
4 2
5 3
1
0
SATA3
SATA2

Gigabyte GA-Z68P-DS3 Specifications

General

Non-ECC	Yes
Memory voltage	1.5 V
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR3-SDRAM
Maximum internal memory	32 GB
Supported memory clock speeds	1300, 1333, 1600, 1866, 2133 MHz
Processor socket	LGA 1155 (Socket H2)
Processor manufacturer	Intel
Compatible processor series	Intel Celeron, Intel Pentium
USB 2.0 connectors	3
Number of SATA III connectors	2
Number of Parallel ATA connectors	-
USB 3.2 Gen 1 (3.1 Gen 1) connectors	0
USB 2.0 ports quantity	6
Parallel ports quantity	1
Motherboard chipset	Intel Z68
Audio output channels	7.1 channels
Motherboard form factor	ATX
Compatible operating systems	Microsoft Windows 7, Vista, XP
Parallel processing technology support	Quad-GPU CrossFireX
RAID levels	0, 1, 5, 10
Supported storage drive interfaces	SATA, SATA II, SATA III
LAN controller	Realtek RTL8111E
Networking features	10/100/1000 Mbps
Ethernet interface type	Gigabit Ethernet
BIOS type	AWARD
ACPI version	1.0b

Weight and Dimensions

Depth	215 mm
Width	305 mm
