Gigabyte GA-Z97N-WIFI User Manual

- 37 -
BIOS Setup
` M.I.T. Current Status
This screen provides information on CPU/memory frequencies/parameters.

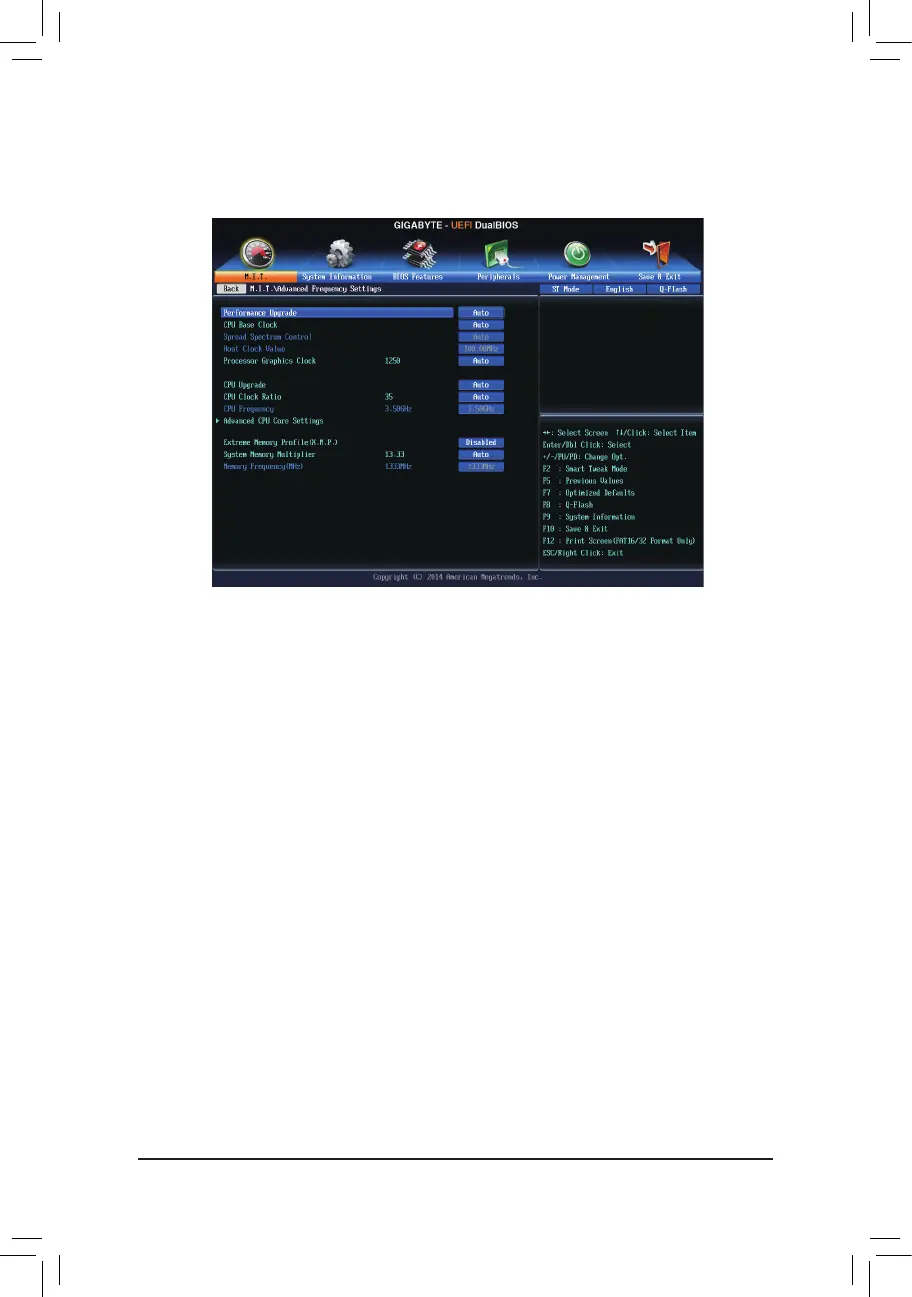

` Advanced Frequency Settings
& Performance UpgradeM
(Note)
 Providesyouwithvedifferentoverclockingcongurations.Optionsare:20%Upgrade,40%Upgrade,
60%Upgrade,80%Upgrade,100%Upgrade.(Default:Auto)
& CPU Base ClockM
 AllowsyoutomanuallysettheCPUbaseclockin0.01MHzincrements.(Default:Auto)
Important:It is highly recommended that the CPU frequency be set in accordance with the CPU
specications.
& Host/PCIe Clock Frequency M
(Note)
 Allowsyoutomanuallysetthehostclockfrequency(whichcontrolsCPU,PCIe,andmemoryfrequencies)
in0.01MHzincrements.ThisitemiscongurableonlywhenCPU Base Clock is set to Manual.
& Processor Base Clock (Gear Ratio)M
(Note)
 AllowsyoutoconguretheProcessorBaseClockbymultiplyingtheHost/PCIe Clock Frequency by several
presethostclockmultipliers.ThisitemiscongurableonlywhenCPU Base Clock is set to Manual.
& Spread Spectrum ControlM
(Note)
 EnablesordisablesCPU/PCIeSpreadSpectrum.(Default:Auto)
& Host Clock ValueM
This value is determined by multiplying the Host/PCIe Clock Frequency value by the Processor Base
Clock (Gear Ratio) value.
& Processor Graphics Clock
 Allowsyoutosettheonboardgraphicsclock.Theadjustablerangeisfrom400MHzto4000MHz.(Default:
Auto)
& CPU Upgrade
(Note)
 AllowsyoutosettheCPUfrequency.OptionsmayvarydependingontheCPUbeingused.(Default:Auto)
(Note) ThisitemispresentonlywhenyouinstallaCPUthatsupportsthisfeature.Formoreinformationabout
Intel
®
CPUs' unique features, please visit Intel's website.
M Only for GA-Z97N-WIFI.

Gigabyte GA-Z97N-WIFI Specifications

General

Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	2
Supported memory types	DDR3-SDRAM
Maximum internal memory	16 GB
Supported memory clock speeds	1333, 1600 MHz
Processor socket	LGA 1150 (Socket H3)
Processor manufacturer	Intel
Compatible processor series	Intel® Celeron®
USB 2.0 connectors	1
Number of SATA connectors	6
Number of Parallel ATA connectors	-
RAID levels	0, 1, 5, 10
Supported storage drive interfaces	SATA
HDMI version	1.4a
Headphone outputs	5
DVI-D ports quantity	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Bluetooth version	4.0
Audio chip	Realtek ALC892
Component for	PC
Power source type	ATX
Motherboard chipset	Intel® Z97
Audio output channels	7.1 channels
Motherboard form factor	mini ITX
Maximum resolution	4096 x 2160 pixels
Maximum graphics card memory	1000 MB
BIOS type	UEFI AMI
ACPI version	5.0
BIOS memory size	64 Mbit
Bundled software	Norton Internet Security (OEM version)\\r Intel Rapid Start Technology\\r Intel Smart Connect Technology\\r Intel Smart Response Technology\\r Intel Wireless Display

Weight and Dimensions

Width	170 mm
