Gigabyte GA-Z97N-WIFI User Manual

- 69 -
Conguring SATA Hard Drive(s)
3-2 Installing the SATA RAID/AHCI Driver and Operating System
With the correct BIOS settings, you are ready to install the operating system.
A. Installing the Operating System
As Windows 7 already include Intel
®
SATA RAID/AHCI driver, you do not need to install separate RAID/AHCI
driver during the Windows installation process. After the operating system is installed, we recommend that you
installallrequireddriversfromthemotherboarddriverdiskusing"XpressInstall"toensuresystemperformance
and compatibility. To install Windows 8.1/8, refer to the steps below:
Step 1:
Copy the IRST folder under BootDrv in the driver disk to your USB thumb drive.
Step 2:
Boot from the Windows 8.1/8 setup disk and perform standard OS installation steps. When the screen requesting
you to load the driver appears, select Browse.
Step 3:
Insert the USB thumb drive and then browse to the location of the driver. The locations of the drivers are as follows:
Windows 32-bit: \iRST\32Bit
Windows 64-bit: \iRST\64Bit
Step 4:

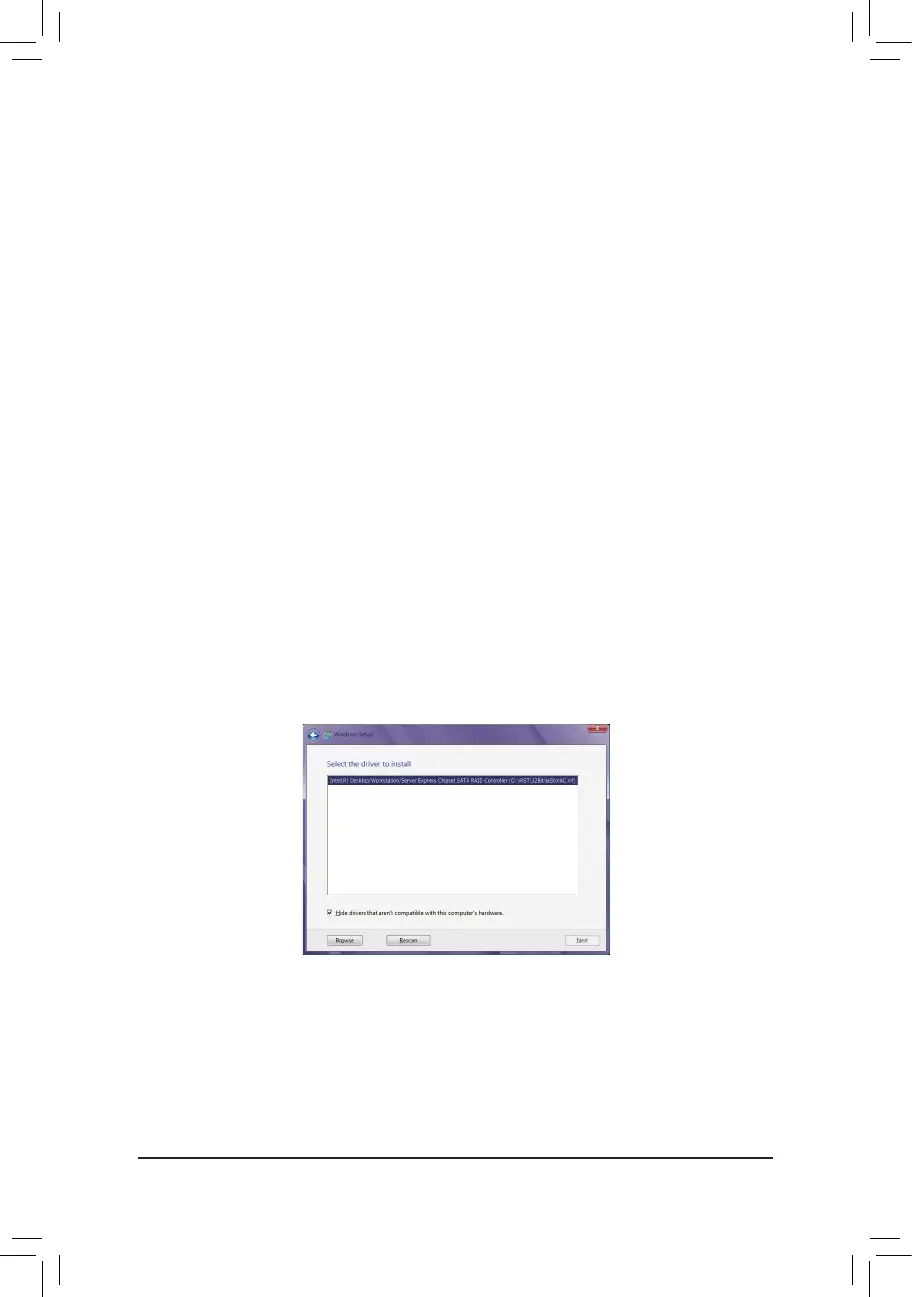

When a screen as shown in Figure 1 appears, select Intel(R) Desktop/Workstation/Server Express Chipset
SATA RAID Controller and click Next to load the driver and continue the OS installation
Figure 1
