Gigabyte GA-Z97N-WIFI User Manual

- 43 -
BIOS Setup

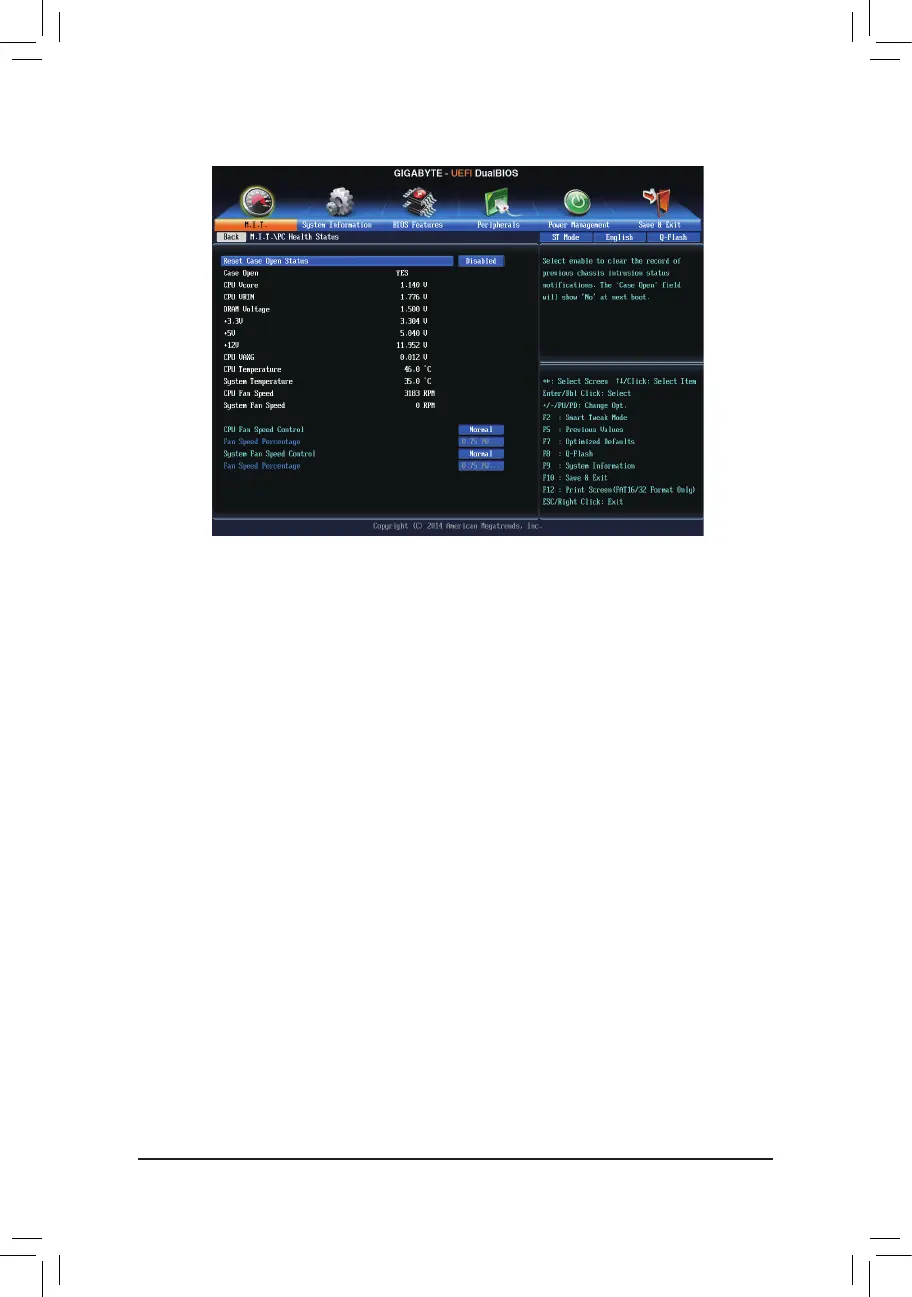

` PC Health Status
& Reset Case Open Status
Disabled Keepsorclearstherecordofpreviouschassisintrusionstatus.(Default)
Enabled Clears the record of previous chassis intrusion status and the Case Openeldwillshow
"No" at next boot.
& Case Open
Displays the detection status of the chassis intrusion detection device attached to the motherboard CI
header.Ifthesystemchassiscoverisremoved,thiseldwillshow"Yes",otherwiseitwillshow"No".To
clear the chassis intrusion status record, set Reset Case Open Status to Enabled, save the settings to
the CMOS, and then restart your system.
& CPU Vcore/CPU VRIN/DRAM Voltage/+3.3V/+5V/+12V/CPU VAXG
Displays the current system voltages.
& CPU/SystemTemperature
Displays current CPU/System temperature.
& CPU/System Fan Speed
Displays current CPU/system fan speed.
& CPU Fan Speed Control
Allows you to determine whether to enable the fan speed control function and adjust the fan speed.
Normal Allows the fan to run at different speeds according to the CPU temperature. You can
adjustthefanspeedwithEasyTunebasedonyoursystemrequirements.(Default)
Silent Allows the fan to run at slow speeds.
Manual Allows you to control the fan speed under the Fan Speed Percentage item.
Full Speed Allows the fan to run at full speeds.
& Fan Speed Percentage
 Allowsyoutocontrolthefanspeed.ThisitemiscongurableonlywhenCPU Fan Speed Control is set
to Manual. Options are: 0.75 PWM value /
o
C ~ 2.50 PWM value /
o
C.

Gigabyte GA-Z97N-WIFI Specifications

General

Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	2
Supported memory types	DDR3-SDRAM
Maximum internal memory	16 GB
Supported memory clock speeds	1333, 1600 MHz
Processor socket	LGA 1150 (Socket H3)
Processor manufacturer	Intel
Compatible processor series	Intel® Celeron®
USB 2.0 connectors	1
Number of SATA connectors	6
Number of Parallel ATA connectors	-
RAID levels	0, 1, 5, 10
Supported storage drive interfaces	SATA
HDMI version	1.4a
Headphone outputs	5
DVI-D ports quantity	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Bluetooth version	4.0
Audio chip	Realtek ALC892
Component for	PC
Power source type	ATX
Motherboard chipset	Intel® Z97
Audio output channels	7.1 channels
Motherboard form factor	mini ITX
Maximum resolution	4096 x 2160 pixels
Maximum graphics card memory	1000 MB
BIOS type	UEFI AMI
ACPI version	5.0
BIOS memory size	64 Mbit
Bundled software	Norton Internet Security (OEM version)\\r Intel Rapid Start Technology\\r Intel Smart Connect Technology\\r Intel Smart Response Technology\\r Intel Wireless Display

Weight and Dimensions

Width	170 mm
