Hardware Installation
1-4-2 Installing and Removing a Memory Module
Before installing a memory module, make sure to turn off the computer and unplug the
power cord from the power outlet to prevent damage to the memory module.
Be sure to install DDR4 DIMMs on this motherboard.
1
2
2

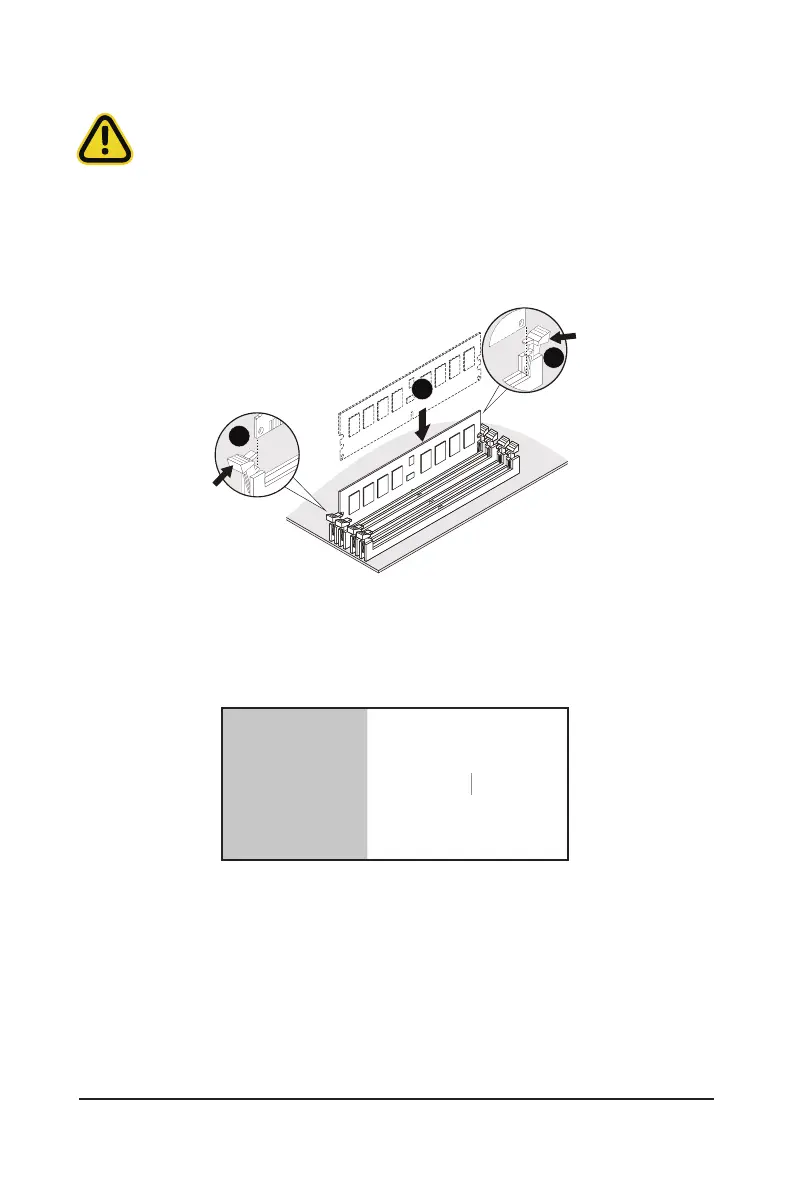

Follow these instructions to install a DIMM module:
1. Insert the DIMM memory module vertically into the DIMM slot and push it down.
2. Close the plastic clip at both edges of the DIMM slots to lock the DIMM module.
3. Reverse the installation steps when you want to remove the DIMM module.
Note:
To avoid any potential short circuit of the DIMM slots, please remove any stand-offs from the
chassis that will be located underneath the DIMM slots, before installing the motherboard into
the chassis.
Memory Type DDR4
Voltage (V) 1.2V
Connector UDIMM ECC/Non-ECC
Speed (MT/s) 3200 2133
Channels 1,2
DIMM Per Channel 1,2
DIMM Capacity (GB) 2,4,8,16,32
