- 21 -
Hardware Installation
PinNo. Denition
1 Clock
2 GND
3 Data
4 VCC

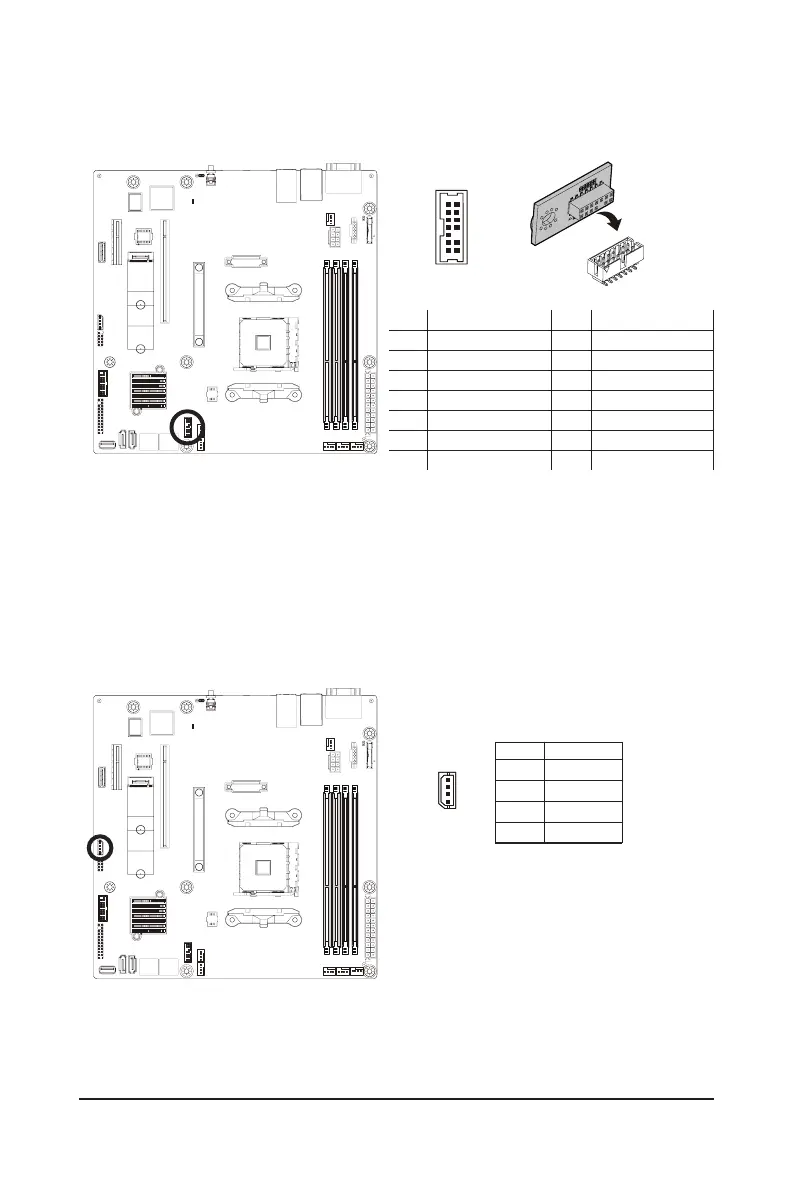

13) IPMB (Intelligent Platform Management Bus) Connector
The Intelligent Platform Management Bus Communications Protocol defines a byte-level transport for
transferringIntelligentPlatformManagementInterfaceSpecication(IPMI)messagesbetweenintelligentI2C
devices.
4
1
12) TPM (Trusted Platform Module Connector)
Trusted Platform Module (TPM) is an international standard for a secure cryptoprocessor, a dedicated
microcontroller designed to secure hardware through integrated cryptographic keys.
Pin No. Denition Pin No. Denition
1 SPI_PCH_TPM_R_CLK 8 No Connect
2 A_VDD18S5 9 No Connect
3 LPC_RST_N 10 No Pin
4 NC 11 No Connect
5 SPI_PCH_TPM_R_MISO 12 GND
6 IRQ_TPM_SPI_R_N 13 SPI_PCH_TPM_R_CS_N
7 SPI_PCH_TPM_R_MOSI 14 GND
12
13 14
