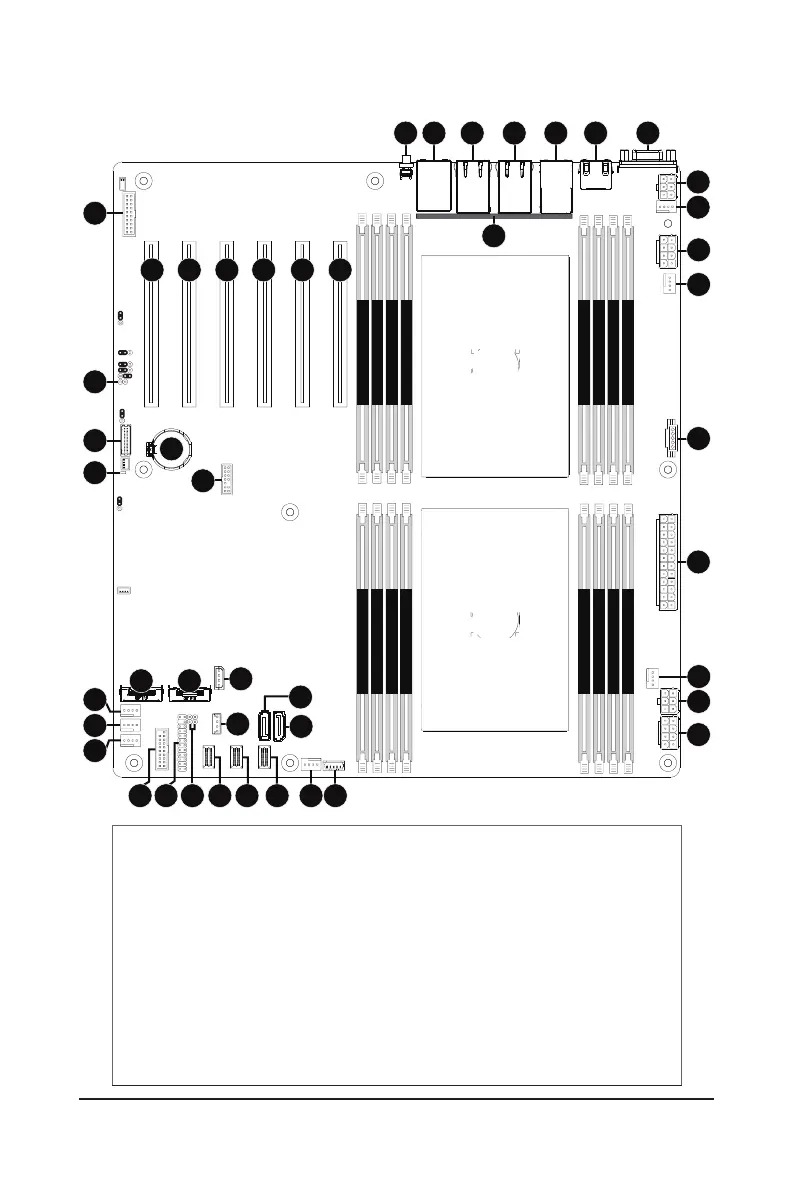

MS73-HB2 Motherboard Layout
CPU1
CPU0
DIMM_P1_L0 DIMM_P1_K0 DIMM_P1_J0 DIMM_P1_I0
DIMM_P1_M0 DIMM_P1_N0 DIMM_P1_O0 DIMM_P1_P0
DIMM_P0_H0 DIMM_P0_G0 DIMM_P0_F0 DIMM_P0_E0 DIMM_P0_A0 DIMM_P0_B0 DIMM_P0_C0 DIMM_P0_D0
1 2 43 5 6 7
8
9
10
11
12
13
15
16
18
19
20
2324 222526
27
28
29
30
31
33
32
34
35
36
37
38
39
40 41 42 43 44 45
17
14
46
21
Item Code Description
1 SW_ID ID Button with LED
2 USB3_MLAN Server Management LAN Port (Top)/USB 3.2 Gen1 Ports (Bottom)
3 10GLAN1 10GbE LAN Port #1
4 10GLAN2 10GbE LAN Port #2
5 LAN3_4 1GbE LAN Port #3 (Top)/1GbE LAN Port #4 (Bottom)
6 COM PJ45 Type Serial Port
7 VGA VGA port
8 P12V_PCIE2 2x3 Pin 12V Power Connector #2
9 CPU1_FAN CPU1 Fan Connector
10 P12V_AUX2 2x4 Pin 12V Power Connector (for CPU1)
11 SYS_FAN1 System Fan Connector #1
