- 17 - Hardware Installation

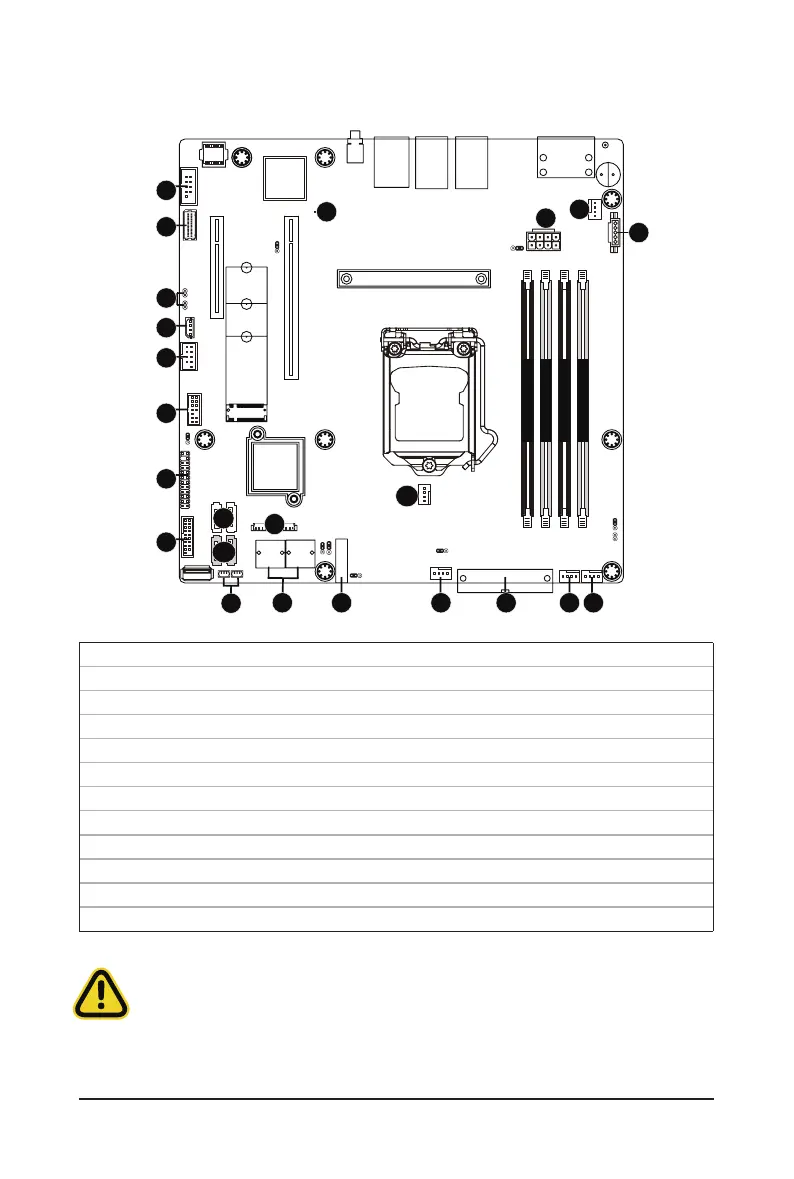

1-7 Internal Connectors
Read the following guidelines before connecting external devices:
•
First make sure your devices are compliant with the connectors you wish to connect.
•
Before installing the devices, be sure to turn off the devices and your computer. Unplug the power
cord from the power outlet to prevent damage to the devices.
•
After installing the device and before turning on the computer, make sure the device cable has
been securely attached to the connector on the motherboard.
DIMM_P0_A1
DIMM_P0_A0
DIMM_P0_B1
DIMM_P0_B0
CPU
2
13
9
8
7
4
5
14
20
19
15
18
21
17
16
23
1) ATX 13) PMBus
2) ATX_12V 14) F_USB3
3) SATA0/ SATA1/ SATA2/ SATA3 15) F_USB2
4) SATA4/ SATA5 (Support SATA DOM Power) 16) COM2
5) SATA6/ SATA7 17) BP_1
6) SATA_DOM1/ SATA_DOM2 18) IPMB
7) SATA_SGP1/ SATA_SGP2 19) TPM
8) CPU_FAN 20) FP_1
9) SYS_FAN1 21) LAN3_ACT/ LAN4_ACT
10) SYS_FAN3 22) BAT
11) SYS_FAN2 23) LED_BMC
12) SYS_FAN4
