Gigabyte X570 AORUS ELITE WIFI User Manual

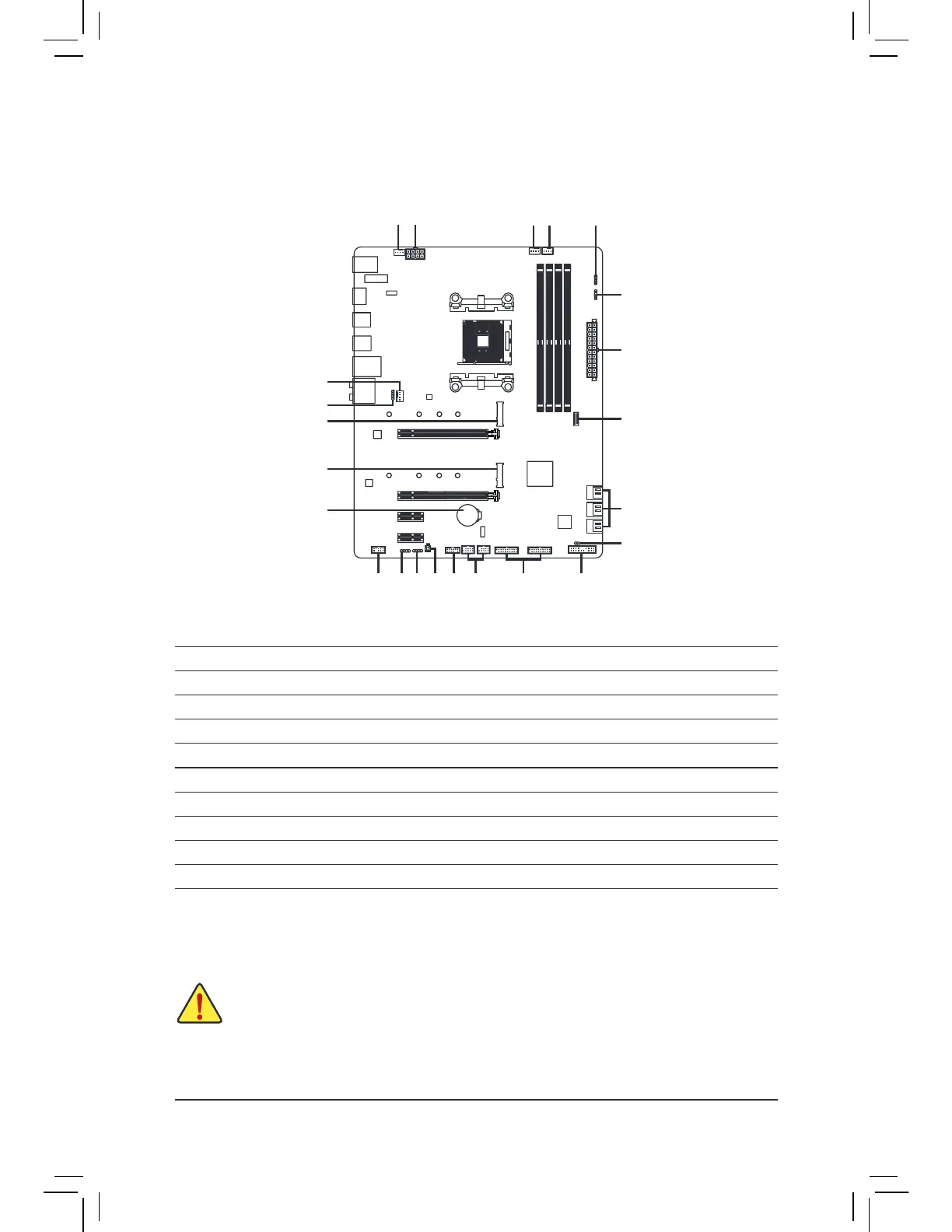

1-7 Internal Connectors
Read the following guidelines before connecting external devices:
• First make sure your devices are compliant with the connectors you wish to connect.
• Before installing the devices, be sure to turn off the devices and your computer. Unplug the power
cord from the power outlet to prevent damage to the devices.
• After installing the device and before turning on the computer, make sure the device cable has
been securely attached to the connector on the motherboard.
1) ATX_12V
2) ATX
3) CPU_FAN
4) SYS_FAN1/2
5) CPU_OPT
6) M2A_SOCKET/M2B_SOCKET
7) SATA3 0/1/2/3/4/5
8) LED_C1/LED_C2
9) D_L ED1/D_LED2
10) LED_CPU
11) F_AUDIO
12) F_PANEL
13) F_USB31C
14) F_USB30_1/F_USB30_2
15) F_USB1/F_USB2
16) TPM
17) BAT
18) CLR_CM OS
19) QFLASH_PLUS
2
19 168 12
4 1
3
6
4
10
15 14
5
7
13
6
18
911
17
9
8
- 15 -

Gigabyte X570 AORUS ELITE WIFI Specifications

General

Processor socket	Socket AM4
Processor manufacturer	AMD
Compatible processor series	AMD Ryzen 3 2nd Gen, AMD Ryzen 3 3rd Gen, AMD Ryzen 5 2nd Gen, AMD Ryzen 5 3rd Gen, AMD Ryzen 7 2nd Gen, AMD Ryzen 7 3rd Gen, AMD Ryzen 9 3rd Gen
Maximum number of SMP processors	1
Audio chip	Realtek ALC1200
Cooling type	Active
Component for	PC
Power source type	ATX
Motherboard chipset	AMD X570
Audio output channels	5.1 channels
Windows operating systems supported	Windows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home x64, Windows 10 Pro x64, Windows 10 x64
ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR4-SDRAM
Maximum internal memory	128 GB
Supported memory clock speeds	2133, 2400, 2667, 2933, 3200, 3300, 3333, 3400, 3466, 3600, 3733, 3800, 3866, 4000 MHz
Supported memory module capacities	4GB, 8GB, 16GB, 32GB
RAID levels	0, 1, 10
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA III
HDD size	2.5/3.5 \
Maximum resolution	4096 x 2160 pixels
Maximum graphics card memory	16384 MB
Parallel processing technology support	2-Way CrossFireX, Quad-GPU CrossFireX
Number of M.2 (M) slots	2
Number of SATA II connectors	0
Number of SATA III connectors	6
BIOS type	UEFI AMI
ACPI version	5.0
BIOS memory size	128 Mbit
System Management BIOS (SMBIOS) version	2.7
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Bluetooth version	4.2
Ethernet interface type	Gigabit Ethernet
Bundled software	Norton Internet Security (OEM version) cFosSpeed

Weight and Dimensions

Depth	244 mm
Width	305 mm
