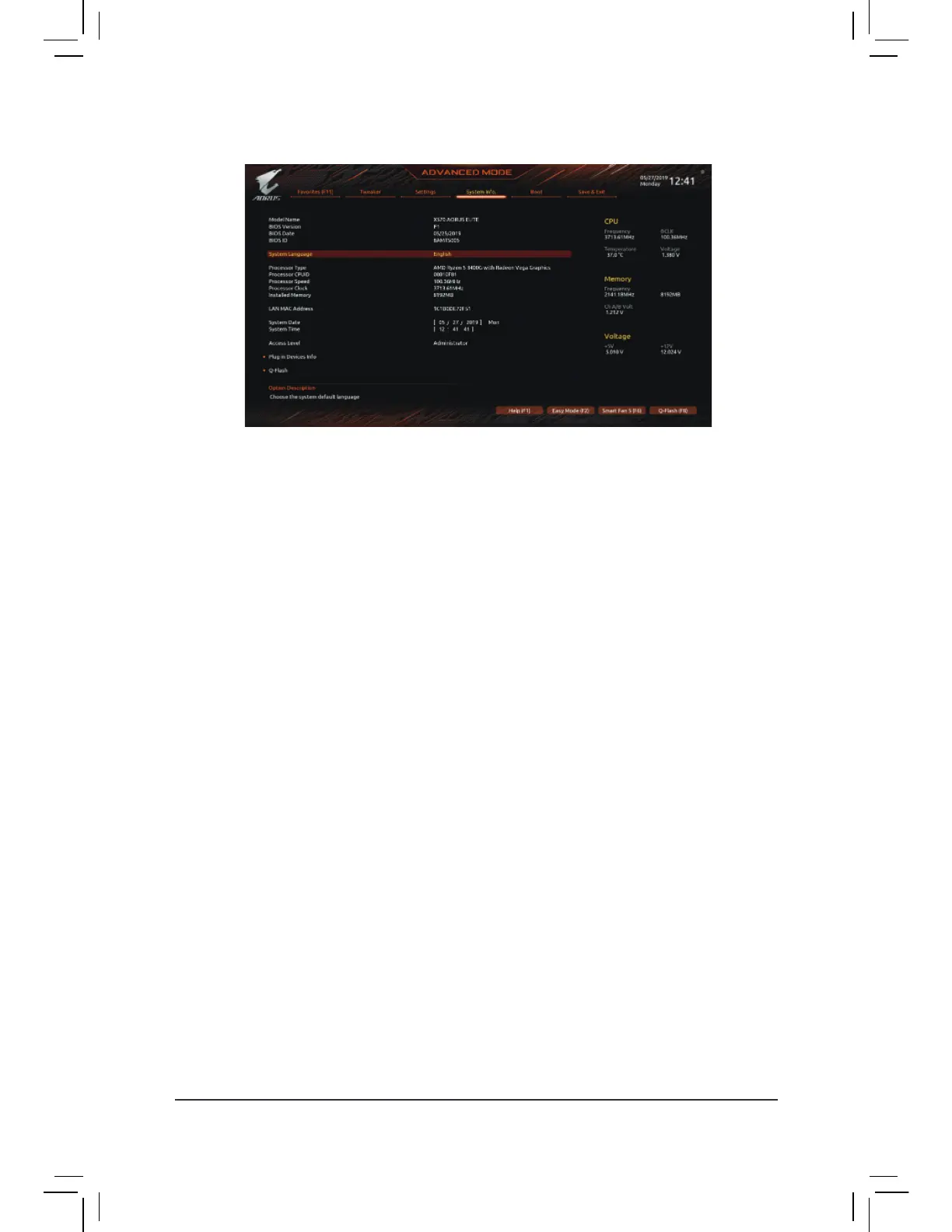

2-6 System Info.
This section provides information on your motherboard model and BIOS version. You can also select the default
language used by the BIOS and manually set the system time.
& System Language
Selects the default language used by the BIOS.
& System Date
Sets the system date. The date ormat is week (read-only), month, date, and year. Use <Enter> to switch
between the Month, Date, and Year elds and use the <Page Up> or <Page Down> key to set the desired
value.
& System Time
Sets the system time. The time format is hour, minute, and second. For example, 1 p.m. is 13:00:00. Use
<Enter> to switch between the Hour, Minute, and Second elds and use the <Page Up> or <Page Down>
key to set the desired value.
& Access Level
Displays the current access level depending on the type o password protection used. (I no password is
set, the default will display as Administrator.) The Administrator level allows you to make changes to all
BIOS settings; the User level only allows you to make changes to certain BIOS settings but not all.
Plug in Devices Info
Displays inormation on your SATA, PCI Express, and M.2 devices i installed.
Q-Flash
Allows you to access the Q-Flash utility to update the BIOS or back up the current BIOS conguration.
- 34 -

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Gigabyte X570 AORUS ELITE WIFI and is the answer not in the manual?

Gigabyte X570 AORUS ELITE WIFI Specifications

General IconGeneral
Processor socketSocket AM4
Processor manufacturerAMD
Compatible processor seriesAMD Ryzen 3 2nd Gen, AMD Ryzen 3 3rd Gen, AMD Ryzen 5 2nd Gen, AMD Ryzen 5 3rd Gen, AMD Ryzen 7 2nd Gen, AMD Ryzen 7 3rd Gen, AMD Ryzen 9 3rd Gen
Maximum number of SMP processors1
Audio chipRealtek ALC1200
Cooling typeActive
Component forPC
Power source typeATX
Motherboard chipsetAMD X570
Audio output channels5.1 channels
Windows operating systems supportedWindows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home x64, Windows 10 Pro x64, Windows 10 x64
ECCYes
Memory channelsDual-channel
Memory slots typeDIMM
Number of memory slots4
Supported memory typesDDR4-SDRAM
Maximum internal memory128 GB
Supported memory clock speeds2133, 2400, 2667, 2933, 3200, 3300, 3333, 3400, 3466, 3600, 3733, 3800, 3866, 4000 MHz
Supported memory module capacities4GB, 8GB, 16GB, 32GB
RAID levels0, 1, 10
Supported storage drive typesHDD & SSD
Supported storage drive interfacesM.2, SATA III
HDD size2.5/3.5 \
Maximum resolution4096 x 2160 pixels
Maximum graphics card memory16384 MB
Parallel processing technology support2-Way CrossFireX, Quad-GPU CrossFireX
Number of M.2 (M) slots2
Number of SATA II connectors0
Number of SATA III connectors6
BIOS typeUEFI AMI
ACPI version5.0
BIOS memory size128 Mbit
System Management BIOS (SMBIOS) version2.7
USB 2.0 ports quantityUSB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Wi-Fi standards802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Bluetooth version4.2
Ethernet interface typeGigabit Ethernet
Bundled softwareNorton Internet Security (OEM version) cFosSpeed
Weight and Dimensions IconWeight and Dimensions
Depth244 mm
Width305 mm
