Gigabyte X570 AORUS ELITE WIFI User Manual

- 5 -

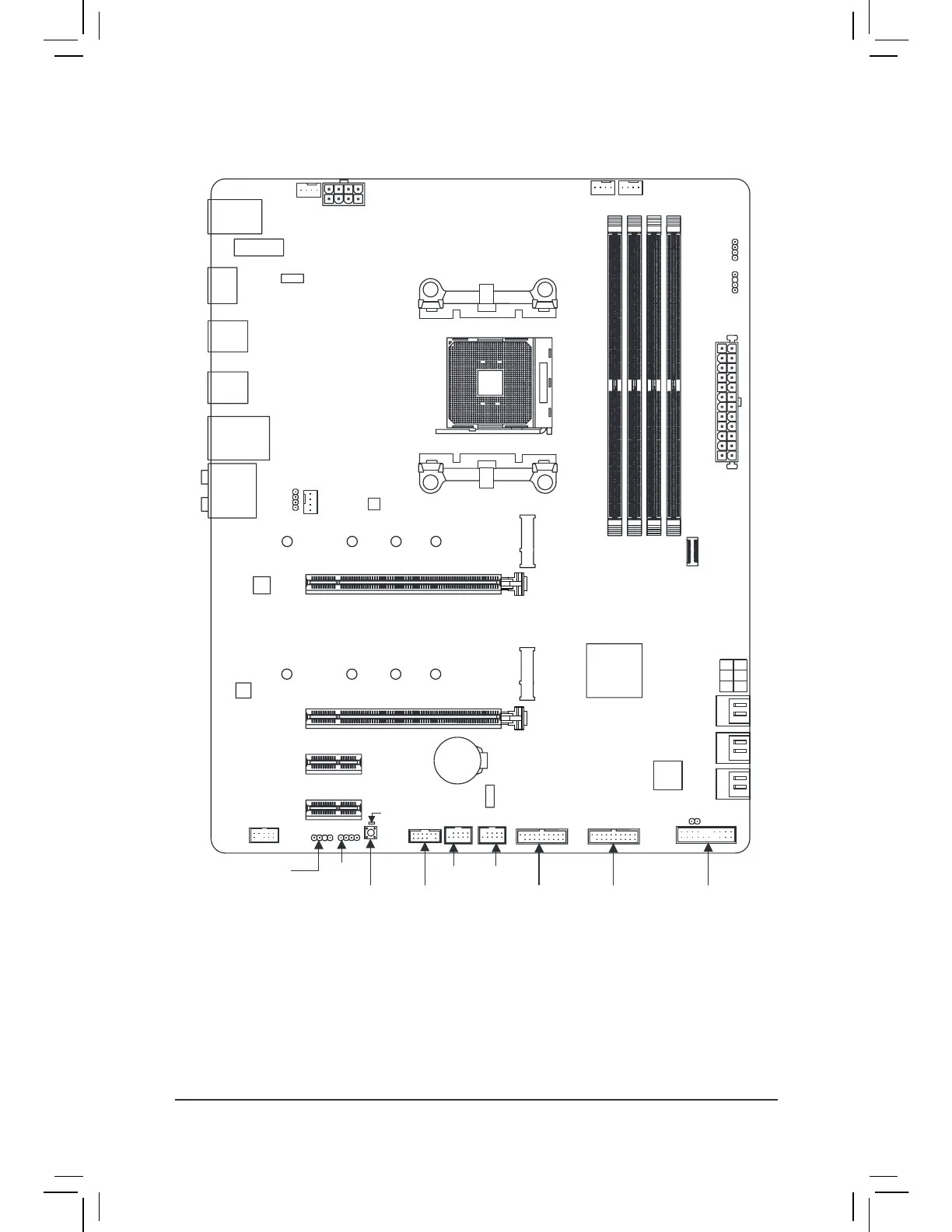

X570 AORUS ELITE/X570 AORUS ELITE WIFI Motherboard Layout
* The box contents above are for reference only and the actual items shall depend on the product package you obtain. The
box contents are subject to change without notice.
Box Contents
5 X570 AORUS ELITE or X570 AORUS ELITE WIFI motherboard
5 Motherboard driver disk 5 One G Connector
5 User's Manual 5 M.2 screw(s)/M.2 standoff(s)
5 Quick Installation Guide 5 One antennaj
5 Four SATA cables
R_USB1
CPU_FAN
ATX_12V
ATX
F_AUDIO
AUDIO
PCIEX4
DDR4_A2 DDR4_B2
F_USB31C
DDR4_A1 DDR4_B1
BAT
F_PANELQFLASH_PLUS
AMD X570
CLR_CMOS
M_BIOS
PCIEX16
F_USB30_2
USB 2.0 Hub
USB 2.0 Hub
Socket AM4
X570 AORUS ELITE
X570 AORUS ELITE WIFI
USB31_LAN
iTE
®
Super I/O
F_USB2 F_USB1
TPM
M2A_SOCKET
SATA3
4 2 0 5 3 1
CPU_OPT
R_USB30_1
HDMI
Intel
®
GbE LAN
PCIEX1_1
PCIEX1_2
LED_C1
80 60 42
F_USB30_1
D_LED1
SYS_FAN1
SYS_FAN2
LED_CPU
110
110
R_USB30_2
LED_C2
CODEC
M2B_SOCKET
80 60 42
D_LED2
QFLED
M2_WIFIj
j Only for the X570 AORUS ELITE WIFI.

Gigabyte X570 AORUS ELITE WIFI Specifications

General

Processor socket	Socket AM4
Processor manufacturer	AMD
Compatible processor series	AMD Ryzen 3 2nd Gen, AMD Ryzen 3 3rd Gen, AMD Ryzen 5 2nd Gen, AMD Ryzen 5 3rd Gen, AMD Ryzen 7 2nd Gen, AMD Ryzen 7 3rd Gen, AMD Ryzen 9 3rd Gen
Maximum number of SMP processors	1
Audio chip	Realtek ALC1200
Cooling type	Active
Component for	PC
Power source type	ATX
Motherboard chipset	AMD X570
Audio output channels	5.1 channels
Windows operating systems supported	Windows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home x64, Windows 10 Pro x64, Windows 10 x64
ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR4-SDRAM
Maximum internal memory	128 GB
Supported memory clock speeds	2133, 2400, 2667, 2933, 3200, 3300, 3333, 3400, 3466, 3600, 3733, 3800, 3866, 4000 MHz
Supported memory module capacities	4GB, 8GB, 16GB, 32GB
RAID levels	0, 1, 10
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA III
HDD size	2.5/3.5 \
Maximum resolution	4096 x 2160 pixels
Maximum graphics card memory	16384 MB
Parallel processing technology support	2-Way CrossFireX, Quad-GPU CrossFireX
Number of M.2 (M) slots	2
Number of SATA II connectors	0
Number of SATA III connectors	6
BIOS type	UEFI AMI
ACPI version	5.0
BIOS memory size	128 Mbit
System Management BIOS (SMBIOS) version	2.7
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Bluetooth version	4.2
Ethernet interface type	Gigabit Ethernet
Bundled software	Norton Internet Security (OEM version) cFosSpeed

Weight and Dimensions

Depth	244 mm
Width	305 mm
