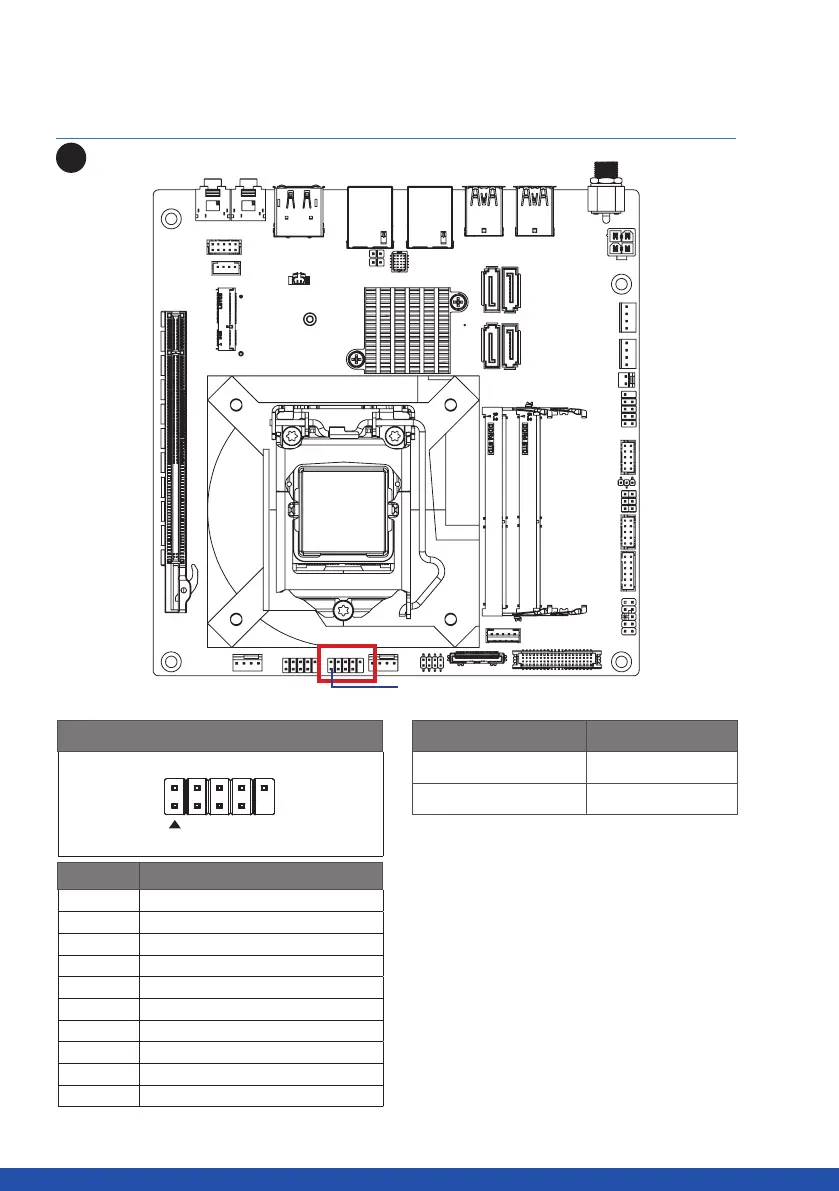

2.2.12 FUSB2_1 (USB 2.0 Header)
16
Pin 1
USB 2.0 Header
2 4 6 8 10
1 3 5 7 9
Pin No. Definition
1 5V
2 5V
3 D2n
4 D1n
5 D2p
6 D1p
7 GND
8 GND
9 No Pin
10 NC
Connector PN Vendor
210-92-05GB04 PINREX
PH10R53BAZ009 HORNGTONG
