GIGAIPC iTXL-Q47EA User Manual

35
www.gigaipc.com
Thin Mini-ITX Motherboard iTXL-Q47EA (MQ47EAT-SI)

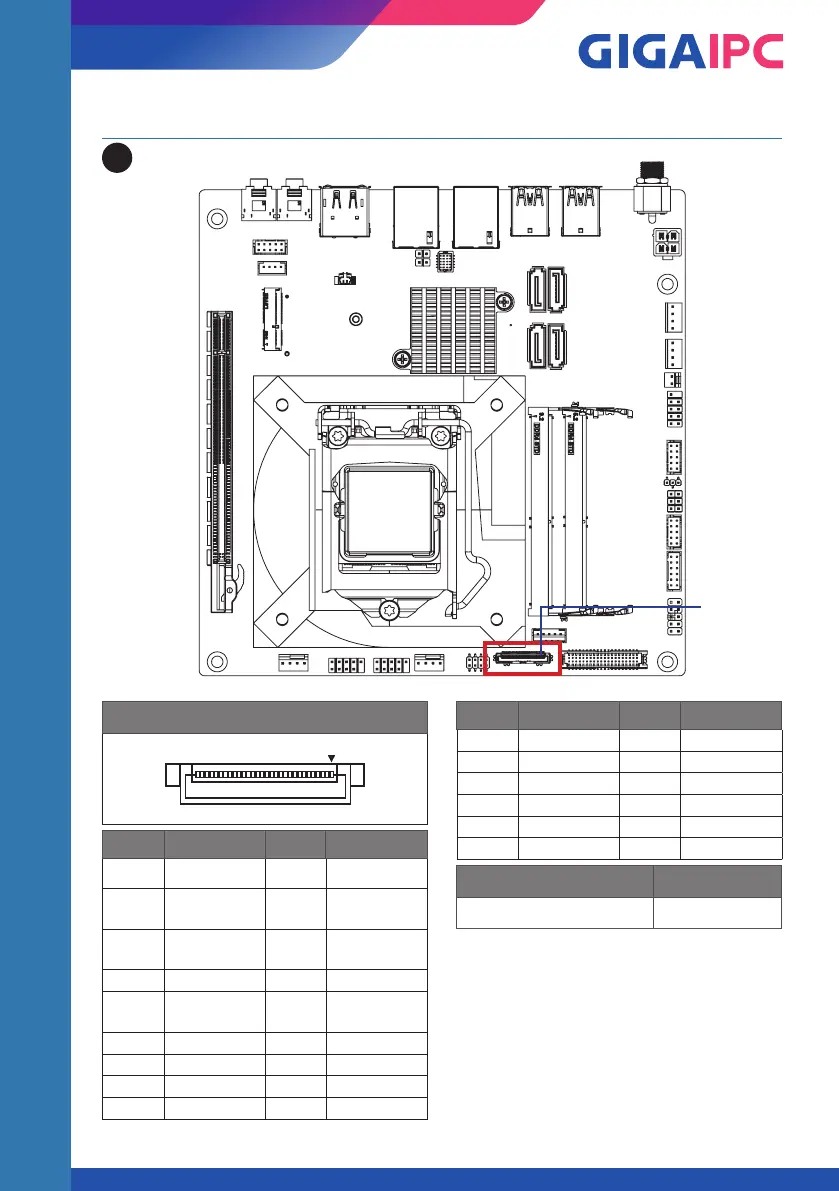

2.2.15 EDP (Embedded Display Port connector)
19
Embedded Display Port connector
eDP
130
Pin No. Definition Pin No. Definition
1 GND 16 GND
2 TX0n 17
Hot Plug
Detect
3 TX0p 18
Backlight
Enable
4 GND 19 GND
5 TX1n 20
Backlight
controll
6 TX1p 21 GND
7 GND 22 3.3V
8 TX2n 23 3.3V
9 TX2p 24 3.3V
Pin No. Definition Pin No. Definition
10 GND 25 3.3V
11 TX3n 26 GND
12 TX3p 27 5V
13 GND 28 5V
14 AUXn 29 5V
15 AUXp 30 5V
Connector PN Vendor
115B30-000040-G4-R STARCONN
Pin 1
