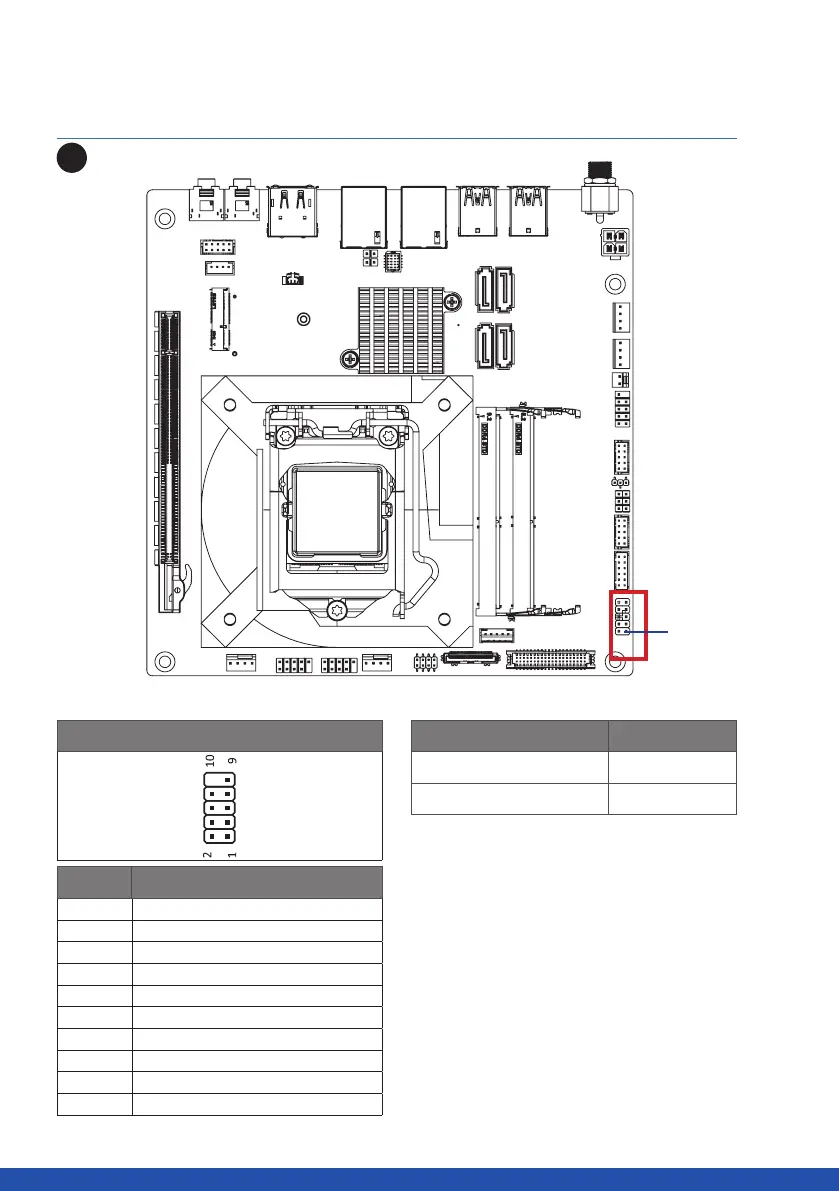

2.2.18 SYS_PANEL (System Panel Header)

System Panel Header

Pin No. Definition

1 HD-P

2 MPD-P

3 HD-N

4 MPD-N

5 GND

6 POWER-ON

7 Reset

8 GND

9 Reserved

10 NC

Connector PN Vendor

210-92-05G111 PINREX

210-92-05GW5W PINREX

Pin 1
