40
www.gigaipc.com

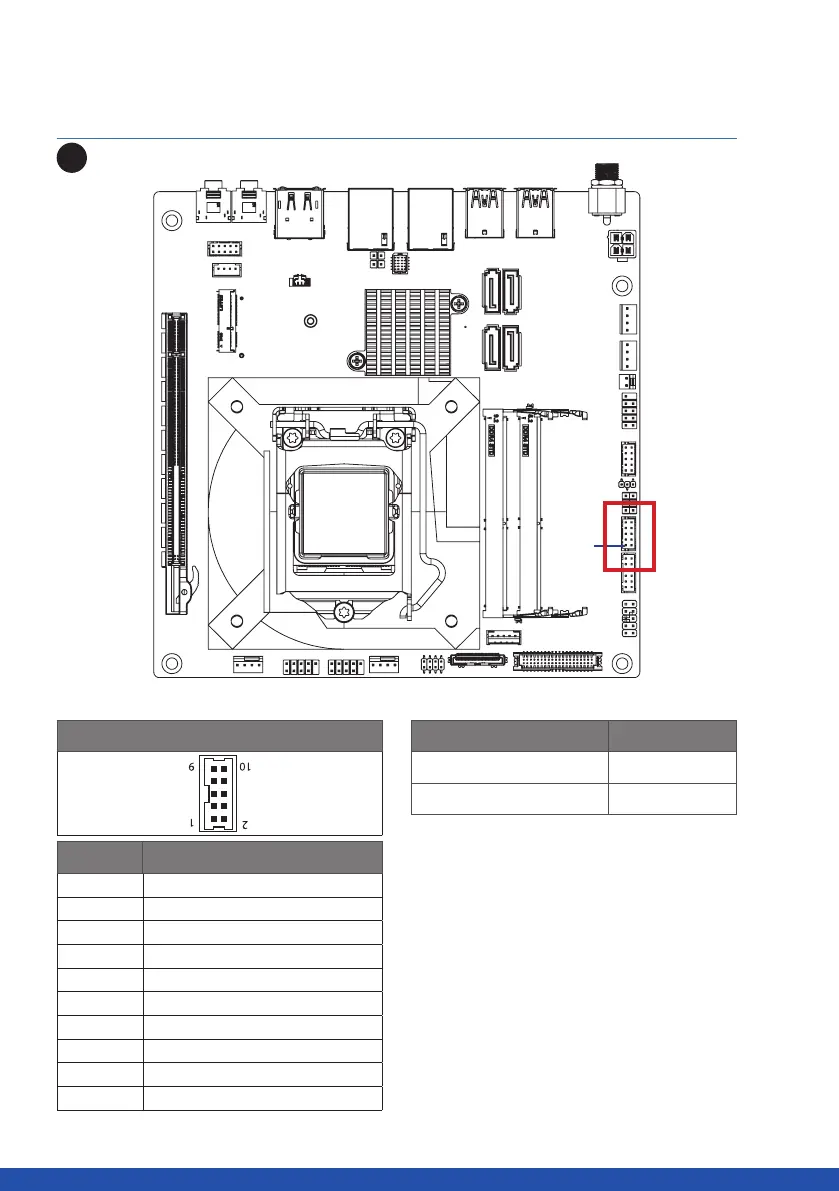

2.2.20 COM1 (COM header RS232/422/485 & 5V/12V/RI)
24
Pin 1
COM1 Connector
Pin No. Definition
1 RX
2 DCD
3 DTR
4 TX
5 DSR
6 GND
7 CTS
8 RTS
9 RI
10 NC
Connector PN Vendor
725-81-10TW00 PINREX
A2004WV-2X05P46 JOINT-TECH
