GIGAIPC iTXL-Q47EA User Manual

37
www.gigaipc.com
Thin Mini-ITX Motherboard iTXL-Q47EA (MQ47EAT-SI)

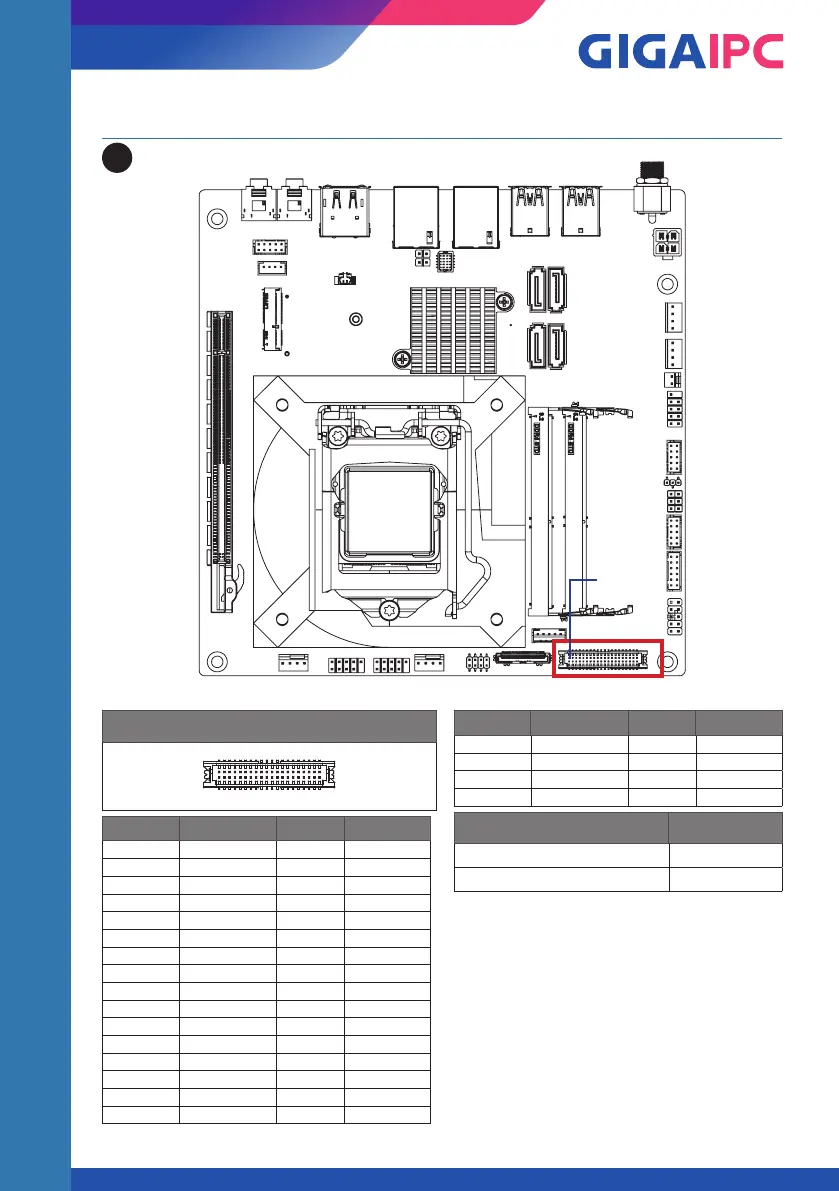

2.2.17 LVDS (LVDS Connector)
21
Pin 1
LVDS Connector
1 39
2 40
Pin No. Definition Pin No. Definition
1 3.3V 21 A5+
2 5V 22 A4+
3 3.3V 23 A5-
4 5V 24 A4-
5 SPEC0 25 GND
6 SPED0 26 GND
7 GND 27 A7+
8 GND 28 A6+
9 A1+ 29 A7-
10 A0+ 30 A6-
11 A1- 31 GND
12 A0- 32 GND
13 GND 33 CLK2+
14 GND 34 CLK1+
15 A3+ 35 CLK2-
16 A2+ 36 CLK1-
Pin No. Definition Pin No. Definition
17 A3- 37 GND
18 A2- 38 GND
19 GND 39 12V
20 GND 40 12V
Connector PN Vendor
712-76-40GWE0 PINREX
A1252WV-SF-2X20PD01 JOINT-TECH
For each model support LVDS function.
But below model no need to add.
A0~A3 is odd channel 0~3, A4~A7 is ev
en channel.
Note: *The LVDS output connector
of the unit is only intended to be
connected to an UL/IEC/EN approval
equipment with fire enclosure.
