24

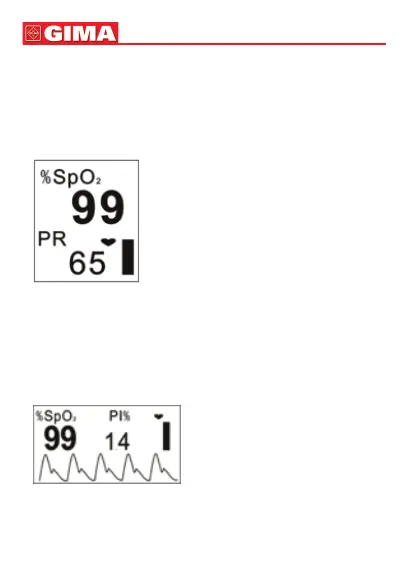

• Press Display Key three times, display screen (as shown in Figure 5)
will be ipped 180°.
• Press Display Key four times, display screen will back to the screen
as shown in Figure 4.
• Press Display Key circularly, display screen will be switched be-
tween the two screens (as shown in Figure 4 and Figure 5), and four
directions display alternately.
Figure 5
6. Longtime press Display Key (about 2 seconds), display screen will be
shown as Figure 6. Differences between Figure 6 and Figure 4 are as
follows:
• In Figure 4,
SpO2
and pulse rate are being monitored and displayed
on the screen.
• In Figure 6,
SpO2
and perfusion index are being monitored and dis-
played on the screen.
Figure 6
7.
When the screen displays as shown in Figure 6, press Display Key
circularly, the display screen will be switched between the two screens
(as shown in Figure 6 and Figure 7), and four directions display alter-
nately.
ENGLISH
