Gima TLC5000 - Page 118

1

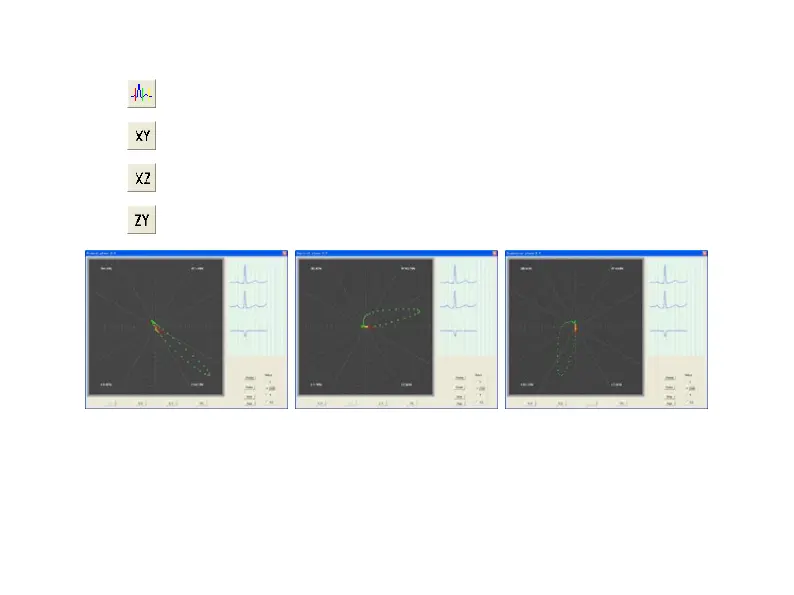

Click button and enter Set VCG Measurement Point.
Click
button and enter Frontal plane X-Y graph (as Fig.6-57).
Click
button and enter Transverse plane X-Z graph (as Fig.6-57).
Click
button and enter Sagittal plane Z-Y graph (as Fig.6-57).
Fig.6-57
