4. Installation
20

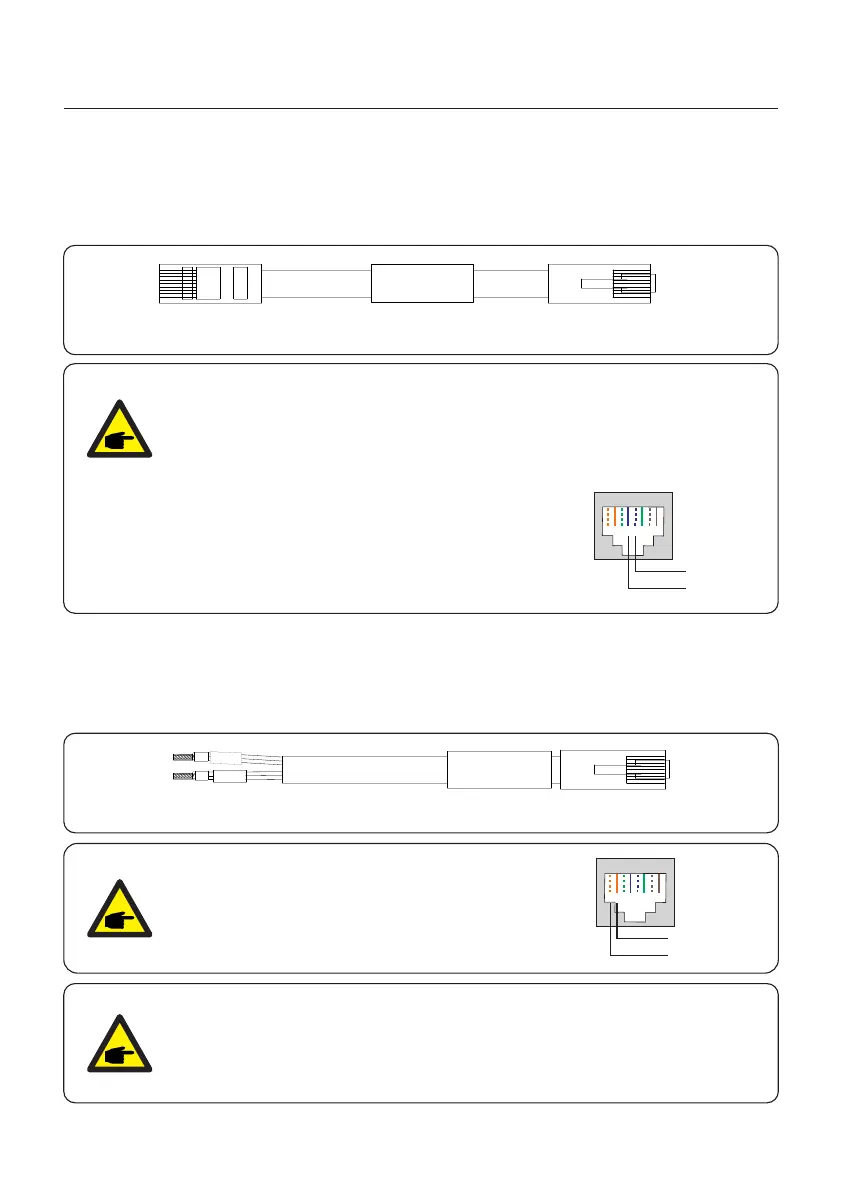

4.7.3 BMS Port Connection
4.7.4 Meter Port Connection
Take out the pre-made CAN cable from the package and connect one end to battery CAN
port and then connect another end to the inverter BMS port. Cable Length: 3 meters.
Take out the pre-made Meter cable from the package and connect RJ45 end to inverter
Meter port and then connect another end with loose RS485 A & B pins to the meter RS485
terminal. Cable Length: 5 meters.
NOTE:
Pin definition of the Meter Port is following
EIA/TIA 568B.
RS485A on Pin Orange/white1:
RS485B on Pin Orange2:
RJ45terminal
1 2 3 4 5 6 7 8
RS485B
RS485A
Figure 4.22
Figure 4.23
NOTE:
Before connecting CAN cable with the battery, please check whether the
communication pin sequence of the inverter and the battery match;
If it does not match, you need to cut off the RJ45 connector at one end of the
CAN cable and adjust the pin sequence according to the pin definitions of
both inverter and battery.
Pin definition of the inverter CAN Port is following
EIA/TIA 568B.
CAN-H on Pin 4: Blue
CAN-L on Pin 5: Blue/White
RJ45terminal
1 2 3 4 5 6 7 8
CAN-L
CAN-H
NOTE:
Compatible Smart Meter Pin definition.
Eastron SDM630MCT – Pin 13 is RS485B & Pin 14 is RS485A.
Eastron SDM630 – Pin B is RS485B & Pin A is RS485A.
CAN
METER
A
B
