User Manual
4. Installation
9
To avoid overheating, always make sure the flow of air around the inverter is not
blocked. A minimum clearance of 400mm should be kept between inverters or
objects and 800mm clearance between the bottom of the machine and the ground.
Adequate ventilation must be provided.
NOTE:
Nothing should be stored on or placed against the inverter.
Install vertically with a maximum incline of +/- 5 degrees, exceeding this may cause
output power derating.
Install on a wall or strong structure capable of bearing the weight of the machine (24.18kg).

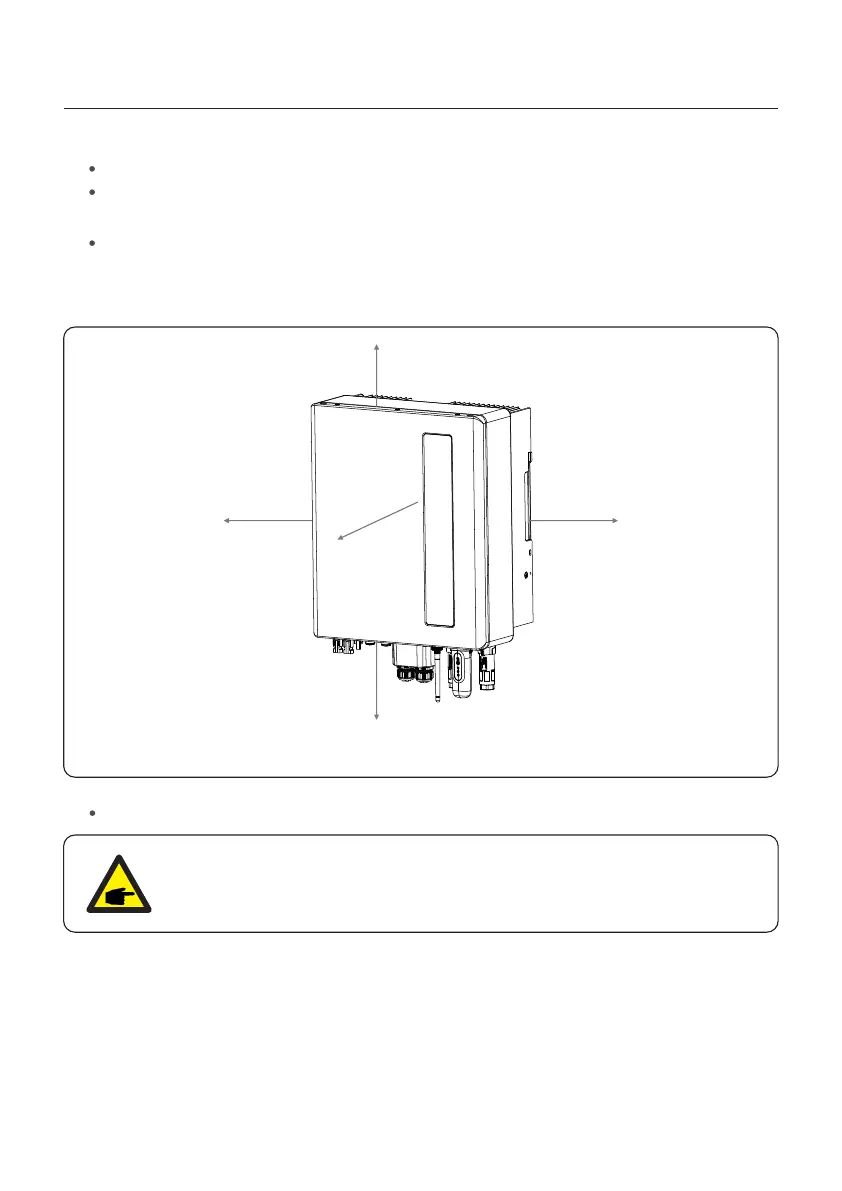

Figure 4.2 Inverter Mounting clearance
≥400mm ≥400mm
≥500mm
≥800mm
≥
1
2
0
0mm
