User Manual
4. Installation
15

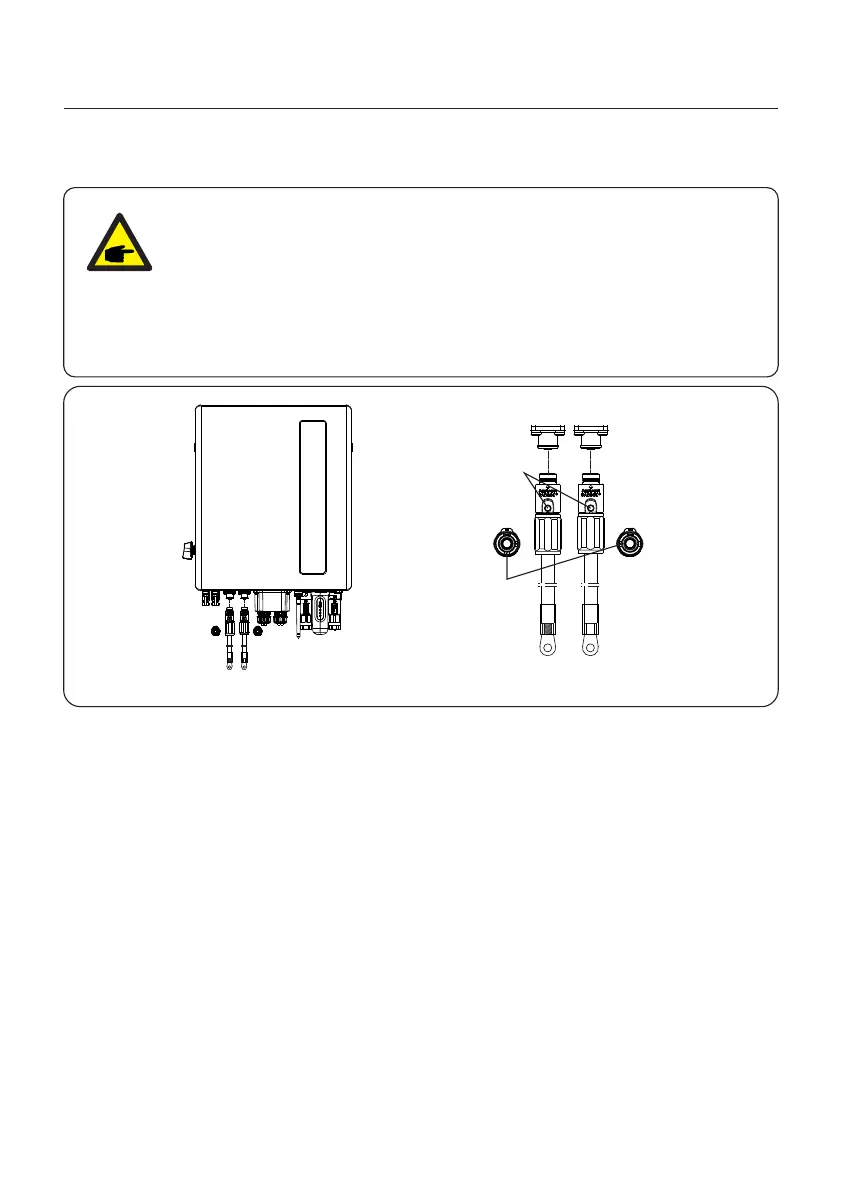

4.5 Battery Power Cable Installation
BAT+
BAT-
Step 6: Installing the battery cable.
NOTE:
1. The positive wiring (the angle of the limit tip is 90°) is connected to the
positive socket, and the negative wiring (the angle of the limit tip is 180°) is
connected to the negative socket;
2. When the terminal is inserted into the corresponding socket, you need
to press the circular button on the terminal lightly and pay attention to the
direction of the limit pin and the socket slot.
BAT+
BAT-
Limit buckle
Round button
Figure 4.13
