Ginlong solis S6 Series User Manual

User Manual
4. Installation
24

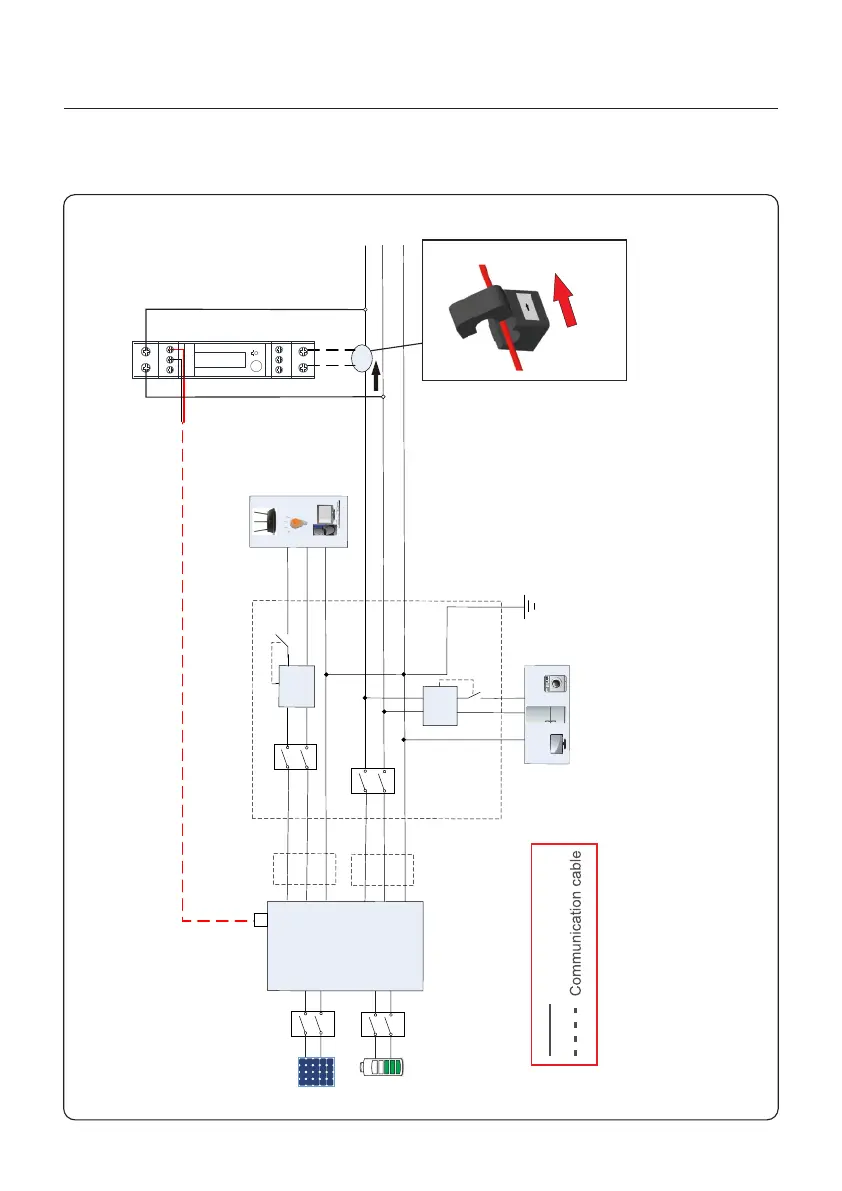

4.8.1 Single phase meter installation
Figure 4.26 (Eastron SDM120CT)
10
5
8
6
SDM120M
9
7
3
4
1
2
1:White
2:Black
S6-EH1P-L
RS485
Meter
Back-up
L
N
PE
L
N
PE
Grid
Distribution box
CB
CB
RCD
L
N
PE
RS485 Meter COM
Pin 9 – RS485A - Black
Pin 10 – RS485B - Red
PE N L
RCD
Load_a
Critical Load
L
N
PE
GRID
PV strings
CB
Battery
CB
CT direction
towards to grid
Power cable
Note:
If the CT is installed in the wrong direction,
the Hybrid Inverter can't work normally.
Grid
si
d
e
K
L
