Gio Electric H1 Volt - Brake Caliper Components Definition

12

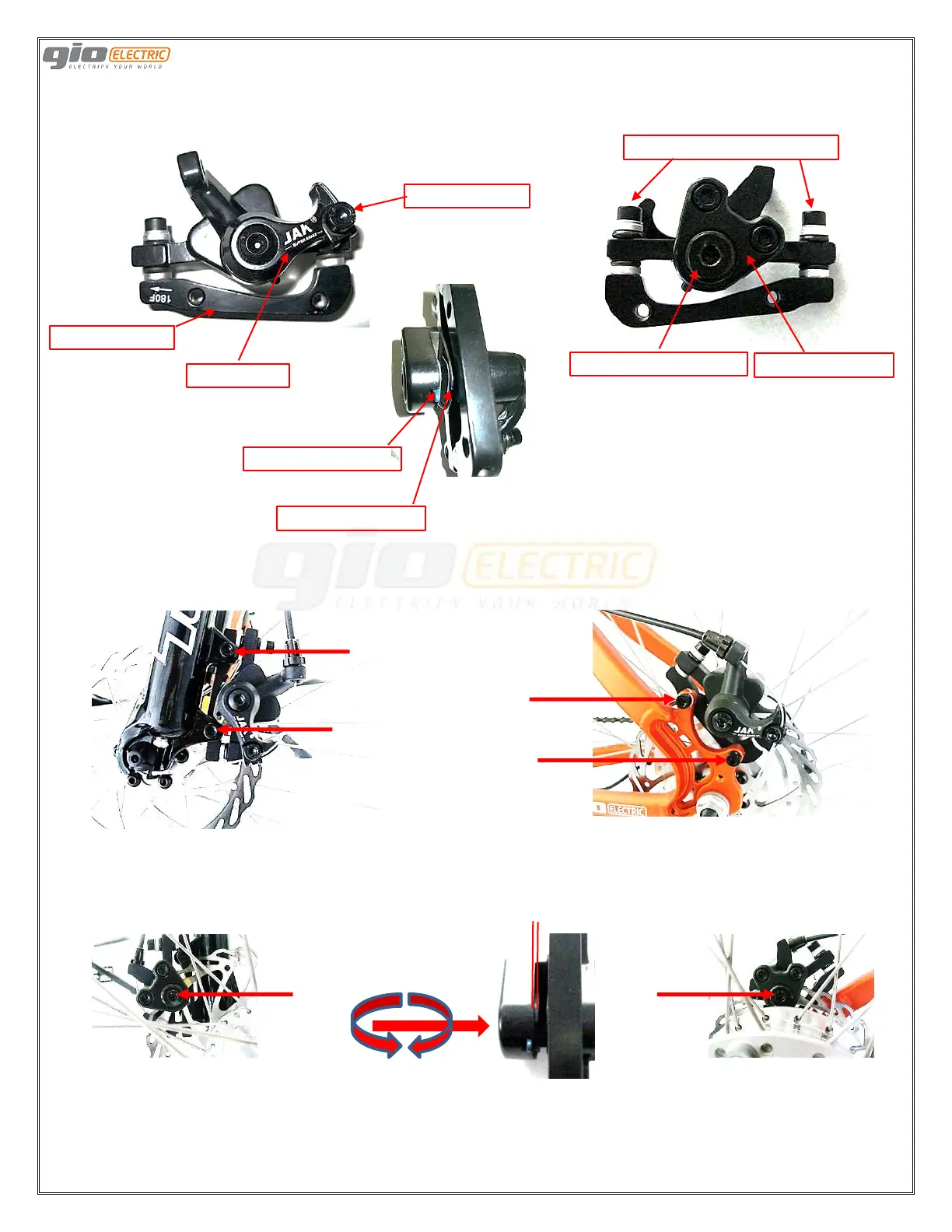

3.5.1 Brake caliper components definition
a. Make sure two caliper mount bolts are tighten
b. Tighten or loosen stationary (inner) pad adjuster clockwise until stationary pad sticking ≈2mm
from the housing
Mount adjustment bolt
Stationary pad adjuster
Brake arm
Cable pinch bolt
Stationary (inner) pad
Brake pads housing
Caliper mount
Mobile (outer) pad
2 mm
