7.5 Exchanging labelling field
The rocker has a labelling field
￭ Search for a notch in the cover of the labelling field by feeling with a finger
(see figure 9).
￭ Pull on one side at the notch in the cover of the labelling field to separate from
the rocker (see figure 10).
The labelling field is uncovered.

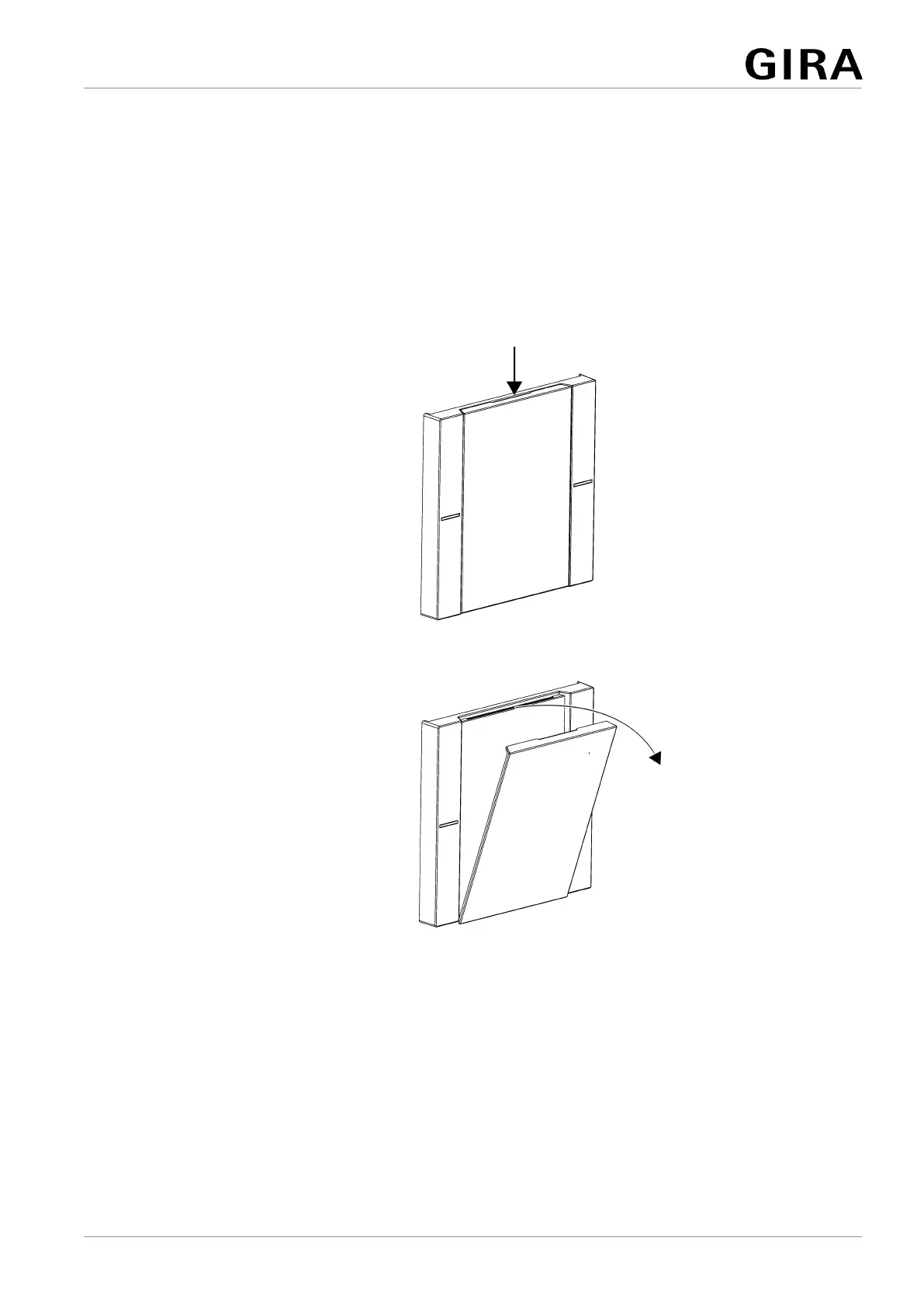

Figure9: Feel for a notch in the labelling field cover
Figure10: Remove the labelling field cover
￭ Exchange the labelling field.
￭ Press the cover of the labelling field onto the rocker so that it snaps into place.
The labelling field is exchanged.
