8 Technical data
Rated voltage DC 21 ... 32 V SELV
Current consumption, bus 8 ... 18 mA
Connection type for bus Device connection terminal
Connecting cable, bus EIB-Y (St)Y 2x2x0.8
Protectionclass III
Installation dimensions
(see figure 11)
Construction height A = 11.9 mm
A = 12.5 mm (stainless steel rocker set)
Installation depth B = 13.8 mm
Connection cable remote sensor (see accessories)
Cable type extension NYM-J 3×1.5 or
J-Y(St)Y 2×2×0.8
Total length remote sensor line Max. 30 m
Ambient conditions
Ambient temperature -5 ... +45°C
Storage/transport temperature -20 ... +70°C

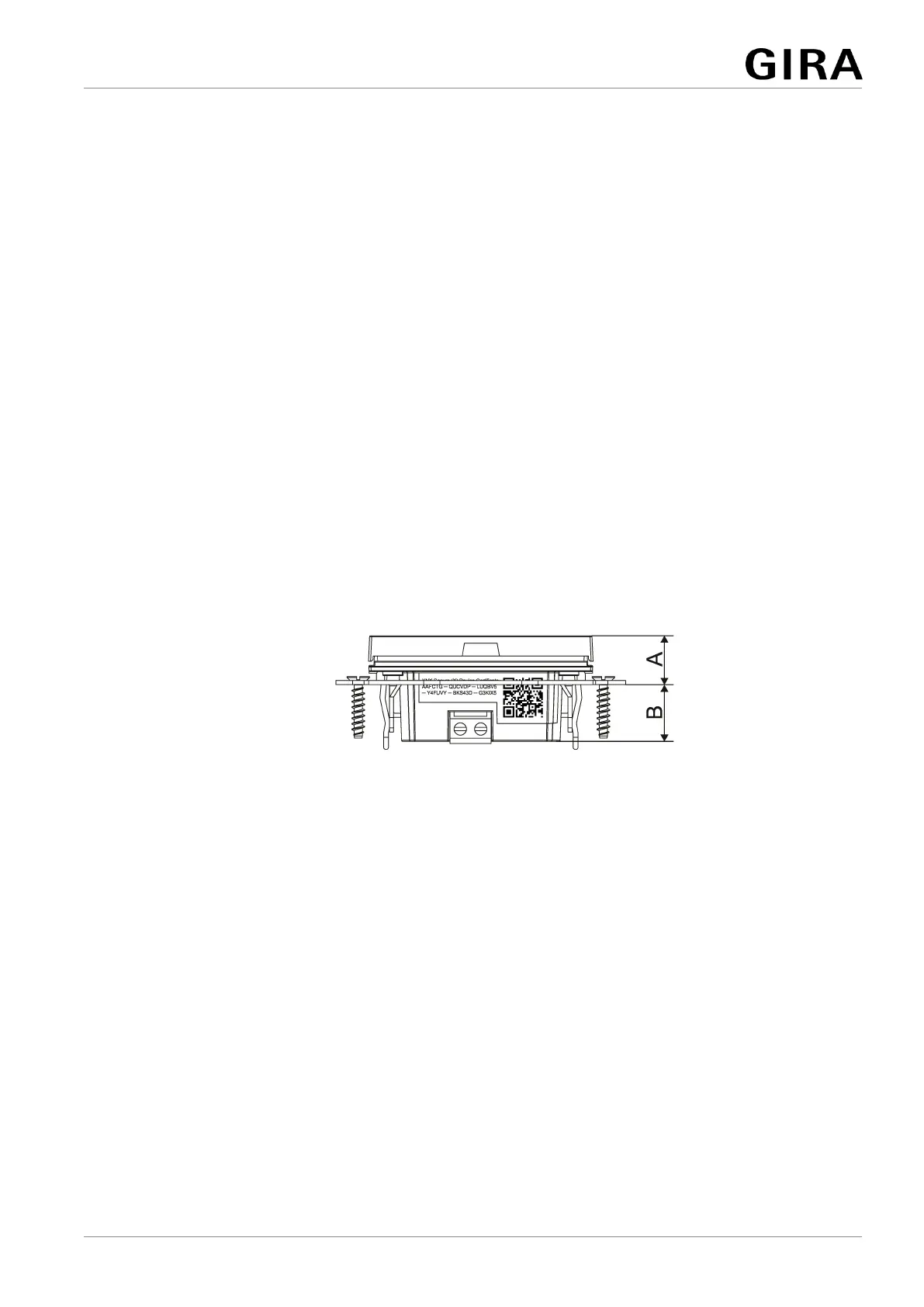

Figure11: Installation dimensions
