2 Device components
Front view

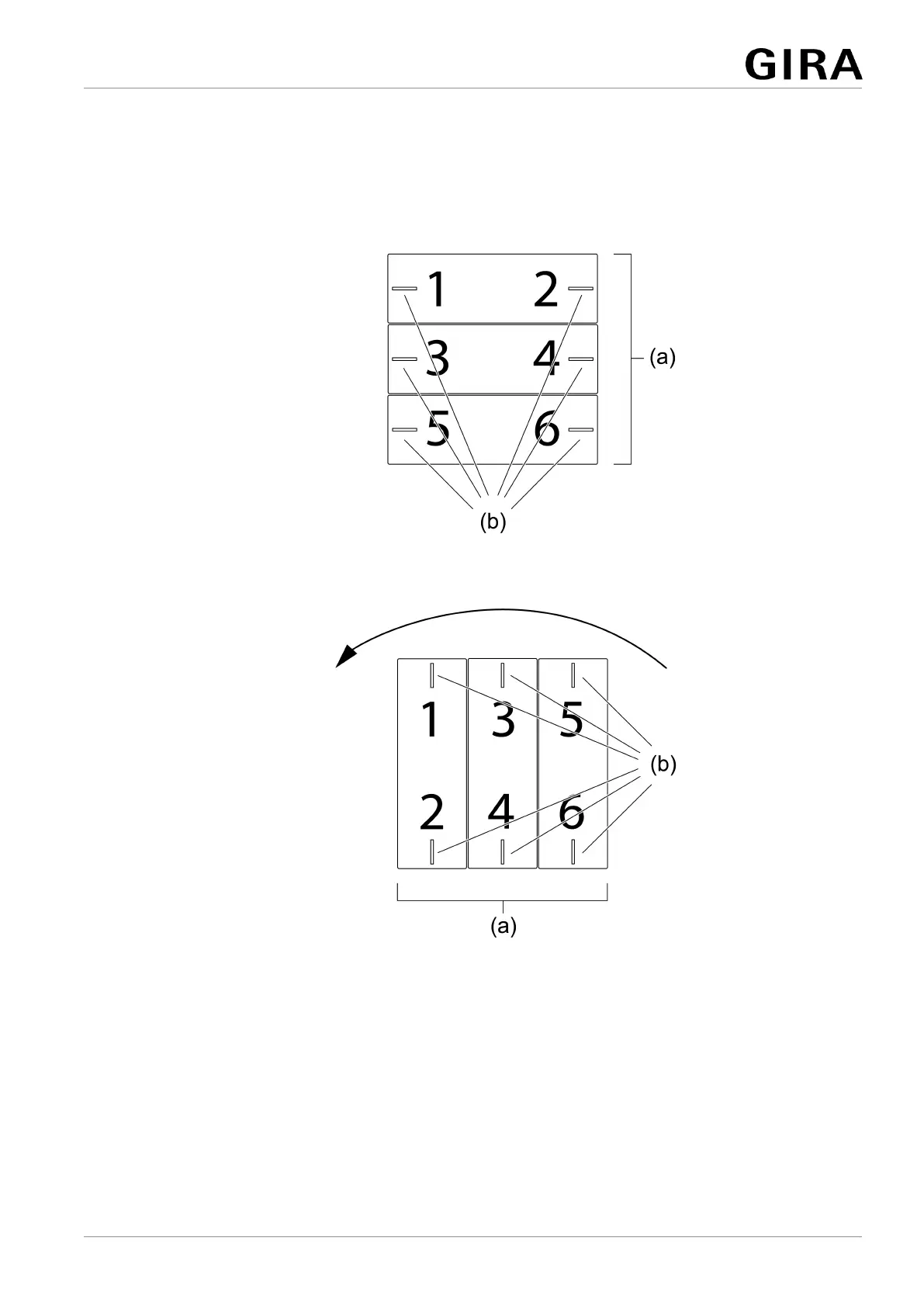

Figure1: Device components 3-gang ("standard installation position", horizontal rock-
ers)
Figure2: Device components 3-gang (installation position "turned by -90°", vertical
rockers)
(a) Operating rockers (accessory)
(b) Status LED
1...6 Buttons assignment and status LED
