Mounting The Bracket
To Mount To A Wall
7
2. Use a 1/2" diameter 2.26in long drill bit to drill the 4 marked holes. Hole depth is
important. You may choose to measure a 1.96in depth on the drill bit itself and mark
it with a small piece of tape so you know when you’ve drilled the appropriate depth
into the wall. Using a correctly sized drill bit will ensure a secure installation of the
wall bracket. To make sure the wall anchors have a secure fit, you may choose to
drill a slightly smaller hole first, then size up if it proves too small for the wall anchor
1. Once you’ve chosen a location for your retractable hose reel, use the bracket
installation template on the page 3 of this manual to mark the location of 4 holes
for drilling, or place the mounting bracket itself up to the wall to mark the location of
the screw holes for drilling.

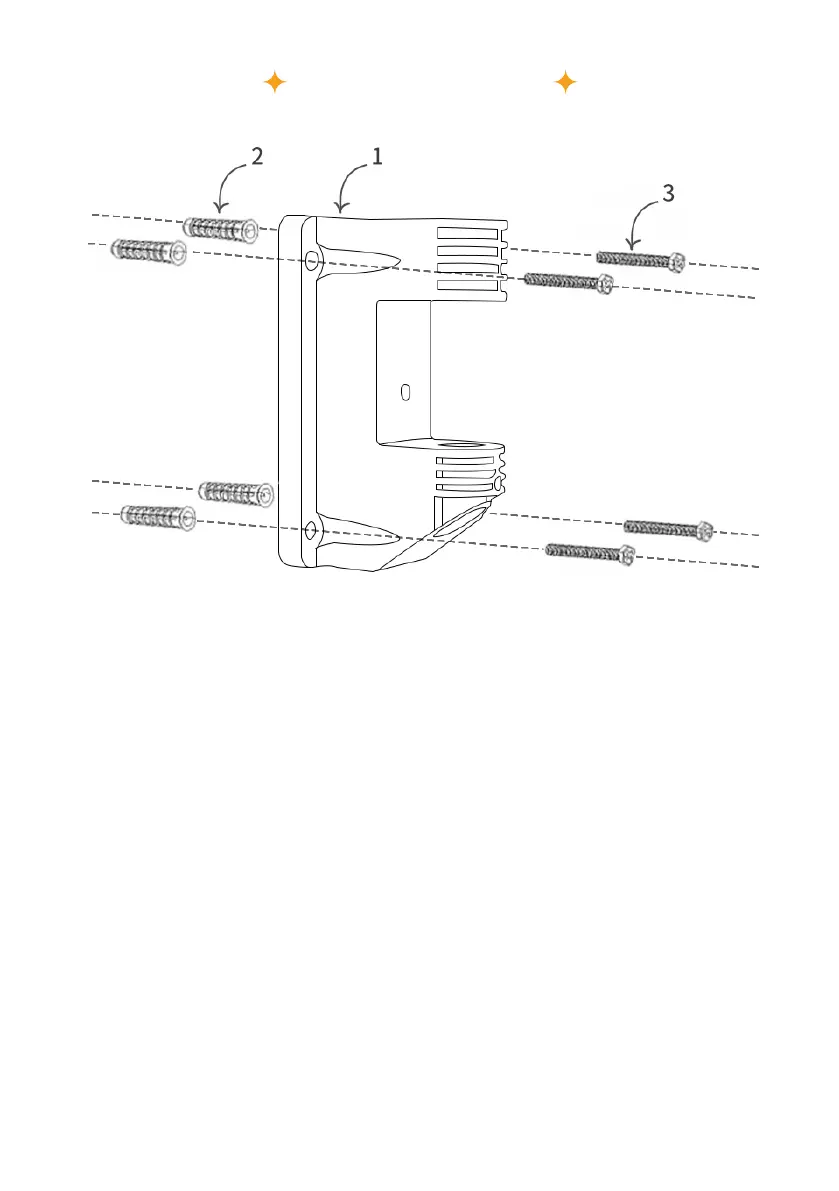

Diagram A: 1-Bracket, 2-Wall anchors, 3-Screws
