Giraffe Sure-Grip - Attaching Extension Pole to Motor Drive; Attaching Sure-Grip System

9
ASSEMBLY
ATTACHING ADJUSTABLE EXTENSION POLE
TO MOTOR DRIVE
See Figure 2
 Twist threaded end of extension pole counterclockwise
into threaded receptacle of motor drive.
 Turn locking screw on motor drive clockwise to secure.
 Turn bottom portion of pole clockwise to extend or
retract top portion of pole to desired length.
 Turn bottom portion of pole counterclockwise to lock-
pole into position.
NOTE: Any standard extension pole can be used with the
Sure-Grip™ system. When fully extended, length of the
pole and assembled Sure-Grip™ system should not
exceed 12 ft.
ATTACHING SURE-GRIP™ SYSTEM
See Figure 3.
 Align groove in Sure-Grip™ system with groove in
motor drive.
 Slide Sure-Grip™ into place.
NOTE: Ensure Sure-Grip™ is locked into place before
using.
To remove:
 Push down on release button on motor drive.
 Slide Sure-Grip™ off of motor drive.
MOTOR DRIVE
EXTENSION POLE
LOCKING SCREW
MOTOR DRIVE
SURE-GRIP™
SYSTEM
RELEASE BUTTON

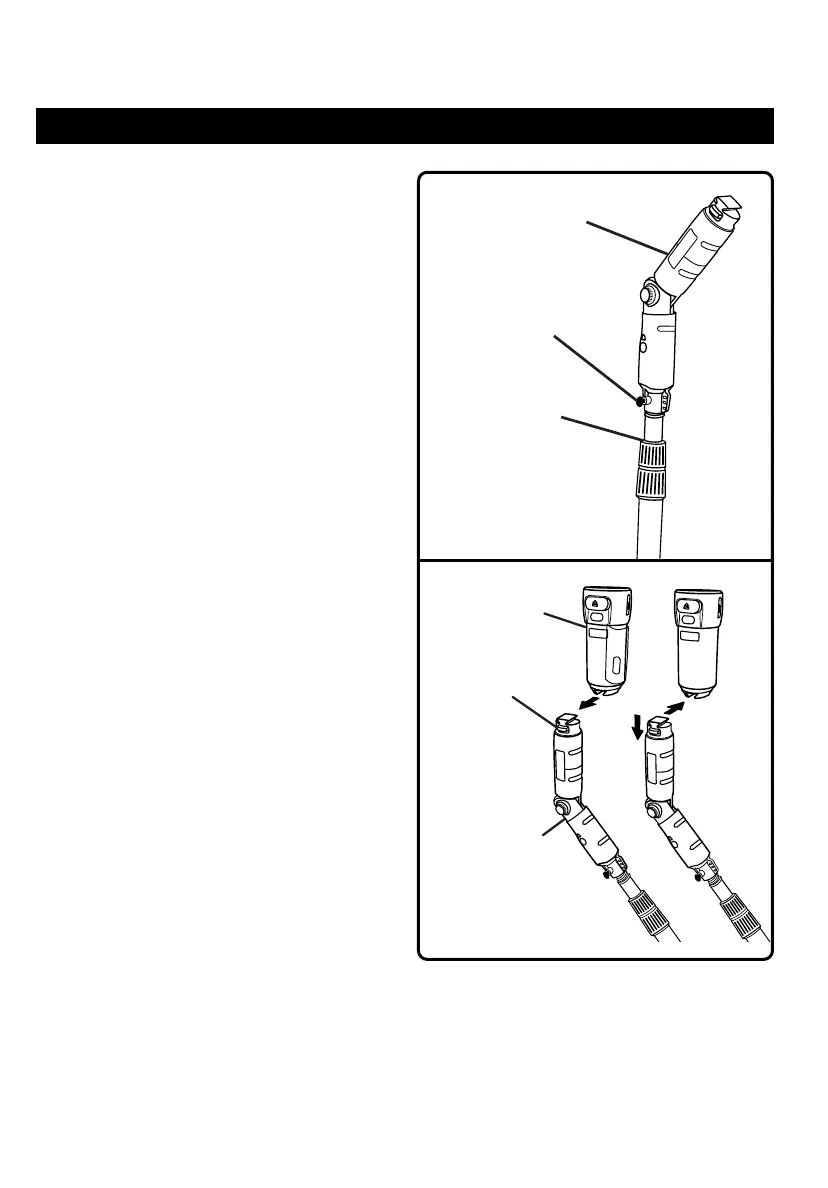

Fig. 2
