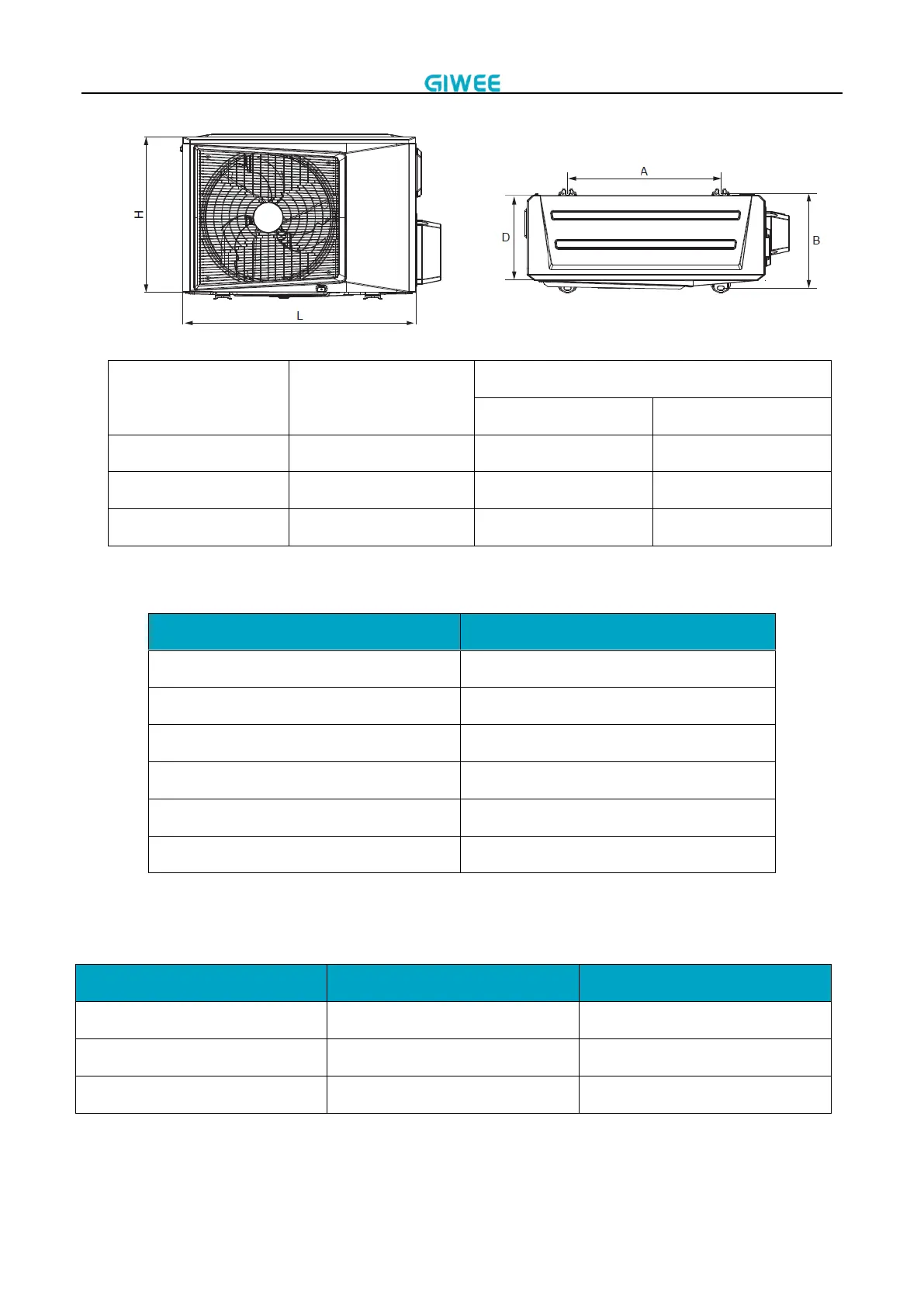

GIWEE R32 - Refrigerant Piping Connection

25
Model
ODU dimension(mm)
L*H*D
Mounting dimension
A
B
9K/12K
805*495*305
453
280
18K
880*555*345
508
314
24K
935*702*382
544
353
IV. Connect signal and power cables
Rated Current of Appliance (A)
Nominal Cross-Sectional Area (mm²)
>3 and =<6
0.75
>6 and =<10
1
>10 and =<16
1.5
>16and =<25
2.5
>25 and =<32
4
>32 and =<40
6
4.3 Refrigerant piping connection
4.3.1 Longest pipe length
Model
Max. length (m)
Max. drop height (m)
9K/12KBtu/h
25
10
18KBtu/h
30
20
24K Btu/h
30
20
4.3.2 Connect pipe to indoor unit
Align the center of the two pipes that you will connect.
