1 X
RFX THREE CHANNEL RECEIVER
The RFX receiver picks up the radio
transmission activity information from
the Opal RFX detectors. The receiver will
only pick up information from the
detectors once they have transferred the
individual code via the secure wire code
learning link. This transfer is only required
on the initial setup, any changes to the
detector programming will be relayed by
radio instantly to the receiver.
For correct alignment of the aerial (13) it
is important to mount the receiver
vertically to a secure surface indoors,
preferably on an exterior wall.
If extended range of upto 200 metres is
required, extend the aerial of the receiver
vertically.
Do not alter the length of the aerial lead as
the optimum length is supplied.
FEATURES:
1) 2 pin secure wire code connector
2) Power Supply input (din socket)
or (3) optional screw terminals for
connecting '-' and '+' to GJD controllers
4) Low Battery Output (LO)
5) 'A' outputs for each detector which
activate on detection (24 hour) with
individual timers
6) 'S' output - light level controlled
7) RF output - will switch to common
when a detector is out of range or
jamming signal is present.
8) Select normally open or normally
closed 'A' outputs only
9) Loss of RF signal indicator this will
indicate 5 minutes after not receiving
a
signal from a registered detector the
corresponding 'A' indicator will also
flash.
10) Channel buttons and detector
indicators
11) Battery low indicator corresponding
'A' indicator will also flash.
12) Reception - gives a visual
indication of the radio
signal being received.
(a) Flicker = normal
(b) Flashing every 5 seconds = low
battery, loss of signal.
A1
A2
A3
RFX3
GJD
COM
24V 250mA
LO
A1
A2
A3
S
RF
RF
LN
RATED AT
12V
N
/
O
N
/
C
AOUTPUTS
10
11
12
13
8
7
6
5
4
3
2
1
9

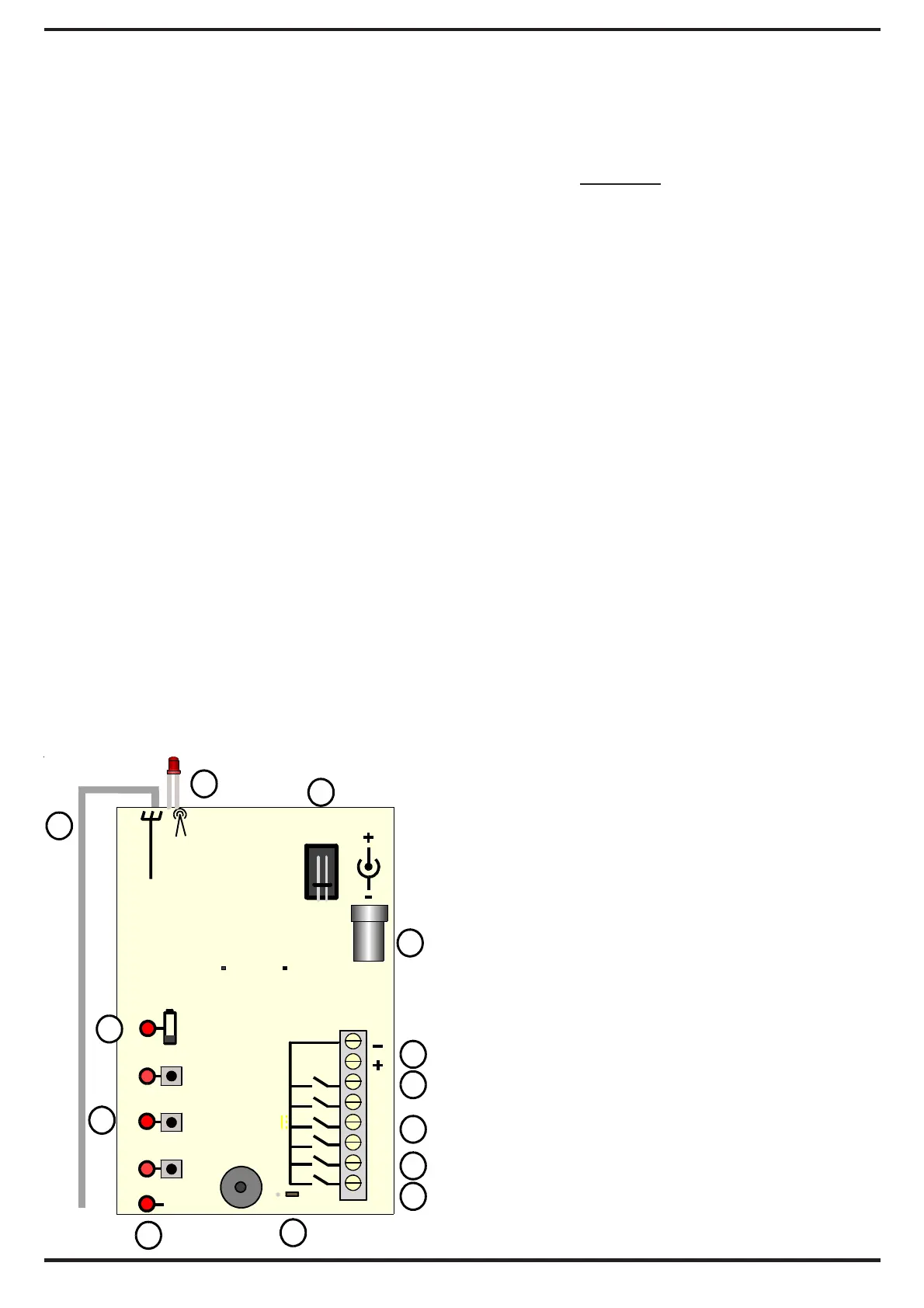

(fig 1)
