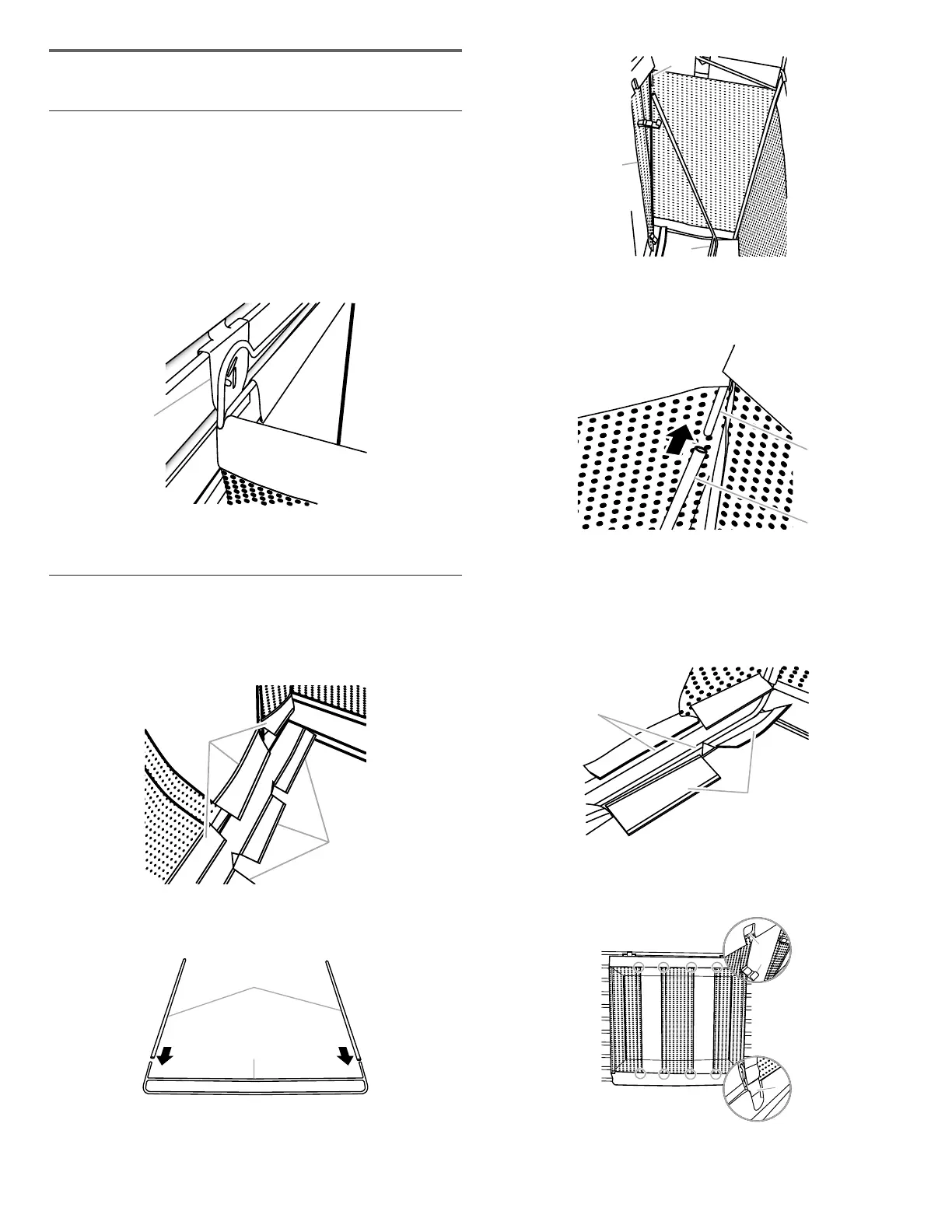

BALL CADDY
Mount the Ball Caddy to
GearTrack
®
channel or
GearWall
®
panel for Assembly
1. Align the mounting brackets, one on each side of the rear
frame, with the desired slots in the GearWall
®
panel or
GearTrack
®
channel.
2. Engage the bracket rims into the slots in the GearWall
®
panel
or GearTrack
®
channel by lifting up, pushing toward the wall
and lowering the rims into the slots.
A
A. Mounting bracket
3. Inspect the ball caddy from the side to ensure the bracket
rims are fully engaged in the slots.
Assemble Ball Caddy
IMPORTANT : Before assembling, rst mount the ball caddy
to GearWall
®
panel or GearTrack
®
channel.
1. Reach inside the ball caddy and unfasten the fabric closures
running along the bottom front of the caddy.
A
A
A. Fabric closures
2. Slide the hollow metal rods onto each end of the lower frame,
as shown.
A
B
A. Hollow metal rod
B. Lower frame
3. Holding the lower frame where it is joined with the metal rods,
place the frame, bottom edge down, into the ball caddy at an
angle.
C
A
B
A. Upper frame
B. Ball caddy front
C. Lower frame
4. Slide the hollow metal rods that are joined to the lower frame,
onto each end of the upper frame, as shown.
A
B
A. Upper frame
B. Ball caddy front
5. Pull the lower frame forward until it is between the fabric
closures at the bottom of the ball caddy. Fasten the fabric
closures around both cross bars of the lower frame.
NOTE : Make sure the fabric closures are fastened tightly
around both the upper and lower crossbars of the frame.
B
A
A. Crossbar
B. Fabric closures
6. Attach the eight hooks, one on each end of the four elastic
straps, onto the upper and lower frame, as shown.
B
B
A
A. Upper frame
B. Hook
