CLEAN-UP CADDY
Assemble Clean-Up Caddy
F3b
F3b Phillips-head screw (2)
F10
F10 Acorn nut (6)

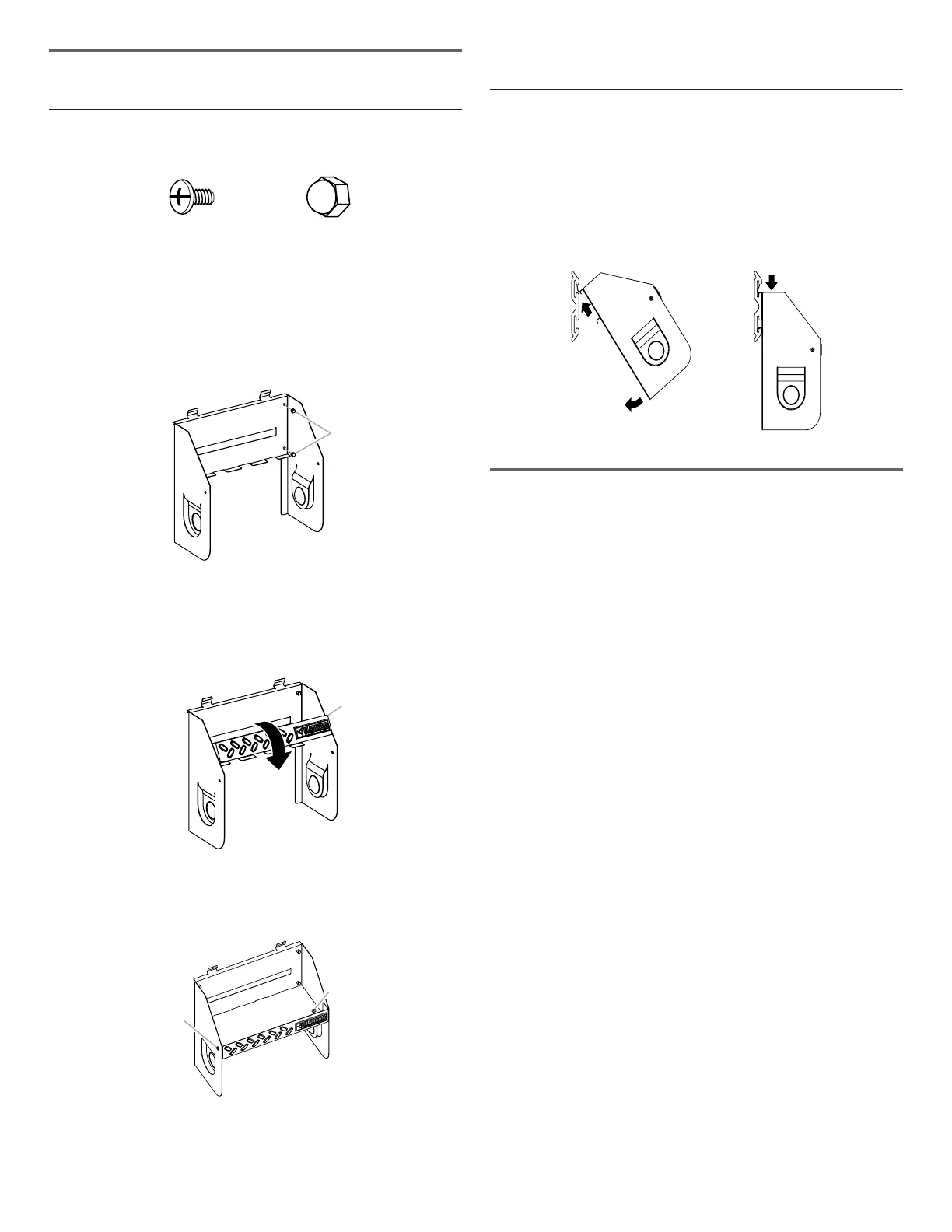

1. Insert the threaded studs at the top of each side piece into the
two holes in each side of the caddy back.
NOTE : Make sure the bracket rim on the caddy back is to the
outside of the side pieces.
2. Using two acorn nuts (F10) per side, attach the sides to the
back. Completely tighten with a
3
/
8
” (9.52 mm) nut driver.
A
A. Acorn nuts (F10)
3. Attach the caddy shelf (with the name badge facing up) by
interlocking the shelf tabs with the tabs on the back.
NOTE : Make sure the lower mounting bracket is fully
engaged in the slots.
A
A. Bottom piece
4. Using the two Phillips-head screws (F3b) and two acorn nuts
(F10) fasten the caddy shelf to the sides.
A
B
A. Phillips-head screw (F3b)
B. Acorn nut (F10)
5. Holding each screw in place with a screwdriver, completely
tighten the acorn nut with the nut driver.
Mount the Clean-Up Caddy to
the Wall
1. Engage the bracket rims located on the back of the caddy
into the slots in the GearWall
®
panel or GearTrack
®
channel by
lifting up, pushing toward the wall and lowering the rims into
the slots.
2. Inspect the caddy from the side to ensure the bracket rims are
fully engaged in the slots as shown.
