Glen Dimplex System 30 - Technical Data

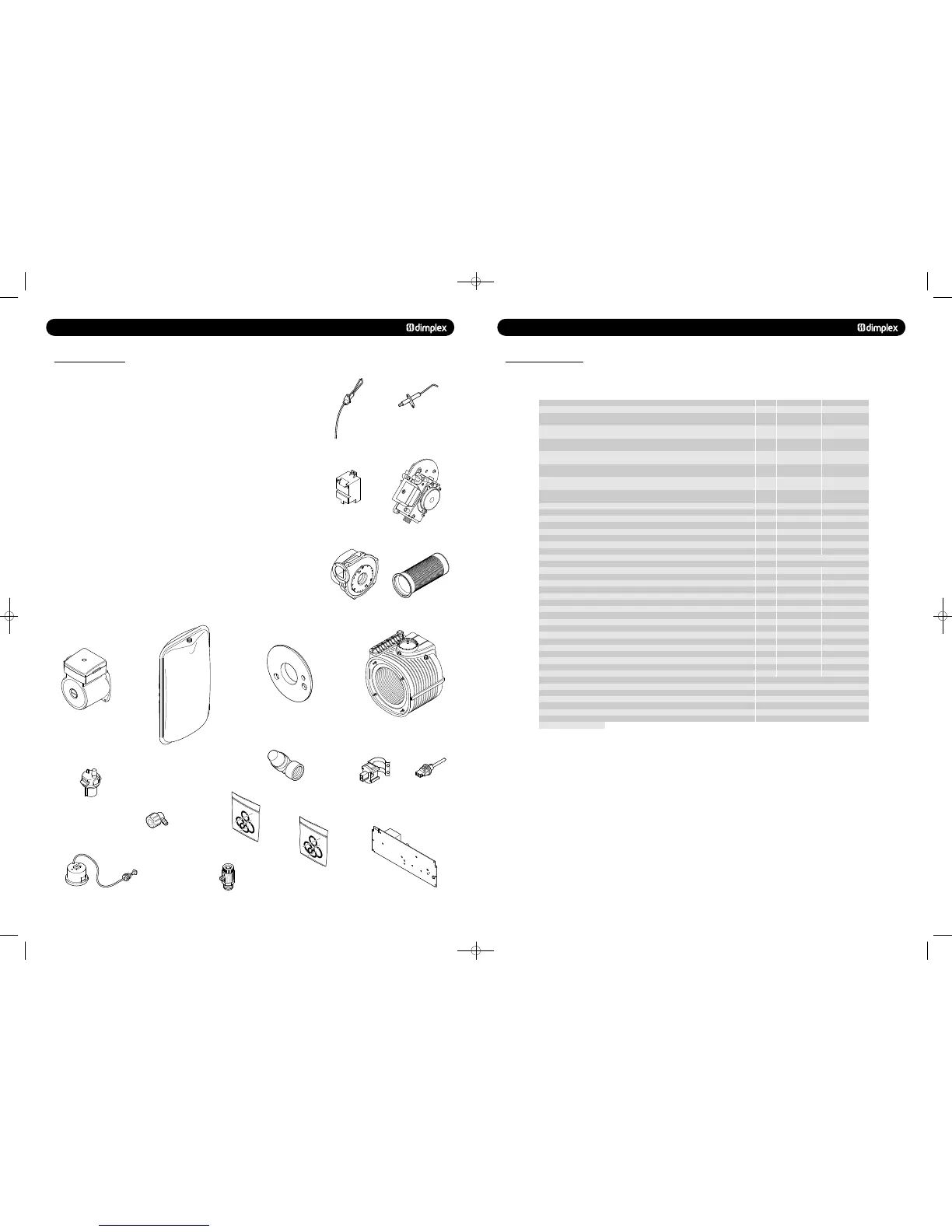

15.0 SPARE PARTS
15.1 SHORT PARTS LIST
40
© Dimplex Boilers 2008
Key GC Number Description QTY Pt. No.
1 H29-740 Electrode - Ignition c/w Gasket 1 988526
2 H38-213 Detection Electrode c/w Gasket 1 988540
3 H29-236 Spark Generator c/w Lead 1 500665
4 TBA System 18 & 30 gas control valve assembly NG 1 988660
5 H38-215 Fan Assembly 1 601016
6a H29-172 Burner (System18) 1 700600
6b TBA Burner (System 30) 1 700602
7 TBA Burner Door Insulation 1 352671
8a H38-217 Heat Exchanger (System18) 1 451101
8b TBA Heat Exchanger (System 30) 1 451151
9 H29-202 Pump Head 6m 1 500672
11 H29-237 Expansion Vessel 1 451020
12 TBA 3 Bar Pressure Relief valve 1 500751
13 H29-213 Water Temperature sensor 2 500661
14 H38-219 Flue Thermistor 1 500662
16 E23-541 Pressure Gauge 4bar 1 450961
17 TBA Auto Air Vent 1 500752
18a TBA Dimplex System 18 NG PCB Kit 1 988663
18b TBA Dimplex System 30 NG PCB Kit 1 988583
22 H29-179 Valve - Manual Bleed 1 300730
23 H38-226 Heat Exchanger seal & Clip Kit 1 988546
24 H29-208 Hydroblock - O-Ring and Clip 1 988669
25 TBA Hydroblock Manual bleed cock 1 500708
1
2
3
4
5
6
8
7
12
13
14
11
16
9
22
17
23
24
25
18
4.0 TECHNICAL DATA
4.1 PERFORMANCE DATA
© Dimplex Boilers 2008
9
Appliance Classification C13, C33, C53, B23 System 18 System 30
Mode Rate
Output (non-condensing)(80-60°C) Max kW 18.1 29.8
Min kW 6.0 8.1
Output (condensing)(50-30°C) Max kW 19.7 32.5
Input Max Rate Net kW 18.4 30.4
Gross kW 20.4 33.7
Input Min Rate Net kW 5.4 7.6
Gross kW 6.0 8.4
Gas Rate (after 10 min operation - hot) Max m
3
/h 1.95 3.2
Seasonal Efficiency % 90.3 90.3
Seasonal Efficiency (SEDBUK) Band “A” “A”
Nox Classification Class “5” “5”
Min System Pressure Bar 0.5 0.5
Max System Pressure Bar 2.5 2.5
Max Central Heating Flow Temperature °C 80 80
Min Central Heating Flow Temperature °C 30 30
General Specifications
Max lift weight kg 33.6 39.6
Total water capacity Ltr 1.8 3.1
Integral expansion vessel capacity Ltr 8 8
Maximum heating system water content using fitted expansion vessel, @ 0.75 bar Ltr 84 84
Electrical supply 240V 50Hz Fuse at 3A
Internal fuse T4H 4A 250V
Maximum power consumption W 100 125
IP Rating IPX4 IPX4
Flue gas temperature 80/60 °C 59 75
Flue gas temperature 50/30 °C 41 55
CO
2
value max rate (Nat Gas) (Case must be fitted when taking reading) % 8.8-9.2 8.8-9.2
CO
2
value min rate (Nat Gas) (Case must be fitted when taking reading) % 8.5-8.9 8.7-9.1
CO value max rate (Nat Gas) (Case must be fitted when taking reading) P.P.M 15-60 15-60
CO value min rate (Nat Gas) (Case must be fitted when taking reading) P.P.M 0-40 0-40
CO
2
value max rate (Propane) (Case must be fitted when taking reading) % 10.8-11.2 10.5-10.9
CO
2
value min rate (Propane) (Case must be fitted when taking reading) % 10.4-10.8 10.3-10.7
CO value max rate (Propane) (Case must be fitted when taking reading) P.P.M 80-160 80-160
CO value min rate (Propane) (Case must be fitted when taking reading) P.P.M 0-40 0-40
Gas Pressure - Natural Gas mbar 18-20 18-20
Gas Pressure - Propane mbar 37 37
Connections
Gas 22 mm compression
CH flow 22 mm compression
CH return 22 mm compression
Pressure relief valve outlet 15 mm compression
Condensate Drain 21.5 - 22 mm plastic overflow pipe
P.P.M = Parts Per Million
