GLK Flex Gear - Goldwing 1800 before 2017 Y

Sliding bracket
Goldwing 1800 before 2017y
12
Middle bracket
Mount Bracket
ⓐ
ⓑ
ⓓ
ⓒ
ⓕ
ⓔ

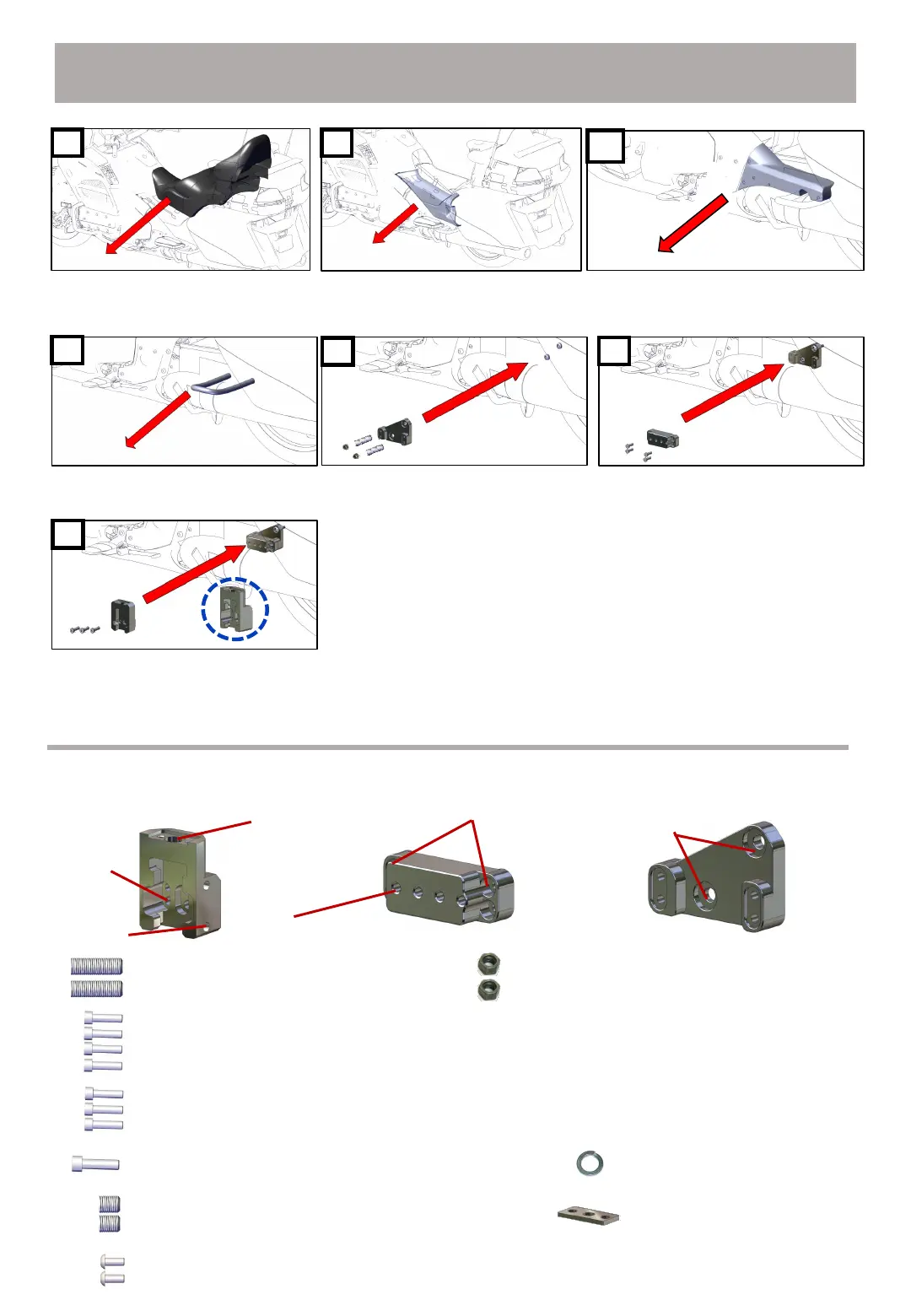

Remove the seat of the motorcycle.
Remove the appropriate cover from the motorcycle.
Remove the motorcycle's
bumper.
Connect the ‘mount bracket’ using
‘bolt A’ and ‘nut’ to the bumper
position.
Connect the ‘middle bracket’ to the
‘mount bracket’ using ‘bolt B’.
Connect the ‘sliding bracket’ to the ‘middle
bracket’ using ‘bolt C’.Position the wrench bolt
hole of the ‘sliding bracket’ toward the front of the
motorcycle.
Bolt A: M8 40mm headless bolt + M8 Nut
Bolt B: M8 30mm / hex socket head bolt
Bolt C: M8 35mm / hex socket head bolt
Bolt D: M10 55mm / hex socket head bolt +
Bolt E: M10 10mm hairless wrench bolt +
Bolt F: M6 10mm round head bolt
Bracket cover
Spring washer
1
2
3
4
6
7
5
Bracket parts
※ Bracket modeling is subject to change due to design modification.
※ Bracket bolt dimensions are subject to change due to modeling
modifications.
