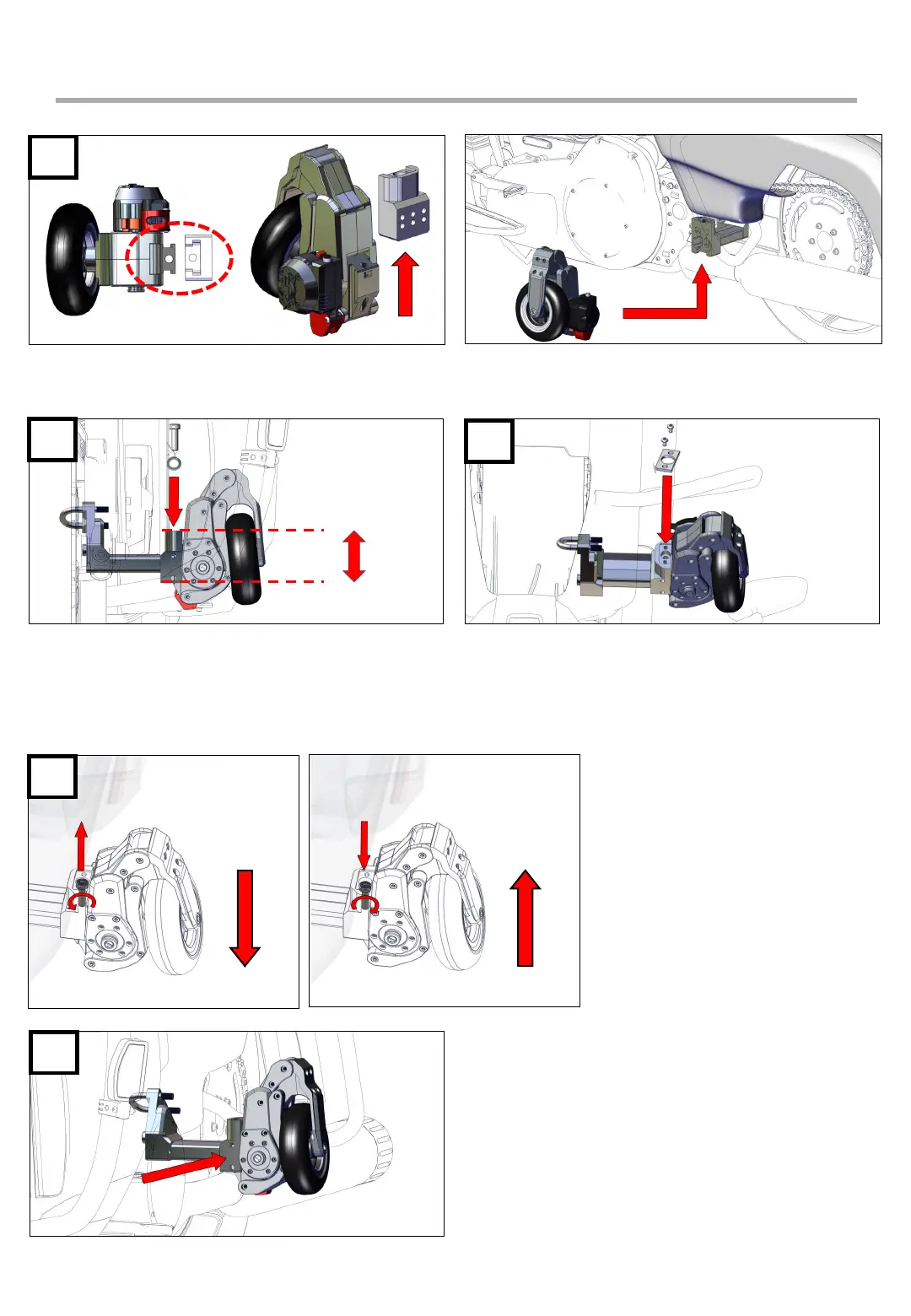

Insert the FLEX GEAR into the slot of the sliding bracket and fasten it.
Push up the fastened FLEX GEAR along the sliding bracket.
1
After raising the FLEX GEAR to the top of the
sliding bracket, insert the ‘Spring washer’ into
the hole of the sliding bracket, and then use
the ‘M10 55mm’ bolt to connect the FLEX
GEAR to the bracket.
After adjusting the height, use the ‘M10
10mm’ bolt to fix the installation position of
the FLEX GEAR.
Assemble the ‘Bracket cover’ using ‘M6
10mm’ bolts.
2
5
3
4
Adjust the height of the FLEX GEAR using
the ‘M10 55mm’ bolt.
Recommendation:
It is recommended to lower the FLEX
GEAR while the driver is riding and set it so
that both wheels touch the ground.
