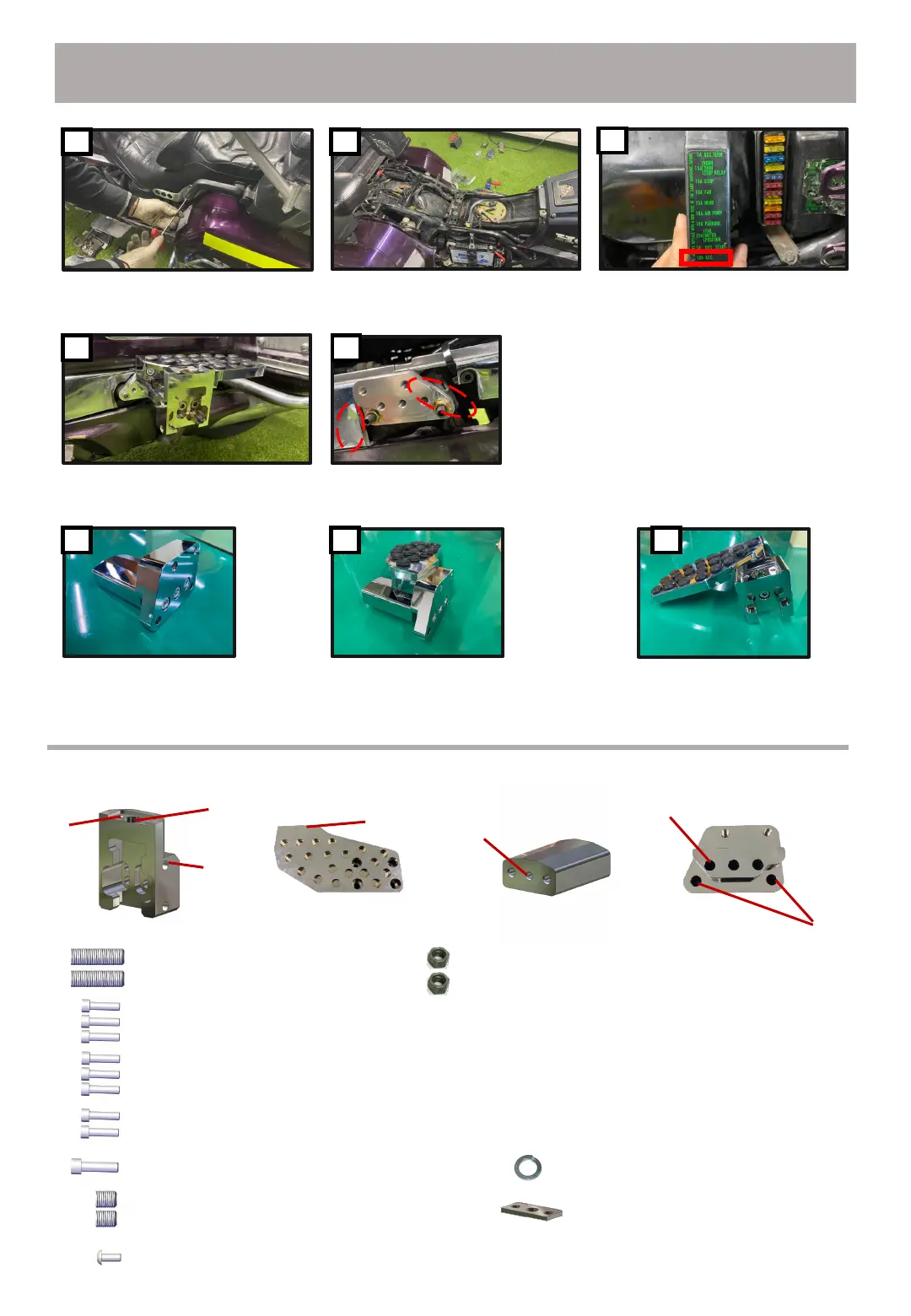

Sliding bracket
Middle bracket Mount bracket
Bolt A: M8 40mm set screw +
Bolt B: M8 35mm / hex socket head bolt
Bolt C: M8 25mm / hex socket head bolt
Bolt E: M10 55mm / hex socket head bolt +
Bolt F: M10 10mm hairless wrench bolt +
Bolt G: M6 10mm round head bolt
Bracket cover
Spring washer
13
ⓐ
ⓑ
ⓒ
ⓕ
ⓔ
ⓓ
ⓖ
M8 nut
Bolt D: M8 35mm / hex socket head bolt
Foot stand bracket
Remove the seat, cover, footrest, etc. Connect the blue wire of the switch to ACC of the motorcycle,
The switch is fixed to the handle grip.
(Fix it to the left or right.)
Fix the bracket as shown in the picture.(The bracket in the photo
may differ from the actual bracket)
There is interference in the part marked in red, so I
cut it with a grinder
Bracket parts
Fix the mount bracket and the intermediate bracket using bolt “B”. Then, use
bolt “A” to secure it to the motorcycle.
Fasten the footrest
bracket with bolt
“D”.
Secure the slide bracket using bolt “C”.
※ Bracket modeling is subject to change due to design modification.
※ Bracket bolt dimensions are subject to change due to modeling
modifications.
