DISPLAY
SIM CARD CONNECTOR
JUNO-NET MOTHERBOARD (BACK VIEW)
MAINTENANCE JUNO-NET
2.2 SIM CARD REPLACEMENT
This procedure is required when a software upgrade is supplied on a SIM CARD. The original SIM CARD
also holds all the system configuration (settings) so this data must first be uploaded to a PC in order that it
can be downloaded into the new SIM CARD once it has been fitted.
In some cases the replacement SIM CARD will have been pre-programmed with the site configuration. In
this case it is not necessary to upload the configuration from the original SIM CARD.
The procedure assumes that the fascia panel is swung open and that power has been removed from the
panel.
WARNING
ENSURE THAT THE POWER IS TURNED OFF

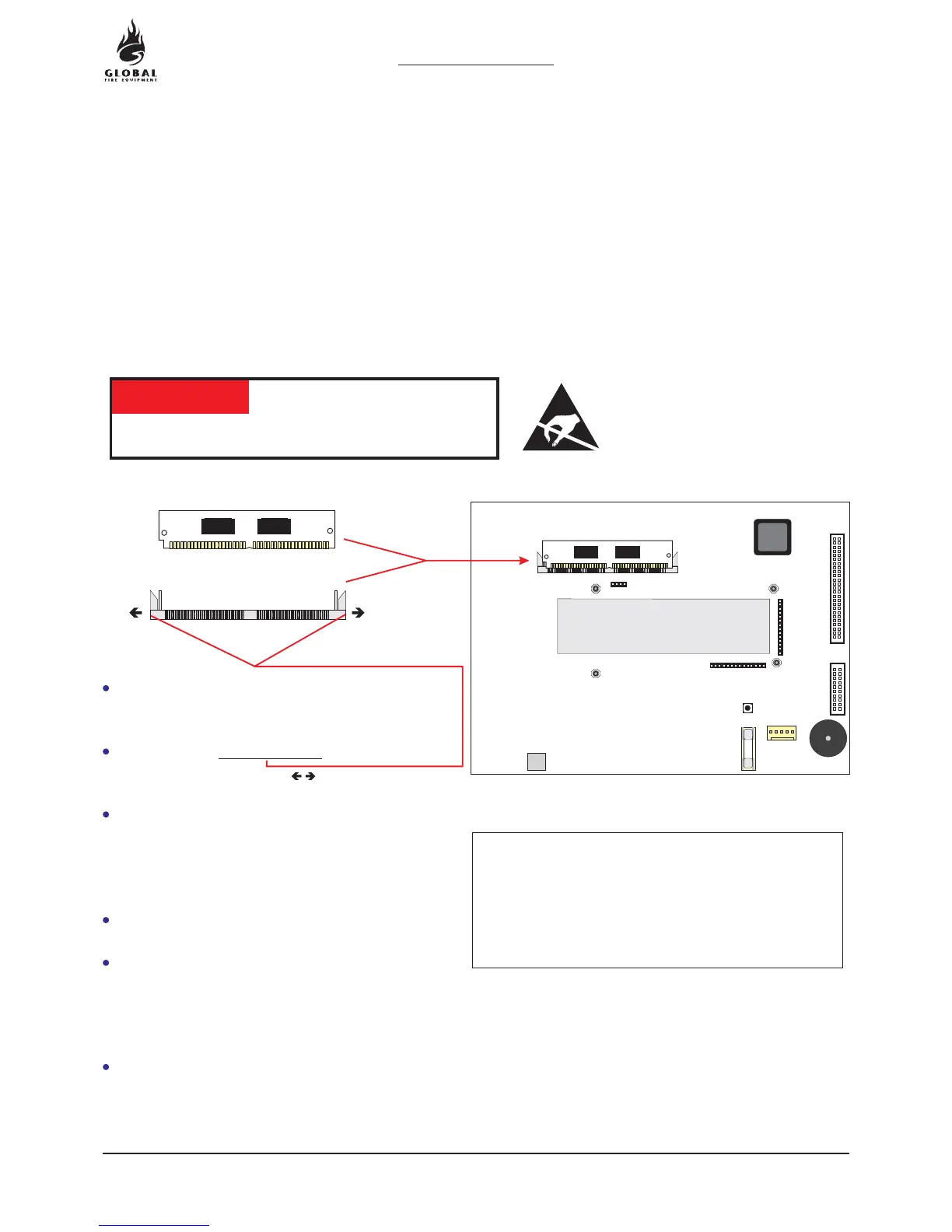

SIM CARD
The SIM CARD is mounted on the back of the
main board.
Release the by pulling in the
direction of the arrows ( ).
With the retaining clips held in the released
position, push the SIM CARD forward and
down until it is almost horizontal with the main
panel board.
Lift the SIM CARD off the connector.
To install the replacement SIM CARD, locate it
on the connector almost horizontally with the
main panel board, push it up and back gently
until the retaining clips snap into position.
Download the panel configuration from the
PC.
retaining clips
Uploading and downloading requires a special
adapter board, lead and PC software.
Instructions on how to perform the upload and
download will be supplied with the PC software.
ELECTRO-STATIC SENSITIVE DEVICES (ESD)
TAKE SUITABLE ESD PRECAUTIONS WHEN
REMOVING OR INSTALLING PRINTED
CIRCUIT BOARDS.
16
OPERATION & MAINTENANCE MANUAL
REVISION 0.7a
16-04-2004
