USER’S MANUAL
SYSTEM/VECTOR
CHAPTER 7
7. CONTROLS
7.1. POSITIONING THE VECTOR
The manual engage/disengage
lever on the horizontal body inside
the notched plate is used to secure
the Vector in the best position for
pulling.
Positioning is then performed by

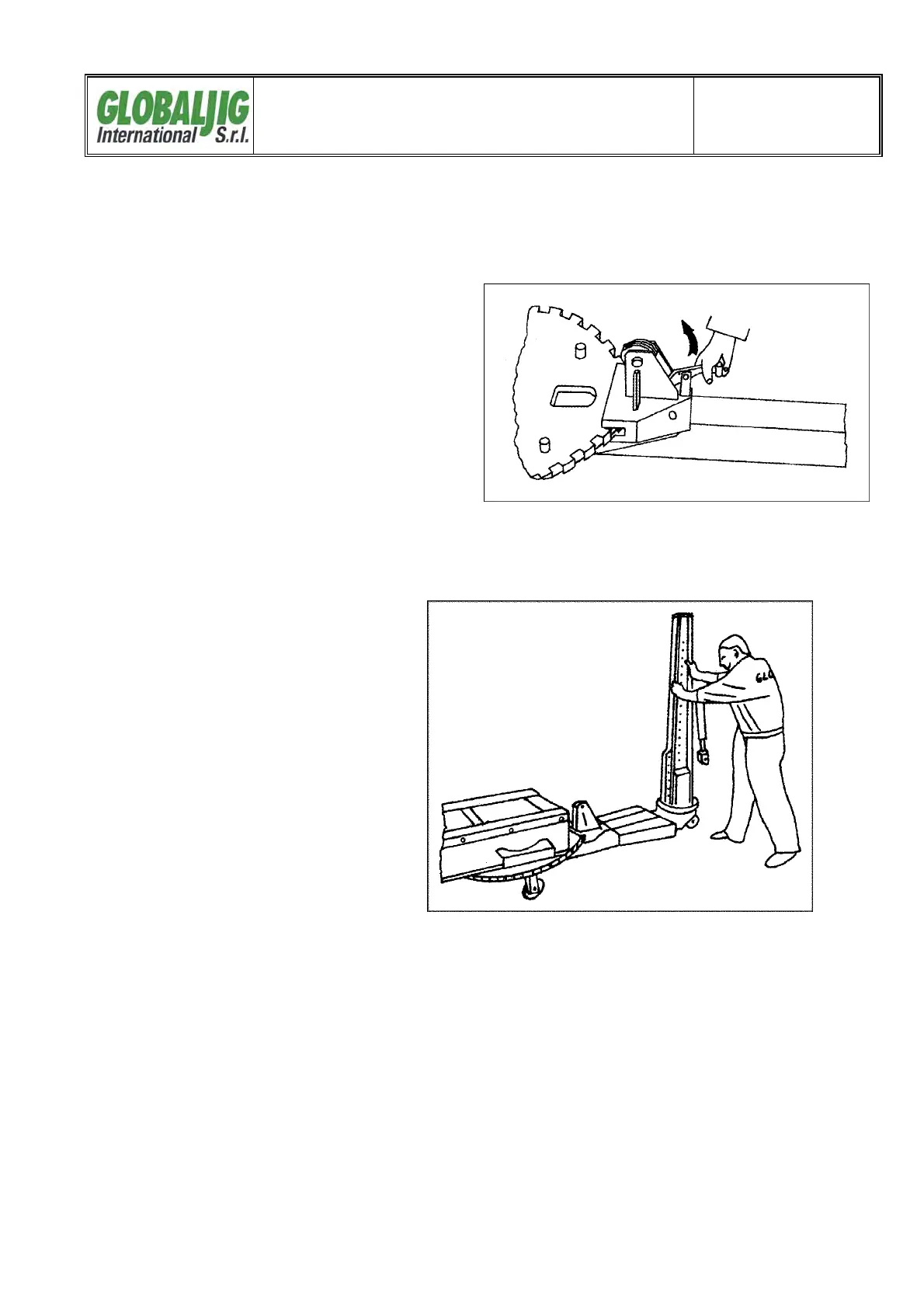

moving the lever as shown in
fig. 07 - 01.
Lever up: the Vector can be set in the best pulling position, pushing the
vertical body by hand as shown in fig. 07 - 02.
7.2. OPERATING THE HYDRAULIC CYLINDER
The device that controls the hydraulic cylinder is made up of either a manual
or a pneumatic pump.
In both cases, the controls let the Operator move and operate from a Safe
position.
