USER’S MANUAL
SYSTEM/VECTOR
CHAPTER 6
6. START-UP

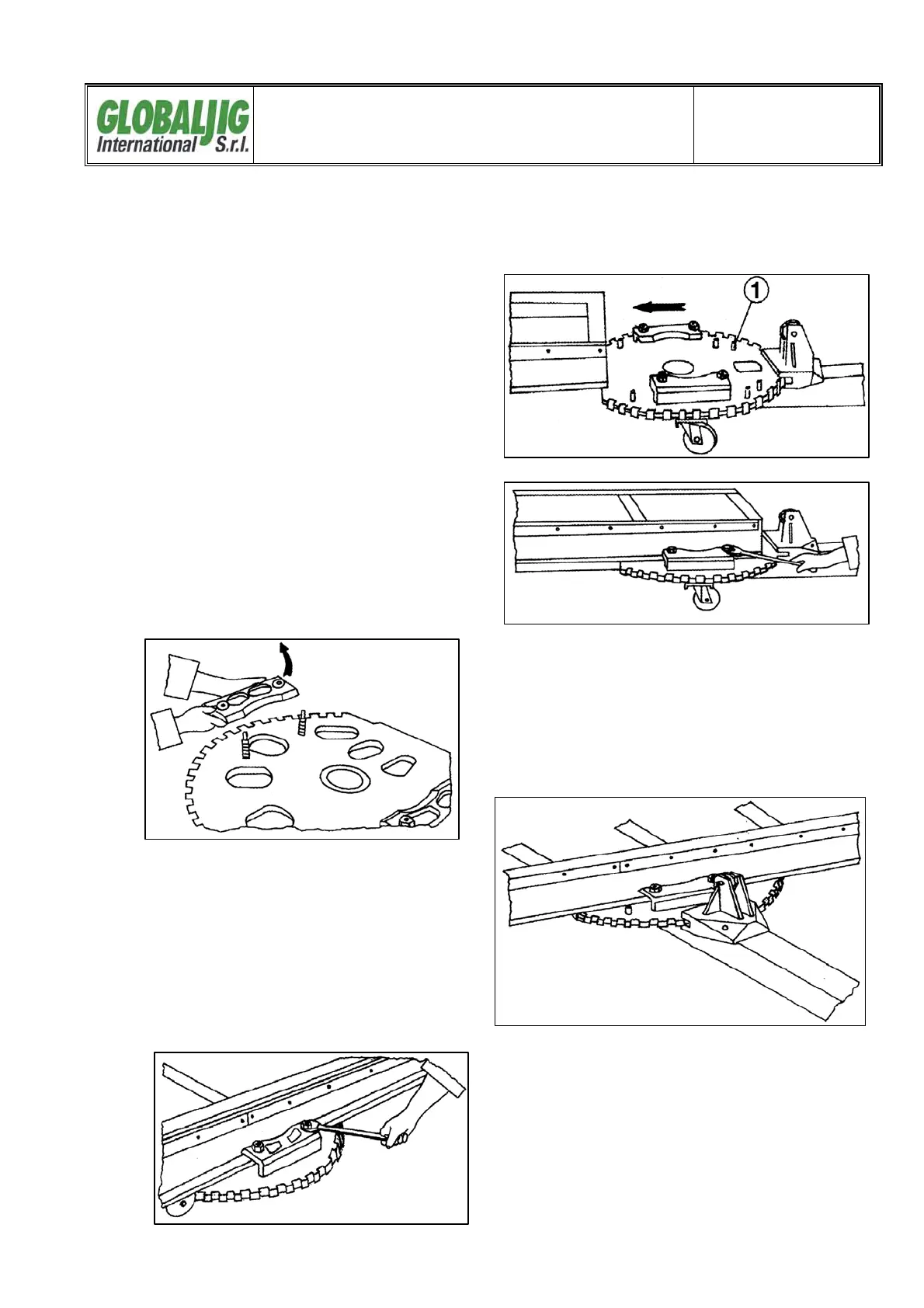

6.1. COUPLING TO THE BENCH
The vector can be inserted and
secured to the Bench from both the
front and side.
The vector is pushed in from the
front, rolling on the three wheels,
until it enters the profile of the
Bench and is flush with the two
pins as shown in fig. 06 - 01
Then the two side brackets are
locked in place one at a time and the
nuts are tightened all the way with
the 36 mm wrench as shown in fig.
06 - 02.
To insert the vector from the side,
one of the brackets and its screws
must be removed so that the
notched wheel can pass under the
Bench.
(fig. 06 - 03).
Push the Vector under the Bench
until it is flush with the other
bracket which was not removed
(fig. 06-04)
Then, on the opposite side, install the
two screws with their springs and the
bracket which was previously removed.
Tighten the nuts on the brackets all the
way.
(fig. 06 - 05).
